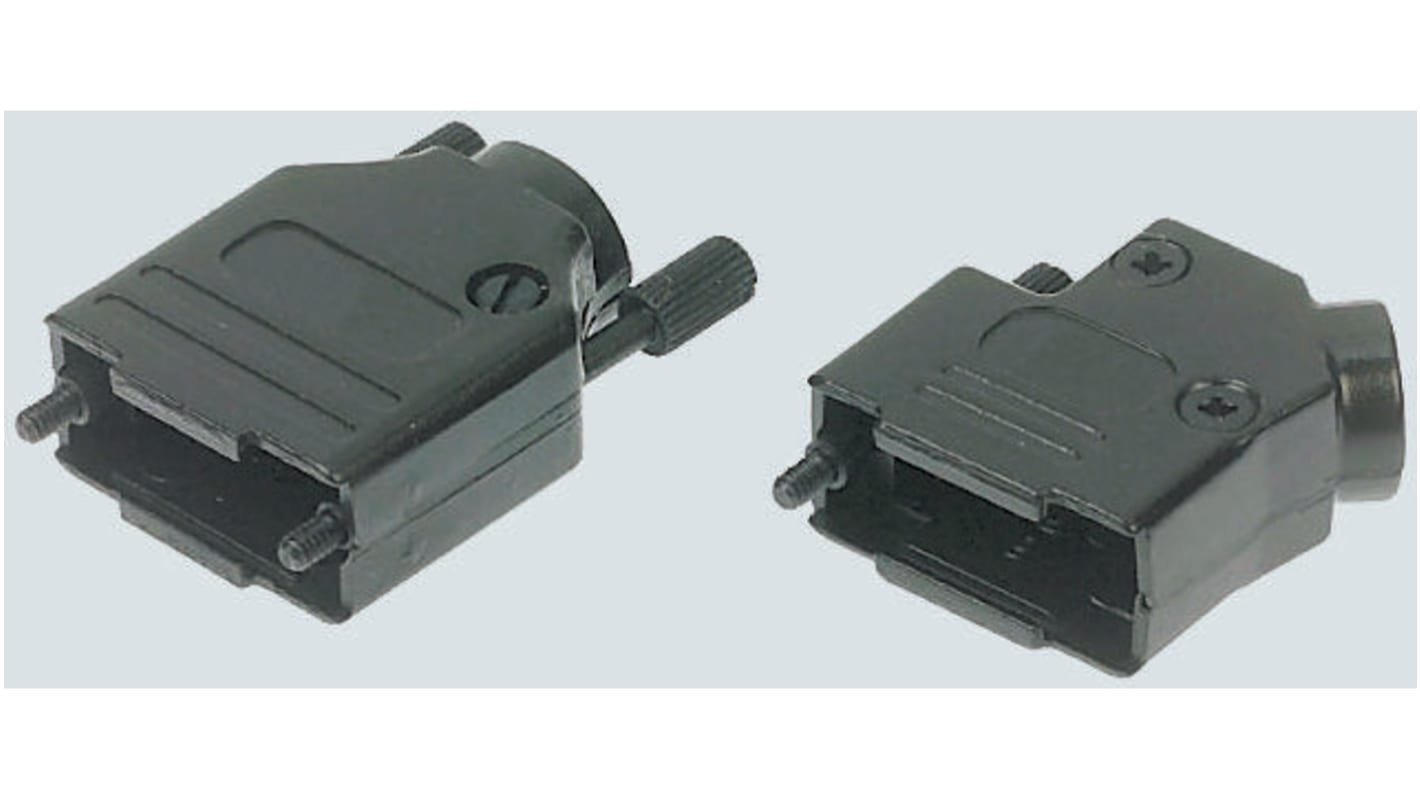

MH Connectors, MHD45PPK ABS Angled D-sub Connector Backshell, 25 Way, Strain Relief

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Top And 45° Entry Hoods

Plastic hoods for D connectors, complete with quick assembly strain relief grommets and full metal jack screws.

Fits most types of D connectors, including IDC
Cable diameter 4-12mm
Material UL 94-VØ Halogen free ABS

Note

For dimensions see Top and 45° entry shielded diecast 'D' hoods.

Specifications
Attribute Value
Number of Contacts 25
D-Sub Shell Size B
Housing Material ABS
Body Orientation Angled
Colour Black
Strain Relief Yes
Series MHD45PPK
146300 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.824
(exc. VAT)
£ 0.989
(inc. VAT)
Units
Per unit
Per Pack*
5 - 45
£0.824
£4.12
50 - 95
£0.70
£3.50
100 - 245
£0.618
£3.09
250 - 495
£0.536
£2.68
500 +
£0.494
£2.47
*price indicative
