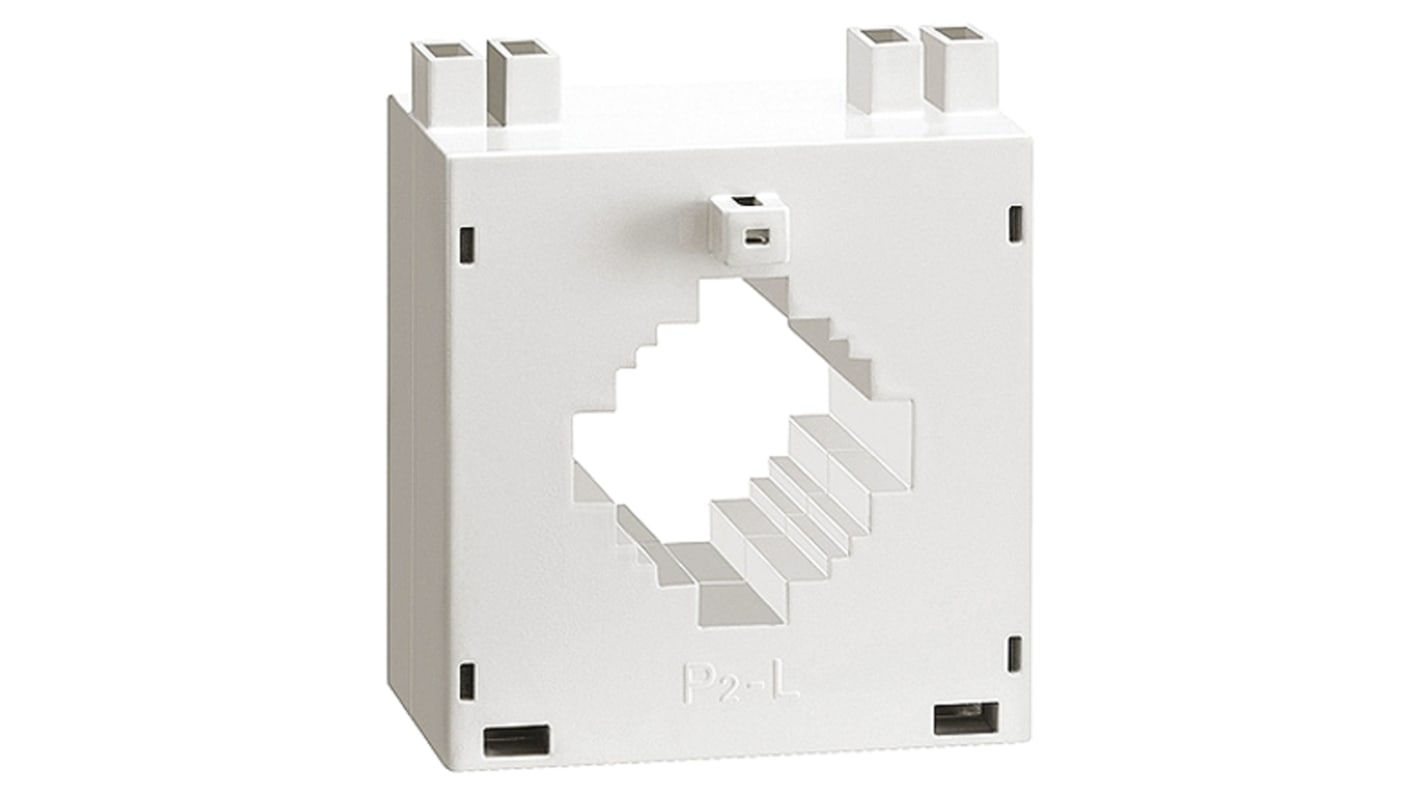

Lovato DM Series Base Mounted Current Transformer, 1000:5, 30mm Bore
- RS Stock No.:
- 833-2774
- Mfr. Part No.:
- DM3T1000
- Brand:
- Lovato
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 833-2774
- Mfr. Part No.:
- DM3T1000
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Current Ratio | 1000:5 | |
| Bore Size | 30mm | |
| Transformer Type | Base Mounted | |
| Overall Height | 81.5mm | |
| Overall Width | 71mm | |
| Overall Depth | 62.5mm | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +50°C | |
| Series | DM | |
| Mounting Type | Base Mounted | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Current Ratio 1000:5 | ||
Bore Size 30mm | ||
Transformer Type Base Mounted | ||
Overall Height 81.5mm | ||
Overall Width 71mm | ||
Overall Depth 62.5mm | ||
Minimum Temperature -25°C | ||
Maximum Temperature +50°C | ||
Series DM | ||
Mounting Type Base Mounted | ||
Priced to Clear Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Lovato DM Series - Current Transformer, Output 5 A
The DM series current transformers are installed in electric installations to reduce the line current to a secondary value of 5 A, which is compatible with current inputs of digital multimeters or protection relays.
These are without primary winding and are used for high primary current values from 50 A upward.
The number of loops of the primary cable does not modify the accuracy but converts the primary current value proportional to secondary current.
These are without primary winding and are used for high primary current values from 50 A upward.
The number of loops of the primary cable does not modify the accuracy but converts the primary current value proportional to secondary current.
Secundary output current 5 A
Operating frequenz is 50-60 Hz
The terminals are:
- Faston for DM2T and DM3T types
- Screw for DM0T and DM4T types
IP30 protection
Base mounting or DIN rail mounting with the supplied fixing element
