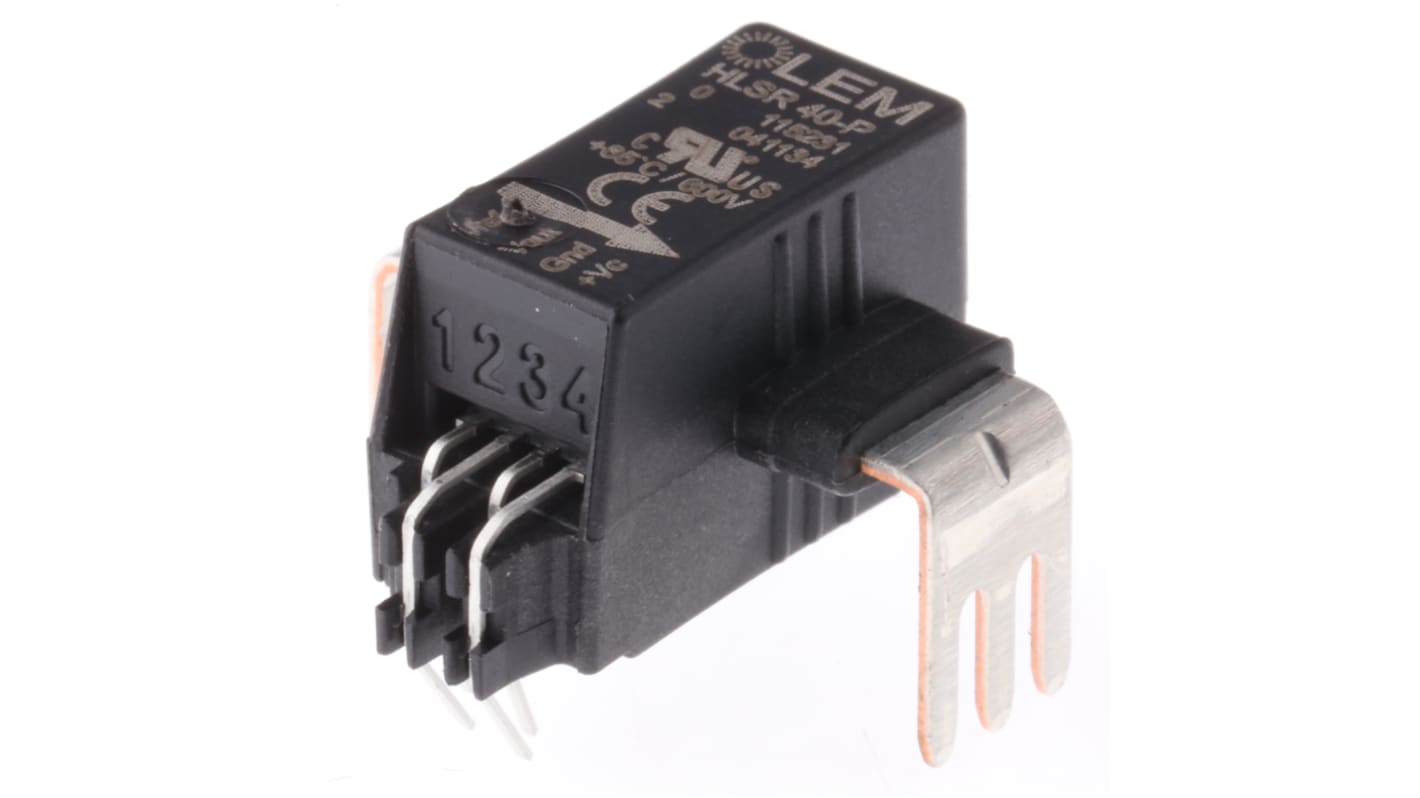

LEM HLSR Series Current Transformer, 100A Input, 100:1, 40 A Output, 4.5 → 5.5 V
- RS Stock No.:
- 793-4590
- Mfr. Part No.:
- HLSR 40-P
- Brand:
- LEM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 793-4590
- Mfr. Part No.:
- HLSR 40-P
- Brand:
- LEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LEM | |
| Current Ratio | 100:1 | |
| Series | HLSR | |
| Sensor Technology | Open Loop | |
| Supply Voltage | 4.5 → 5.5 V | |
| Input Current | 100A | |
| Output Current | 40 A | |
| Overall Height | 12mm | |
| Overall Width | 17.2mm | |
| Overall Depth | 31mm | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +105°C | |
| Mounting Type | PCB Mount | |
Select all | ||
|---|---|---|
Brand LEM | ||
Current Ratio 100:1 | ||
Series HLSR | ||
Sensor Technology Open Loop | ||
Supply Voltage 4.5 → 5.5 V | ||
Input Current 100A | ||
Output Current 40 A | ||
Overall Height 12mm | ||
Overall Width 17.2mm | ||
Overall Depth 31mm | ||
Minimum Temperature -40°C | ||
Maximum Temperature +105°C | ||
Mounting Type PCB Mount | ||
- COO (Country of Origin):
- CH
HLSR Series
A wide range of open loop current transducers for the electronic measurement of current dc, ac, pulsed... with galvanic separation between the primary and the secondary circuit.
Low power consumption
Voltage output
Compact design for through-hole PCB mounting
Factory calibrated
Single supply + 5 V
Low foot-print
Low offset drift
Suitable for industrial applications
Voltage output
Compact design for through-hole PCB mounting
Factory calibrated
Single supply + 5 V
Low foot-print
Low offset drift
Suitable for industrial applications
