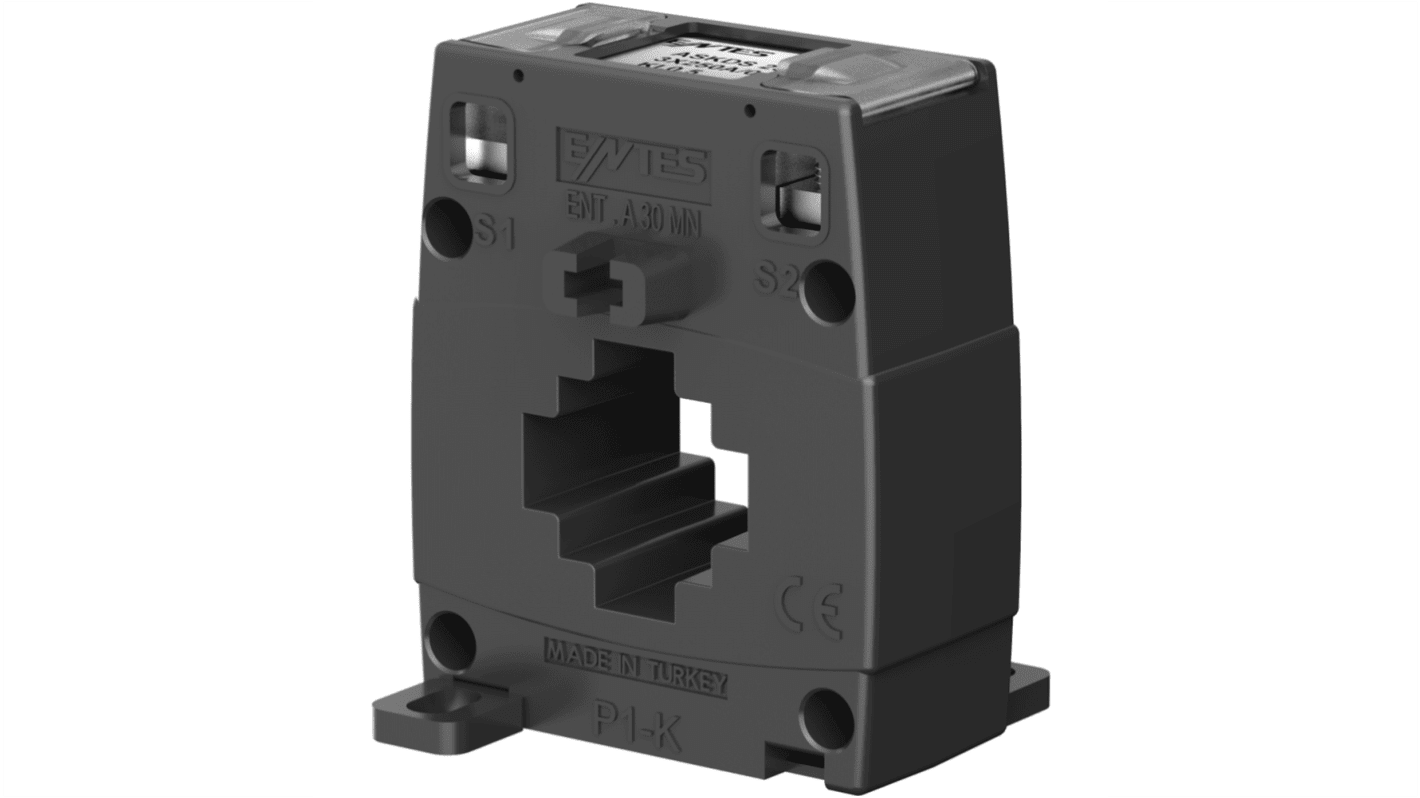

ENTES ENT.A30MN Series Base Mounted Current Transformer, 75A Input, 75:1, 1 A Output, 30 x 10mm Bore, 720 V
- RS Stock No.:
- 628-963
- Mfr. Part No.:
- ENT.A30MN 75/1
- Brand:
- ENTES
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 628-963
- Mfr. Part No.:
- ENT.A30MN 75/1
- Brand:
- ENTES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ENTES | |
| Current Ratio | 75:1 | |
| Bore Size | 30 x 10mm | |
| Series | ENT.A30MN | |
| Transformer Type | Base Mounted | |
| Sensor Technology | Current Transformer | |
| Supply Voltage | 720 V | |
| Input Current | 75A | |
| Output Current | 1 A | |
| Mounting Type | Surface Mount | |
Select all | ||
|---|---|---|
Brand ENTES | ||
Current Ratio 75:1 | ||
Bore Size 30 x 10mm | ||
Series ENT.A30MN | ||
Transformer Type Base Mounted | ||
Sensor Technology Current Transformer | ||
Supply Voltage 720 V | ||
Input Current 75A | ||
Output Current 1 A | ||
Mounting Type Surface Mount | ||
- COO (Country of Origin):
- TR
The ENTES Current transformers comply with TS EN 61869-2 and IEC 61869-2 standards, with a maximum operating voltage of 720V and an operating temperature range of -5°C to +40°C. The secondary terminals are made of nickel-plated brass with M5 screws, and the recommended tightening torque is 2Nm.
Protection class is IP20
Usage type is Building and Indoor
Usage type is Building and Indoor
