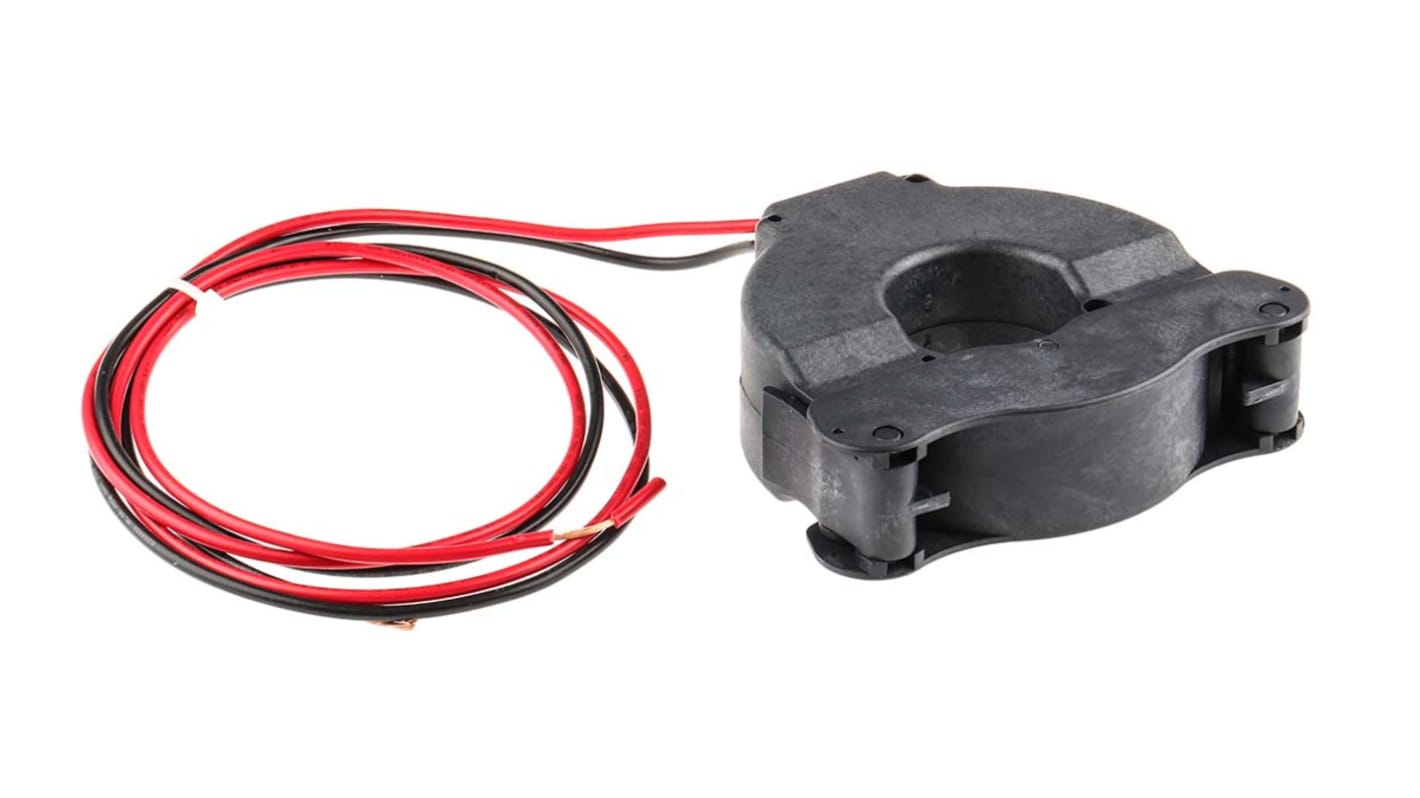

HOBUT CTSCM Series Clip Fit Current Transformer, 400A Input, 400:5, 5 A Output
- RS Stock No.:
- 331-604
- Mfr. Part No.:
- CTSCM40400/5-5/1
- Brand:
- HOBUT
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£38.25
(exc. VAT)
£45.90
(inc. VAT)
- RS Stock No.:
- 331-604
- Mfr. Part No.:
- CTSCM40400/5-5/1
- Brand:
- HOBUT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HOBUT | |
| Current Ratio | 400:5 | |
| Series | CTSCM | |
| Transformer Type | Clip Fit | |
| Input Current | 400A | |
| Output Current | 5 A | |
| Overall Height | 116mm | |
| Overall Width | 104.5mm | |
| Overall Depth | 35.5mm | |
| Minimum Temperature | -30°C | |
| Maximum Temperature | +80°C | |
| Mounting Type | Clip Fit | |
| Select all | ||
|---|---|---|
Brand HOBUT | ||
Current Ratio 400:5 | ||
Series CTSCM | ||
Transformer Type Clip Fit | ||
Input Current 400A | ||
Output Current 5 A | ||
Overall Height 116mm | ||
Overall Width 104.5mm | ||
Overall Depth 35.5mm | ||
Minimum Temperature -30°C | ||
Maximum Temperature +80°C | ||
Mounting Type Clip Fit | ||
- COO (Country of Origin):
- GB
HOBUT Split-Core Current Transformer
The HOBUT split-core current transformer has a unique clip-together feature enabling high-speed permanent installation and suitable for primary currents from 100A to 800A. It is for installation into existing networks without the need to disconnect cable circuits or busbars. The inbuilt plug-in short circuit link allows the CT to be installed in complete safety. The CT will not operate until the plug-in link is removed. The system rated voltage ranges between 0.72kV and 3kV and a current ratio of 400:5.
Supplied with:
Moulded case with 1m flying lead.
Supplied with:
Moulded case with 1m flying lead.
Features and Benefits
Clip-fit
Continuous current: 1.2 x rated current
Frequency ranges between 50Hz and 60Hz
Insulation rating is 3kV for 1 minute
It is supplied with moulded case with 1m flying lead
Operating temperature ranges between -30°C and 85°C
Overall width of 116mm, depth of 36mm and height is 114mm
Continuous current: 1.2 x rated current
Frequency ranges between 50Hz and 60Hz
Insulation rating is 3kV for 1 minute
It is supplied with moulded case with 1m flying lead
Operating temperature ranges between -30°C and 85°C
Overall width of 116mm, depth of 36mm and height is 114mm
Certifications
CE certified
UL94VO approved
IEC185
BS 7626
BSEN 60044-1
IEC 60044-1
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL94VO approved
IEC185
BS 7626
BSEN 60044-1
IEC 60044-1
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
