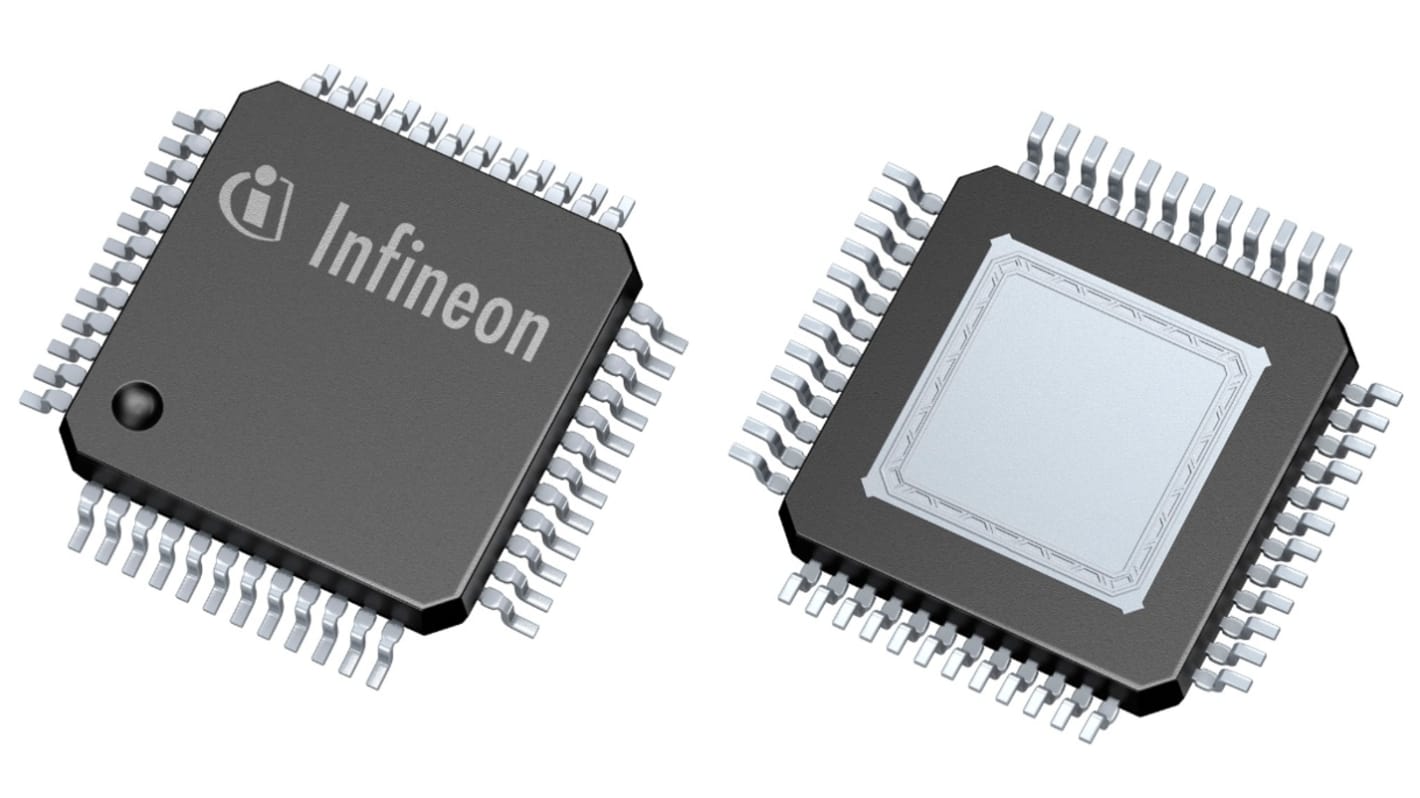

Infineon, Current Sensor 48-Pin, PG-TQFP-48
- RS Stock No.:
- 225-0585
- Mfr. Part No.:
- TLE9241QUXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 2500 units)*
£7,940.00
(exc. VAT)
£9,527.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £3.176 | £7,940.00 |
*price indicative
- RS Stock No.:
- 225-0585
- Mfr. Part No.:
- TLE9241QUXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Current Sensor | |
| Quiescent Current | 0.01mA | |
| Package Type | PG-TQFP-48 | |
| Bandwidth | 5kHz | |
| Current Rating | 16.8 mA | |
| Pin Count | 48 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 9mm | |
| Width | 9 mm | |
| Height | 1.2mm | |
| Standards/Approvals | RoHS | |
| Series | TLE9241QU | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Current Sensor | ||
Quiescent Current 0.01mA | ||
Package Type PG-TQFP-48 | ||
Bandwidth 5kHz | ||
Current Rating 16.8 mA | ||
Pin Count 48 | ||
Mount Type Surface | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 9mm | ||
Width 9 mm | ||
Height 1.2mm | ||
Standards/Approvals RoHS | ||
Series TLE9241QU | ||
Automotive Standard AEC-Q100 | ||
The Infineon TLE9241QU is an integrated circuit (IC) for use in automatic transmission control module. It have two gate drive outputs are included for controlling a reverse polarity protected high-side switch typically used to switch off power to the control module while the module is in a sleep state and two high-side gate drive channels are also included for controlling two safety switches.
Integrated charge pump
16 bit SPI interface
Green Product
Four input interfaces for two wire hall effect speed sensors
