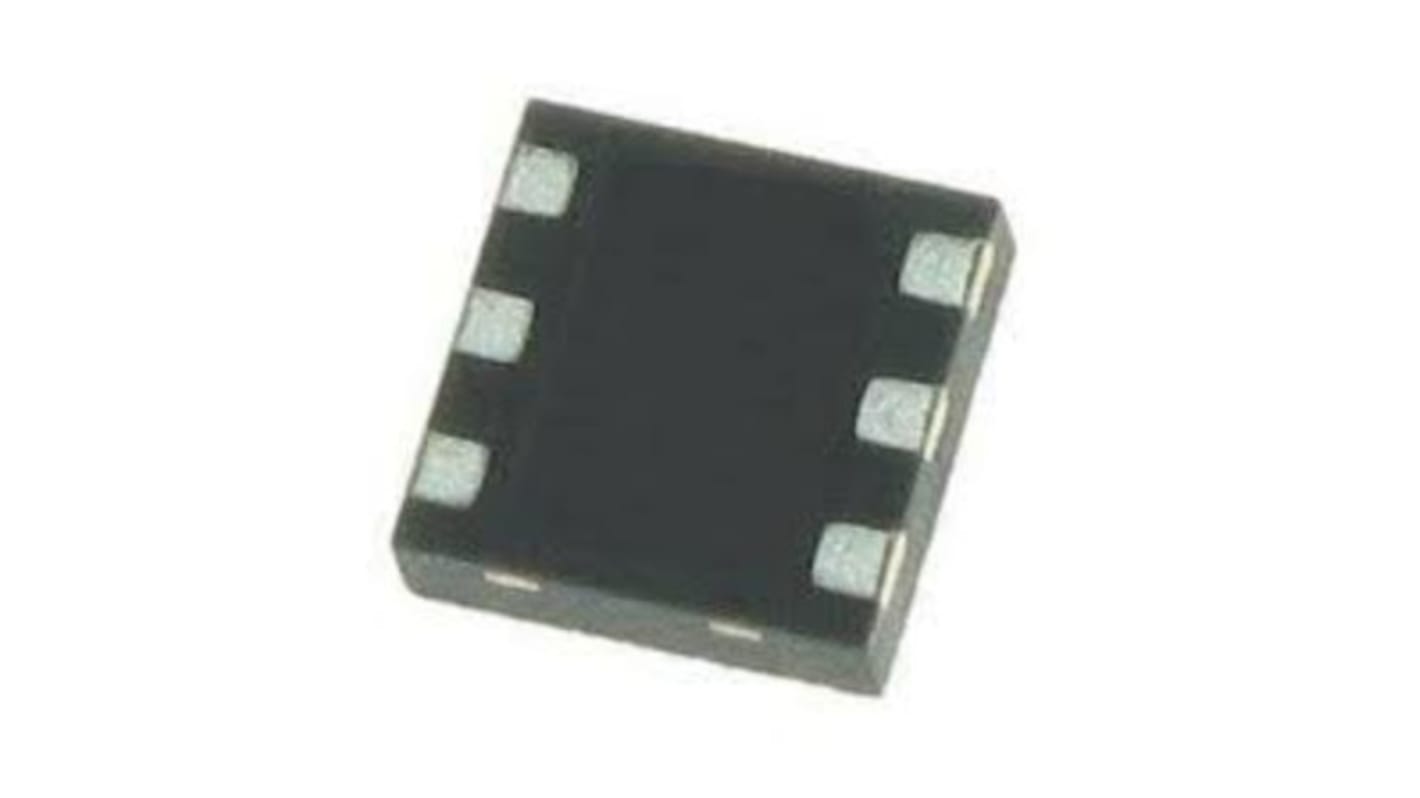

onsemi FAN4010IL6X-F113, Current Sensor IC 6-Pin, MLP
- RS Stock No.:
- 186-8810
- Mfr. Part No.:
- FAN4010IL6X-F113
- Brand:
- onsemi
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 186-8810
- Mfr. Part No.:
- FAN4010IL6X-F113
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Quiescent Current | 3.5µA | |
| Package Type | MLP | |
| Pin Count | 6 | |
| Mounting Type | Surface Mount | |
| Dimensions | 1.45 x 1 x 0.45mm | |
| Maximum Input Voltage | 6 V | |
| Minimum Input Voltage | 2 V | |
| Product Height | 0.45mm | |
| Product Length | 1.45mm | |
| Product Width | 1mm | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Quiescent Current 3.5µA | ||
Package Type MLP | ||
Pin Count 6 | ||
Mounting Type Surface Mount | ||
Dimensions 1.45 x 1 x 0.45mm | ||
Maximum Input Voltage 6 V | ||
Minimum Input Voltage 2 V | ||
Product Height 0.45mm | ||
Product Length 1.45mm | ||
Product Width 1mm | ||
Low Cost, Accurate, High-Side Current Sensing
Output Voltage Scaling
Up to 2.5 V Sense Voltage
2 V to 6 V Supply Range
2 μA Typical Of fset Current
3.5 μA Quiescent Current
-0.2% Accuracy
6-Lead MicroPak™ MLP Package
Applications
Battery Chargers
Smart Battery Packs
DC Motor Control
Over-Current Monitor
Pow er Management
Programmable Current Source
Output Voltage Scaling
Up to 2.5 V Sense Voltage
2 V to 6 V Supply Range
2 μA Typical Of fset Current
3.5 μA Quiescent Current
-0.2% Accuracy
6-Lead MicroPak™ MLP Package
Applications
Battery Chargers
Smart Battery Packs
DC Motor Control
Over-Current Monitor
Pow er Management
Programmable Current Source
