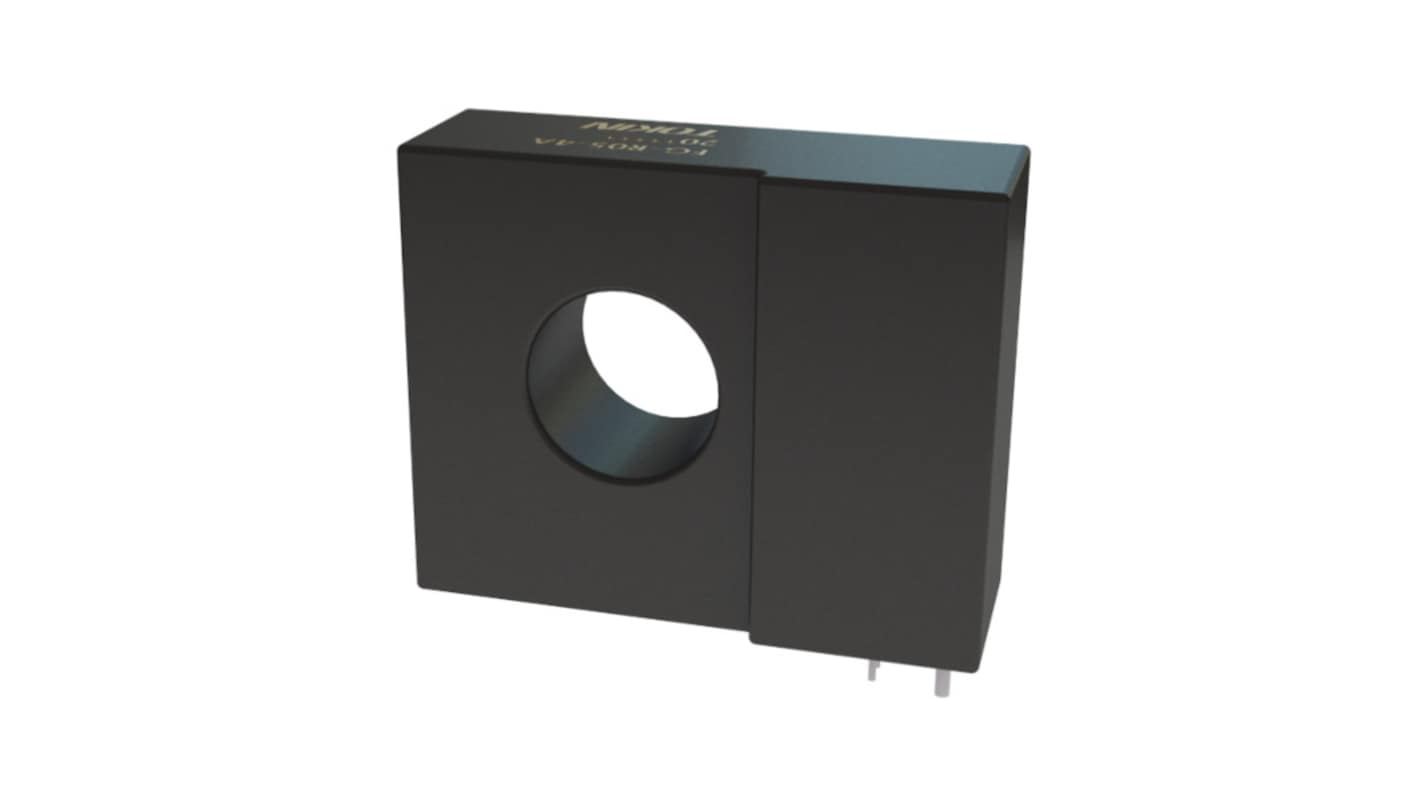

KEMET FG-R05-4GA, Current Sensor 6-Pin, FG Tray
- RS Stock No.:
- 444-552
- Mfr. Part No.:
- FG-R05-4GA
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£40.80
(exc. VAT)
£48.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.80 |
| 5 + | £39.58 |
*price indicative
- RS Stock No.:
- 444-552
- Mfr. Part No.:
- FG-R05-4GA
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Current Sensor | |
| Offset Voltage | 5 V | |
| Quiescent Current | 6mA | |
| Bandwidth | 150Hz | |
| Package Type | FG Tray | |
| Pin Count | 6 | |
| Mount Type | PCB | |
| Minimum Supply Voltage | 4.75V | |
| Maximum Supply Voltage | 5.25V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IEC 62955:20181, IEC 62752:2016/A1:2018, ASIL-B, RoHS, UL 2231-2 | |
| Series | FG-R05 | |
| Length | 38.5mm | |
| Height | 13.5mm | |
| Automotive Standard | AEC-Q | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Current Sensor | ||
Offset Voltage 5 V | ||
Quiescent Current 6mA | ||
Bandwidth 150Hz | ||
Package Type FG Tray | ||
Pin Count 6 | ||
Mount Type PCB | ||
Minimum Supply Voltage 4.75V | ||
Maximum Supply Voltage 5.25V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IEC 62955:20181, IEC 62752:2016/A1:2018, ASIL-B, RoHS, UL 2231-2 | ||
Series FG-R05 | ||
Length 38.5mm | ||
Height 13.5mm | ||
Automotive Standard AEC-Q | ||
- COO (Country of Origin):
- CN
The KEMET Flux gate based residual current sensor is a high-sensitivity AC and DC leakage current sensor with individual open drain alarms and an analog output for leakage current indication. In addition, its integrated test coil can be initiated by a test input to perform a functional alarm test.
Open-loop and fluxgate-based current sensor
PCB mounting
Digital output of fault detection
Conforms to UL 2231-2 CCID20 & CCID5
