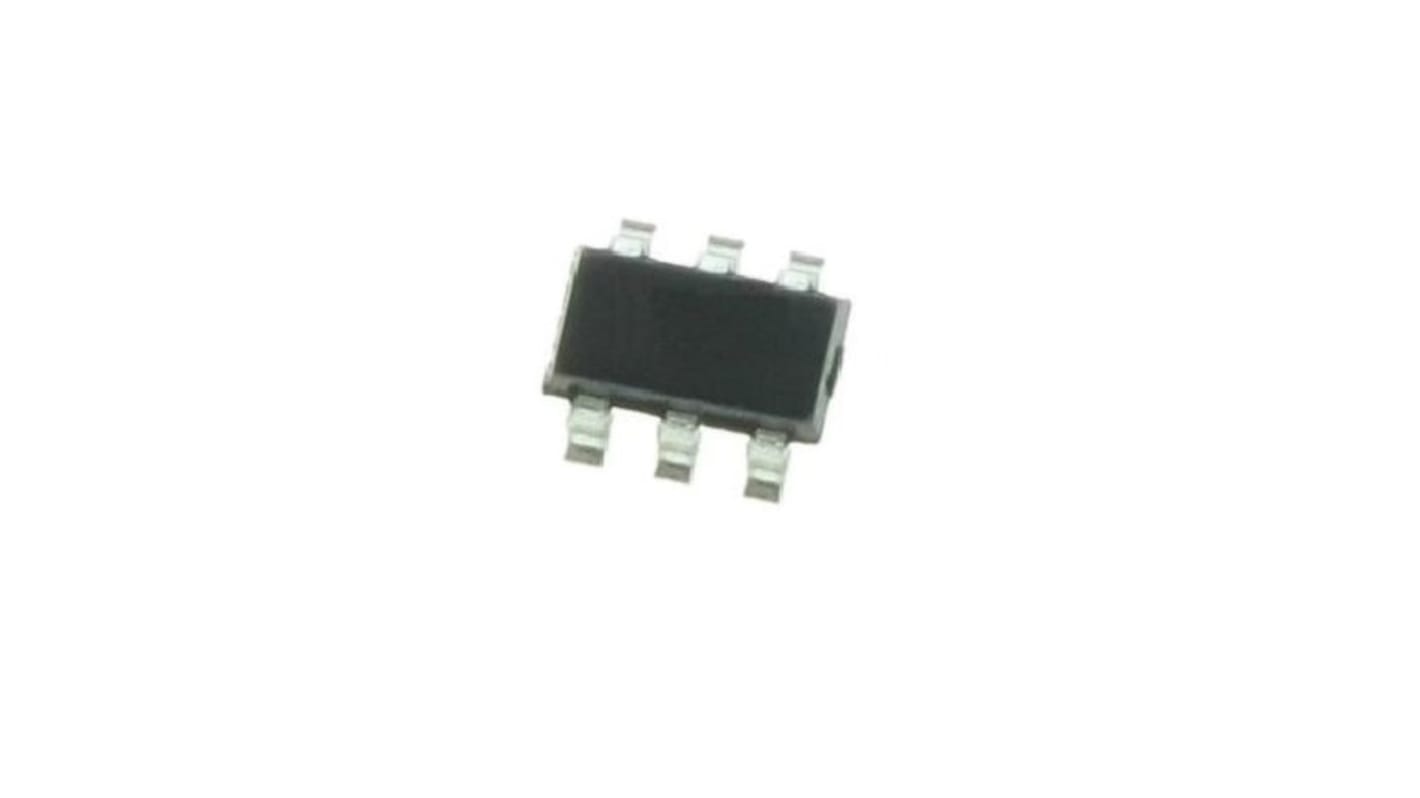

STMicroelectronics Bidirectional Current Sensing Amplifier Single 6-Pin SC-70
- RS Stock No.:
- 215-5542
- Mfr. Part No.:
- TSC210ICT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£2,721.00
(exc. VAT)
£3,264.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.907 | £2,721.00 |
*price indicative
- RS Stock No.:
- 215-5542
- Mfr. Part No.:
- TSC210ICT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Supply Type | Single | |
| Product Type | Current Sensing Amplifier | |
| Maximum Supply Voltage | 26V | |
| Minimum Supply Voltage | 2.7V | |
| CMRR - Common Mode Rejection Ratio | 105dB | |
| Number of Channels | 1 | |
| Supply Current | 5mA | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -40°C | |
| GBP - Gain Bandwidth Product | 25kHz | |
| Height | 1.1mm | |
| Standards/Approvals | No | |
| Series | TSC210 | |
| Length | 2.2mm | |
| Maximum Operating Temperature | 125°C | |
| Output Type | Bidirectional | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Supply Type Single | ||
Product Type Current Sensing Amplifier | ||
Maximum Supply Voltage 26V | ||
Minimum Supply Voltage 2.7V | ||
CMRR - Common Mode Rejection Ratio 105dB | ||
Number of Channels 1 | ||
Supply Current 5mA | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Pin Count 6 | ||
Minimum Operating Temperature -40°C | ||
GBP - Gain Bandwidth Product 25kHz | ||
Height 1.1mm | ||
Standards/Approvals No | ||
Series TSC210 | ||
Length 2.2mm | ||
Maximum Operating Temperature 125°C | ||
Output Type Bidirectional | ||
Automotive Standard No | ||
The STMicroelectronics TSC21x are current sense amplifiers that may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops. They are designed with a specific zero-drift architecture, which can achieve high precision.
Different gain available
Gain error: ±1% maximum
