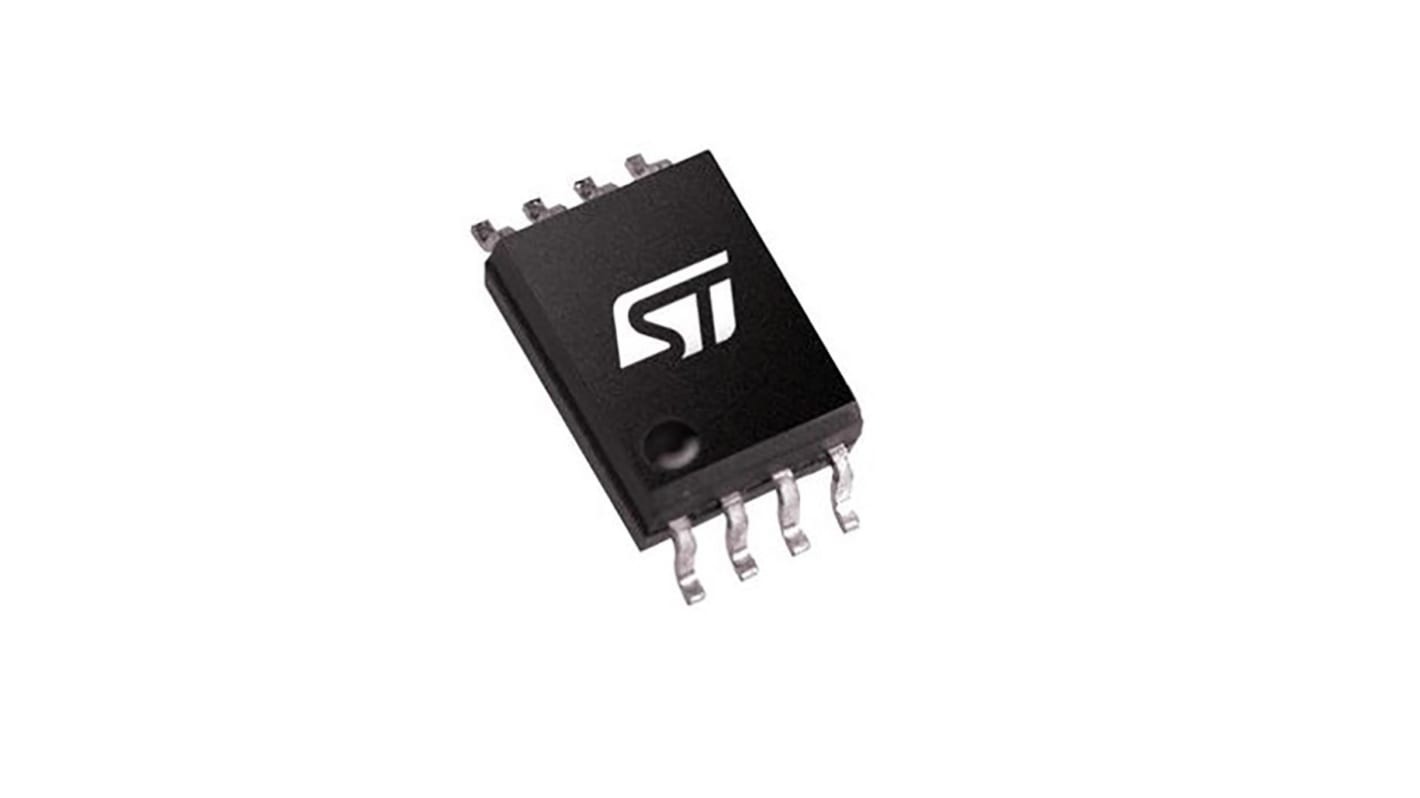

TSC2011IYST STMicroelectronics, Current Sense Amplifier Single Bidirectional 8-Pin MiniSO8
- RS Stock No.:
- 208-5083
- Mfr. Part No.:
- TSC2011IYST
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 208-5083
- Mfr. Part No.:
- TSC2011IYST
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Supply Type | Single | |
| Typical Single Supply Voltage | 2.7 → 5.5 V | |
| Minimum CMRR | 90dB | |
| Number of Channels per Chip | 1 | |
| Output Type | Bidirectional | |
| Package Type | MiniSO8 | |
| Pin Count | 8 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Supply Type Single | ||
Typical Single Supply Voltage 2.7 → 5.5 V | ||
Minimum CMRR 90dB | ||
Number of Channels per Chip 1 | ||
Output Type Bidirectional | ||
Package Type MiniSO8 | ||
Pin Count 8 | ||
The STMicroelectronics TSC2011 is a precision bidirectional current sensing amplifiers. They can sense the current thanks to a shunt resistor over a wide range of common mode voltages, from - 20 to + 70 V, whatever the supply voltage is. It is available with an amplifier gain of 60 V/V for TSC2011.They are able to sense very low drop voltages as low as 10 mV full scale minimizing the measurement error.
Gain error: 0.3% max
Offset drift: 5 μV/°C max
Quiescent current: 20 μA in shutdown mode
Offset drift: 5 μV/°C max
Quiescent current: 20 μA in shutdown mode
