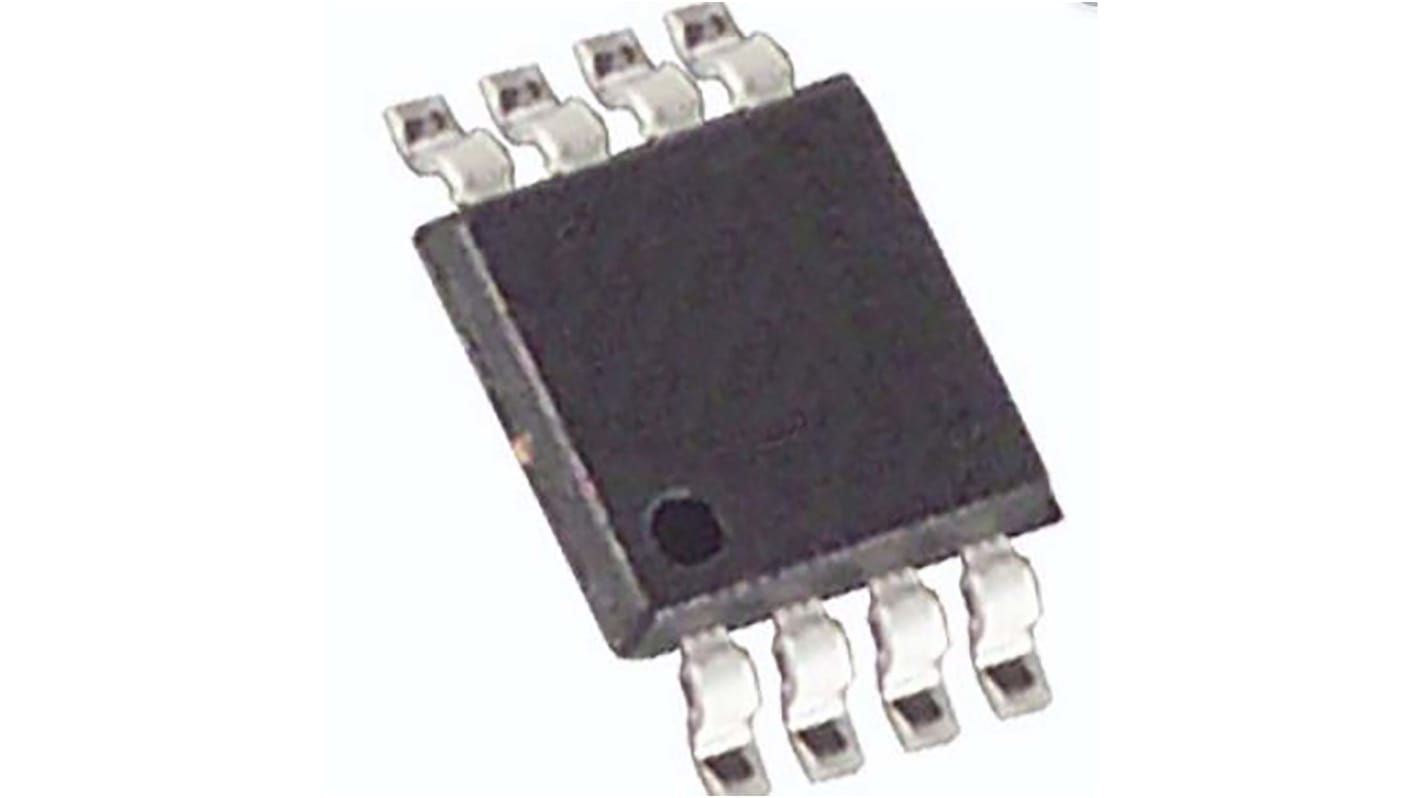

Name: MAX40056UAUA/V+ Maxim Integrated, Current Sense Amplifier Differential 8-Pin ÎMAX
Brand: Maxim Integrated
SKU: 196-8969P
Price: 3.44 GBP
Availability: LimitedAvailability

The Maxim Integrated Products' MAX40056 is a bidirectional current-sense amplifier with an input common-mode range that extends from -0.1V to +65V together with protection against negative inductive kickback voltages to -5V. This CSA is well-suited for phase current monitoring of inductive loads, such as motors and solenoids, where pulse width modulation is used to control the drive voltage and current. The MAX40056 uses an improved technique to help reject common-mode input PWM edges with slew rates up to and beyond ±500V/μs. Common mode rejection ratio (CMRR) is typically 60dB (50V, ±500V/μs input) and 140dB DC, typical.

60dB AC CMRR Rejection at 50V, ±500V/μs PWM Edges
Multiple Gain Options

10V/V, 20V/V, 50V/V
Internal, 1% Reference for Bidirectional Offset

Units	Per unit
10 - 20	£2.864
25 - 95	£2.768
100 - 245	£2.324
250 +	£2.25

Select all	Attribute	Value
	Brand	Maxim Integrated
	Typical Single Supply Voltage	5.5 v
	Minimum CMRR	100dB
	Output Type	Differential
	Package Type	ÎMAX
	Pin Count	8

	Select all
	Brand Maxim Integrated
	Typical Single Supply Voltage 5.5 v
	Minimum CMRR 100dB
	Output Type Differential
	Package Type ÎMAX
	Pin Count 8
