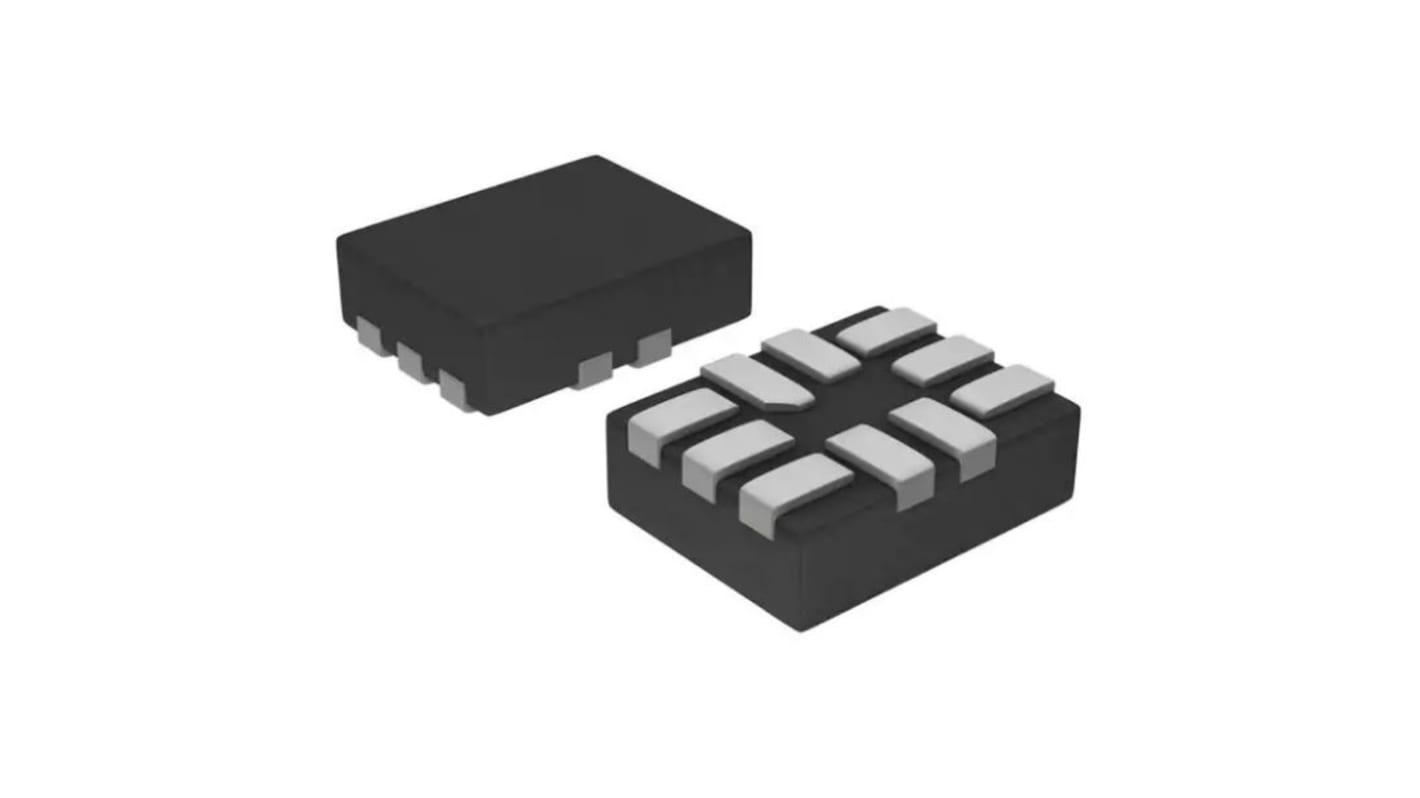

NCS210RMUTAG ON Semiconductor, Current Sense Amplifier Single Rail to Rail 10-Pin UQFN

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The NCS210R and NCV210R (AEC- Q100 qualified) are voltage output current sense amplifiers that can measure voltage across shunts at common−mode voltages from −0.3 V to 26 V, independent of supply voltage. With a fixed gain of 200 V/V, the low offset of the zero−drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full−scale.

High-side current sensing for high voltage systems
Low Ohm value current sense resistors
High accuracy over temperature leading to better power efficiency
Wide supply voltage range provides system flexibilty

Specifications
Attribute Value
Power Supply Type Single
Typical Single Supply Voltage 5 V
Minimum CMRR 105dB
Number of Channels per Chip 1
Output Type Rail to Rail
Maximum Supply Current 80 μA
Mounting Type Surface Mount
Package Type UQFN
Pin Count 10
Dimensions 1.4 x 1.8 x 0.55mm
Height 0.55mm
Length 1.4mm
Maximum Operating Supply Voltage 26 V
Minimum Operating Supply Voltage 2.2 V
Minimum Operating Temperature -40 °C
Width 1.8mm
Maximum Operating Temperature +125 °C
