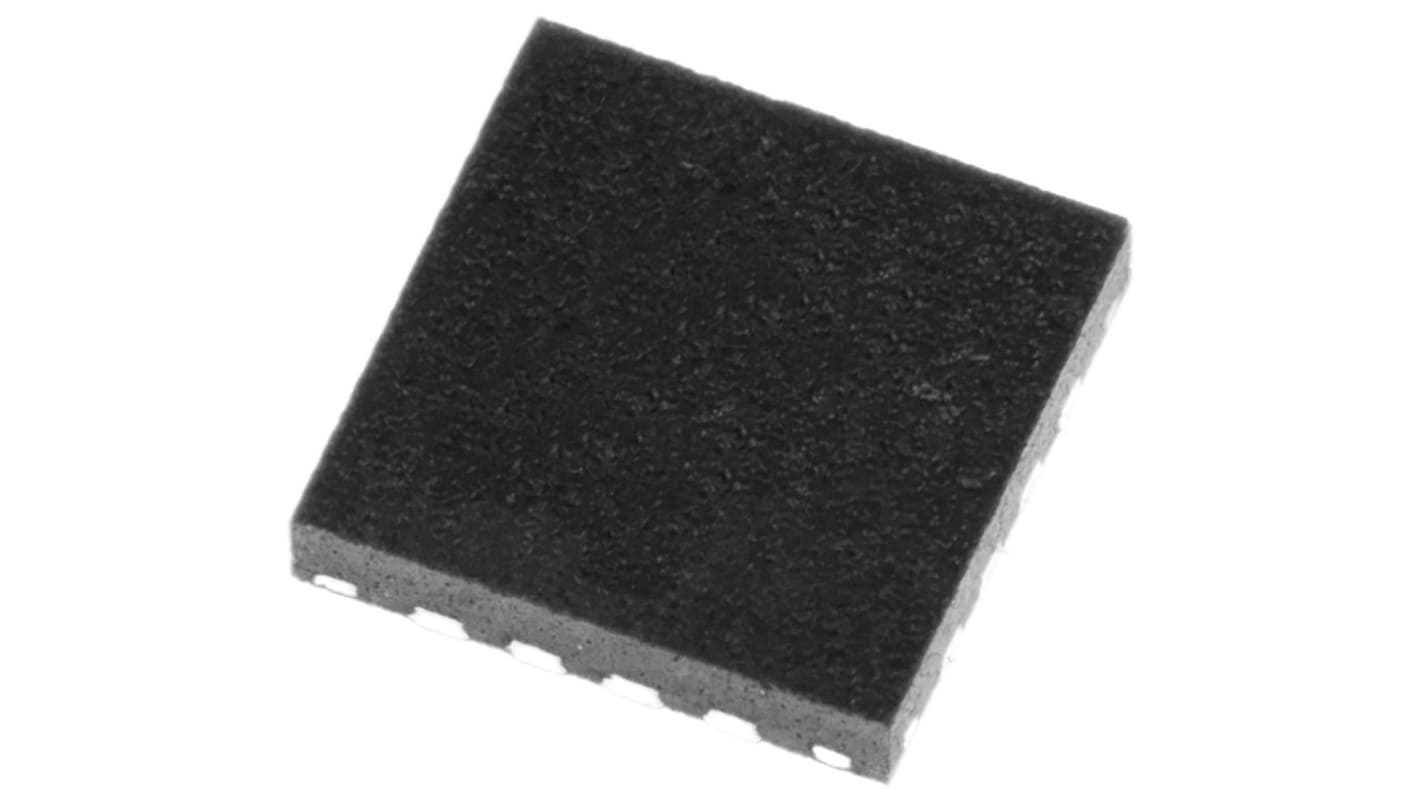

- RS Stock No.:
- 170-8124
- Mfr. Part No.:
- ISL28022FRZ-T7A
- Brand:
- Intersil
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (On a Reel of 250)
£1.552
(exc. VAT)
£1.862
(inc. VAT)
Units | Per unit | Per Reel* |
250 + | £1.552 | £388.00 |
*price indicative |
- RS Stock No.:
- 170-8124
- Mfr. Part No.:
- ISL28022FRZ-T7A
- Brand:
- Intersil
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Digital Power Monitors, Intersil
Digital Power Monitors are capable of bidirectional, high-side and low-side digital current sense, and voltage monitors.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
Specifications
Attribute | Value |
---|---|
Power Supply Type | Single |
Typical Single Supply Voltage | 3.3 V |
Minimum CMRR | 110dB |
Number of Channels per Chip | 2 |
Output Type | Open Drain |
Maximum Supply Current | 0.7 mA |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 16 |
Dimensions | 3 x 3 x 0.85mm |
Height | 0.85mm |
Length | 3mm |
Maximum Operating Supply Voltage | 5.5 V |
Width | 3mm |
Minimum Operating Supply Voltage | 3 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
