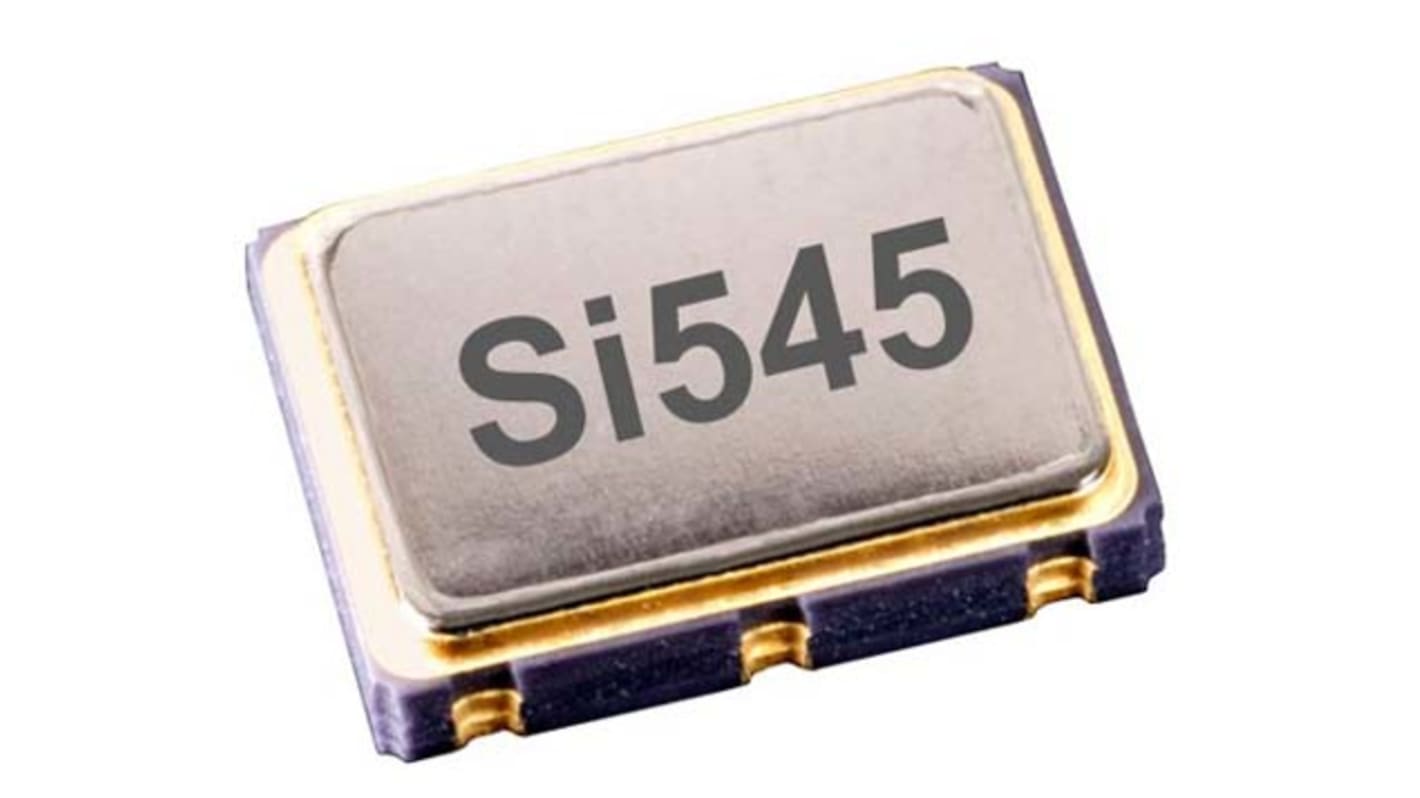

The Si545 Ultra Series oscillator utilizes Silicon Laboratories’ advanced 4th generation DSPLL® technology to provide an ultra-low jitter, low phase noise clock at any output frequency. The device is factory-programmed to any frequency from 0.2 to 1500 MHz with <1 ppb resolution and maintains exceptionally low jitter for both integer and fractional frequencies across its operating range. The Si545 offers excellent reliability and frequency stability as well as guaranteed aging performance.

Ultra low jitter: 80 fs Type RMS (12 kHz - 20 MHz)
Excellent PSRR and supply noise immunity: -80 dBc Type
3x tighter stability than SAW oscillators
3.3 V, 2.5 V and 1.8 V VDD supply operation from the same part number
LVPECL, LVDS, CML, HCSL, CMOS, and Dual CMOS output options
3.2x5 mm package footprint

Select all	Attribute	Value
	Brand	Skyworks Solutions Inc
	Oscillator Type	Clock
	Output Frequency	622.08MHz
	Frequency Stability	±20ppm
	Package Type	SMD
	Output Level	LVDS
	Mounting Type	Surface Mount
	Minimum Operating Temperature	-40°C
	Height	1.28mm
	Maximum Operating Temperature	85°C
	Width	3.2mm
	Length	5mm
	Dimensions	5 x 3.2 x 1.28mm

	Select all
	Brand Skyworks Solutions Inc
	Oscillator Type Clock
	Output Frequency 622.08MHz
	Frequency Stability ±20ppm
	Package Type SMD
	Output Level LVDS
	Mounting Type Surface Mount
	Minimum Operating Temperature -40°C
	Height 1.28mm
	Maximum Operating Temperature 85°C
	Width 3.2mm
	Length 5mm
	Dimensions 5 x 3.2 x 1.28mm

Skyworks Solutions Inc, 622.08MHz Clock Oscillator, ±20ppm LVDS, 6-Pin SMD 545BAA622M080BAG
