Molex Pre-Crimped Lead, 300mm

RS Stock No.:: 263-6850
Mfr. Part No.:: 219671-1124
Brand:: Molex

Save 28% when you buy 50 units

Subtotal (1 unit)*

£0.85

(exc. VAT)

£1.02

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

200 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£0.85
10 - 24	£0.75
25 - 49	£0.68
50 +	£0.61

*price indicative

RS Stock No.:: 263-6850
Mfr. Part No.:: 219671-1124
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	219671
	Cable Length	300mm

	Select all
	Brand Molex
	Series 219671
	Cable Length 300mm

Datasheet - 219671-1124

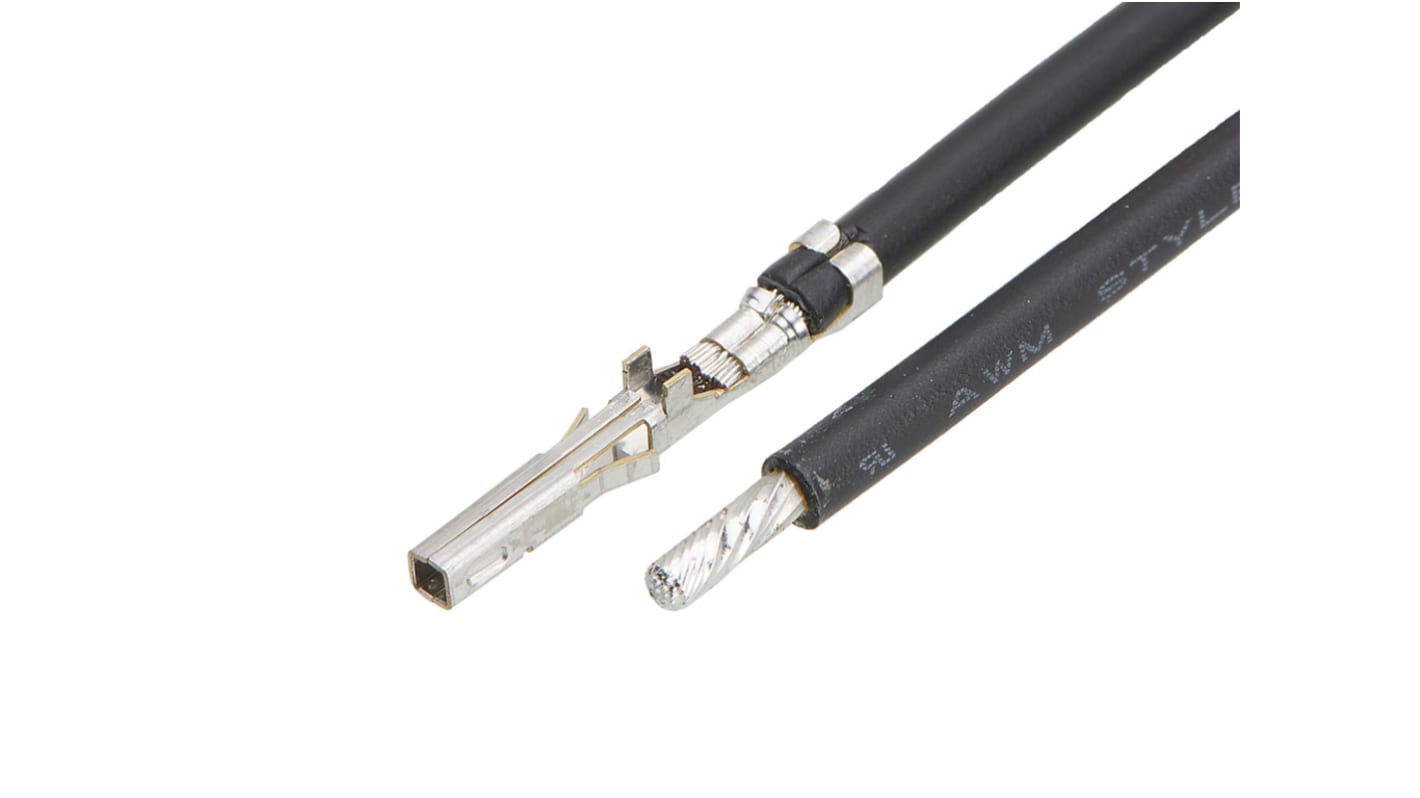

Molex 219671 Series Pre-Crimped Lead, 16AWG Wire size, 300mm Cable Length - 219671-1124

This pre-crimped lead is an off-the-shelf cable assembly designed for use with Mini-Fit connectors. It features a female-to-pigtail configuration and is constructed with 16AWG wire for reliable performance. With a cable length of 300mm, this lead is ideal for various applications that require effective wire-to-board or wire-to-wire connections.

Features & Benefits

• Utilises Mini-Fit female crimp terminals for secure connections
• Crafted with 16AWG UL11028 wire for enhanced durability
• Tin-plated connectors provide excellent conductivity
• Designed for a maximum current rating of 11.5A
• Flexible cable insulation diameter from 1.98mm to 2.55mm
• Low-halogen materials contribute to an environmentally friendly design

Applications

• Used with Mini-Fit TPA2 receptacle housings
• Designed for power in automation systems
• Suitable for interconnecting circuit boards in electronic devices
• Ideal for custom cable manufacturing in various mechanical setups

What type of wire insulation is used in this lead?

The lead is equipped with wire insulation that has a diameter ranging from 1.98mm to 2.55mm, ensuring compatibility across various applications.

Can this lead handle high voltage applications?

It is rated for a maximum voltage of 600V AC/DC, making it suitable for a wide range of electrical tasks.

What are the benefits of using tin-plated connectors?

Tin plating enhances electrical connectivity and resistance to corrosion, ensuring long-lasting performance in various environments.

Is this lead suitable for automation equipment?

Yes, it is designed for power applications in automation systems, ensuring reliable connectivity and performance.

What is the significance of using UL11028 wire in this product?

UL11028 wire offers high durability and reliability, making it ideal for demanding electrical applications.
