Molex Pre-Crimped Lead, 225mm
- RS Stock No.:
- 263-6848
- Mfr. Part No.:
- 219671-1123
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£0.85
(exc. VAT)
£1.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £0.85 |
10 - 24 | £0.75 |
25 - 49 | £0.68 |
50 + | £0.61 |
*price indicative
- RS Stock No.:
- 263-6848
- Mfr. Part No.:
- 219671-1123
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | 219671 | |
Cable Length | 225mm | |
Select all | ||
---|---|---|
Brand Molex | ||
Series 219671 | ||
Cable Length 225mm | ||

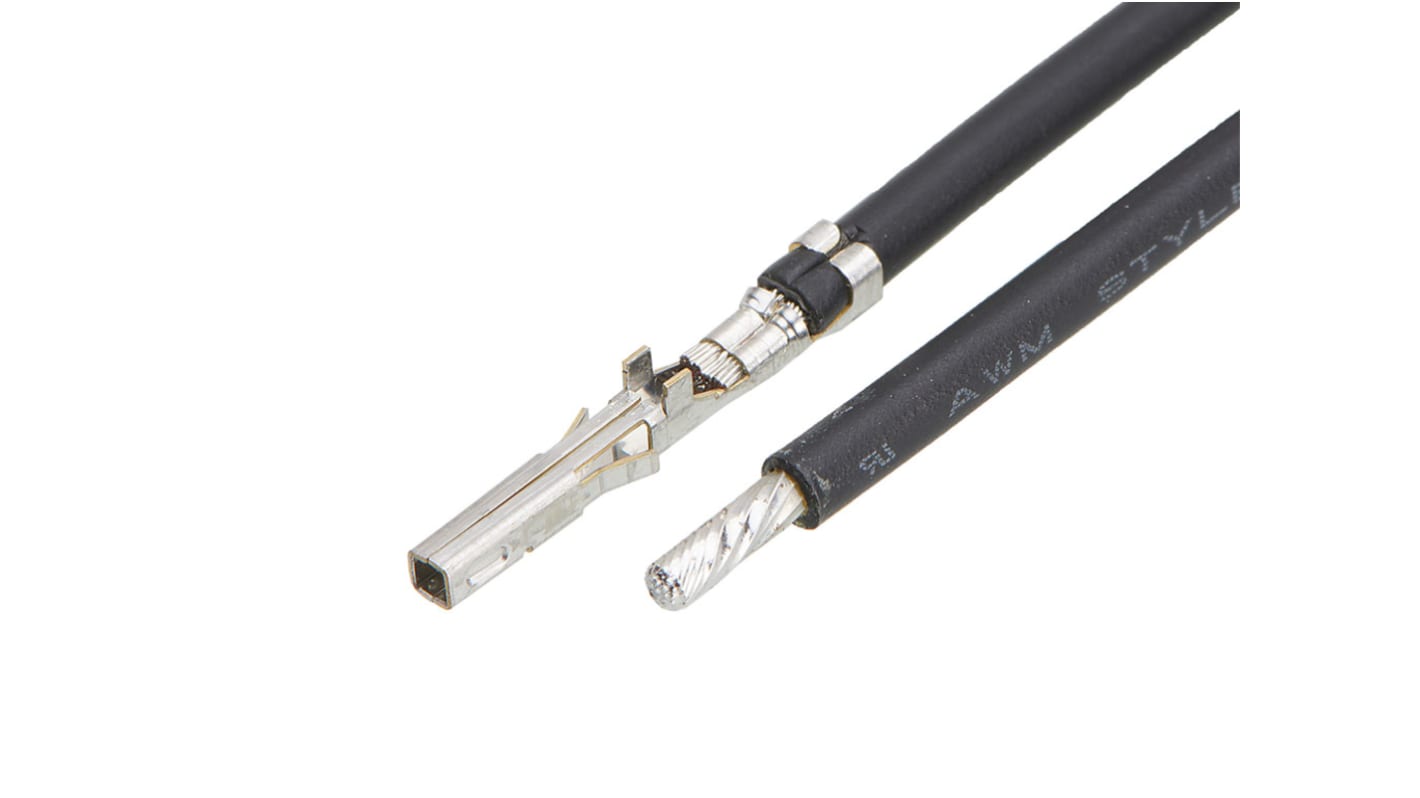

Molex 219671 Series Pre-Crimped Lead, 225mm Cable Length, 16AWG Wire size - 219671-1123
This pre-crimped lead is a robust connection solution designed for diverse applications in automation and electrical systems. It features a female Mini-Fit connector, constructed with 16 AWG wire and a length of 225 mm. The tin-plated connectors ensure optimal conductivity, while the black sheath provides protection against environmental factors.
Features & Benefits
• Designed for compatibility with Mini-Fit Sigma connectors
• Utilises 16 AWG wire for enhanced current capacity
• Terminals are tin plated to resist corrosion and wear
• Single-ended design simplifies installation in various setups
• Capable of handling up to 11.5 A current and 600V AC/DC
• Constructed with a flexible UL11028 wire for reliability
• Utilises 16 AWG wire for enhanced current capacity
• Terminals are tin plated to resist corrosion and wear
• Single-ended design simplifies installation in various setups
• Capable of handling up to 11.5 A current and 600V AC/DC
• Constructed with a flexible UL11028 wire for reliability
Applications
• Used with Mini-Fit TPA2/Sigma receptacle housings
• Ideal for power, wire-to-board, and wire-to-wire connections
• Suitable for high-current in electrical assemblies
• Effective for connecting electrical devices in automation systems
• Ideal for power, wire-to-board, and wire-to-wire connections
• Suitable for high-current in electrical assemblies
• Effective for connecting electrical devices in automation systems
What are the specific electrical ratings for this lead?
This lead can support a maximum current of 11.5 A per contact and is rated for a voltage of up to 600V AC/DC, making it suitable for high-power applications.
How does the wire insulation contribute to its performance?
The wire insulation, with a diameter between 1.98 mm and 2.55 mm, aids in maintaining the integrity of the connection under varying environmental conditions, enhancing safety and performance.
What materials are used in the construction of the connectors?
The connectors are primarily made from brass with a tin plating, which helps prevent oxidation and ensures long-lasting electrical conductivity.
Can this lead be used in temperature-sensitive applications?
While this lead is designed for a wide range of electrical applications, specific temperature ratings depend on the overall assembly configuration and environmental factors. It is advisable to assess the assembly's thermal performance in end-use conditions.
