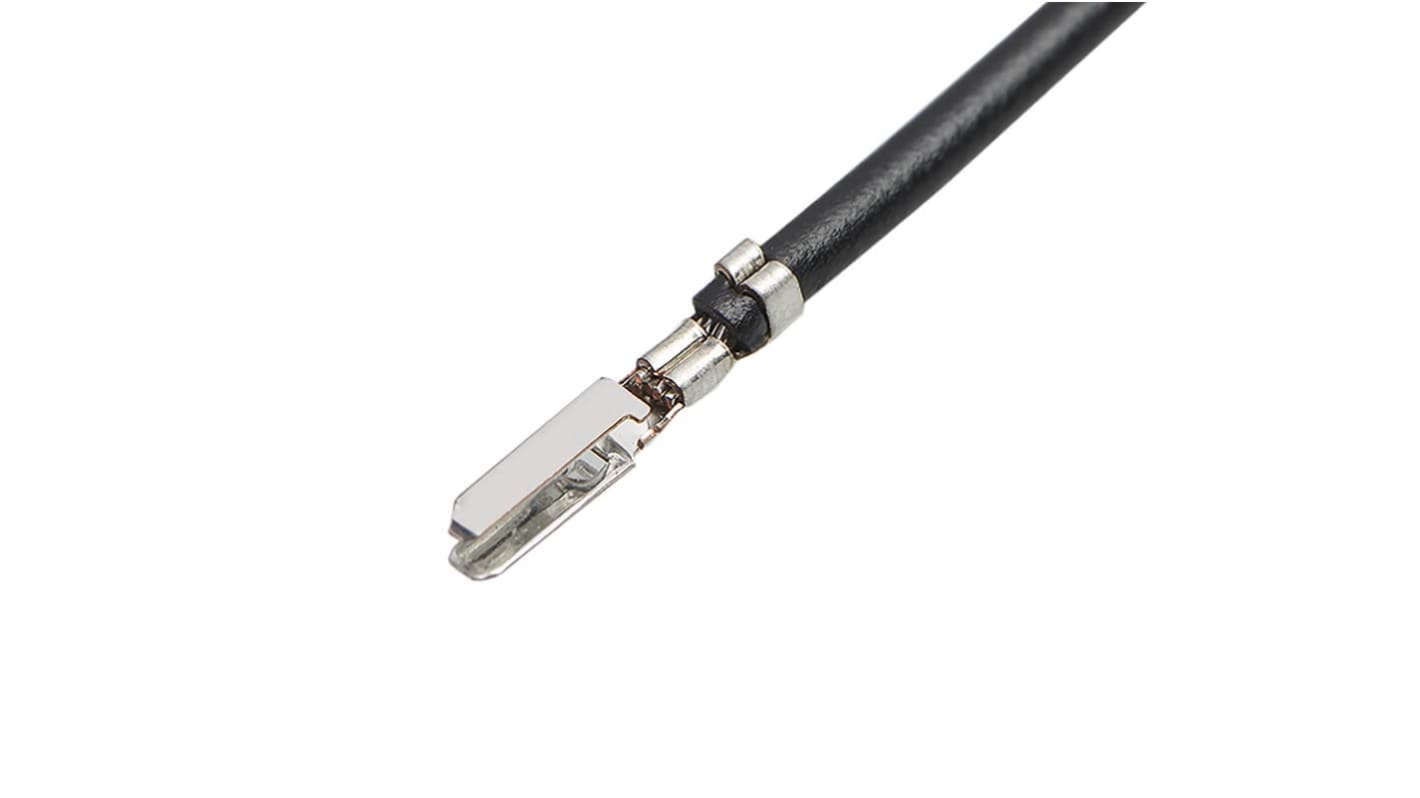

Molex Male CLIK-Mate to Male CLIK-Mate Crimped Wire, 150mm, 0.25mm², Black
- RS Stock No.:
- 204-5295
- Mfr. Part No.:
- 215710-1122
- Brand:
- Molex
Available to back order for despatch 04/02/2025
Price Each (In a Pack of 5)
£1.046
(exc. VAT)
£1.255
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £1.046 | £5.23 |
| 10 - 20 | £0.79 | £3.95 |
| 25 + | £0.758 | £3.79 |
*price indicative
- RS Stock No.:
- 204-5295
- Mfr. Part No.:
- 215710-1122
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
The Molex 215710 series pre-crimped lead male to male wire with 150 mm length.
Current - Maximum per Contact 2.0A
Voltage - Maximum 100V AC (RMS)/DC
Plating min - Mating 0.406μm
Plating min - Termination 0.406μm
Material - Metal Copper Alloy
Material - Plating Termination Tin
Wire Insulation Diameter 0.78-1.28mm
Voltage - Maximum 100V AC (RMS)/DC
Plating min - Mating 0.406μm
Plating min - Termination 0.406μm
Material - Metal Copper Alloy
Material - Plating Termination Tin
Wire Insulation Diameter 0.78-1.28mm
Specifications
Attribute | Value |
|---|---|
| Crimp Terminal 1 | CLIK-Mate |
| Series | CLIK-Mate |
| Crimp Terminal 2 | CLIK-Mate |
| Crimp Terminal 1 Gender | Male |
| Crimp Terminal 2 Gender | Male |
| Wire Size | 0.25mm² |
| Cable Length | 150mm |
| Contact Plating | Tin |
| Sheath Colour | Black |
| Series Number | 215710 |
| Current Rating | 2 A |
| Wire Style | UL 10002 |
