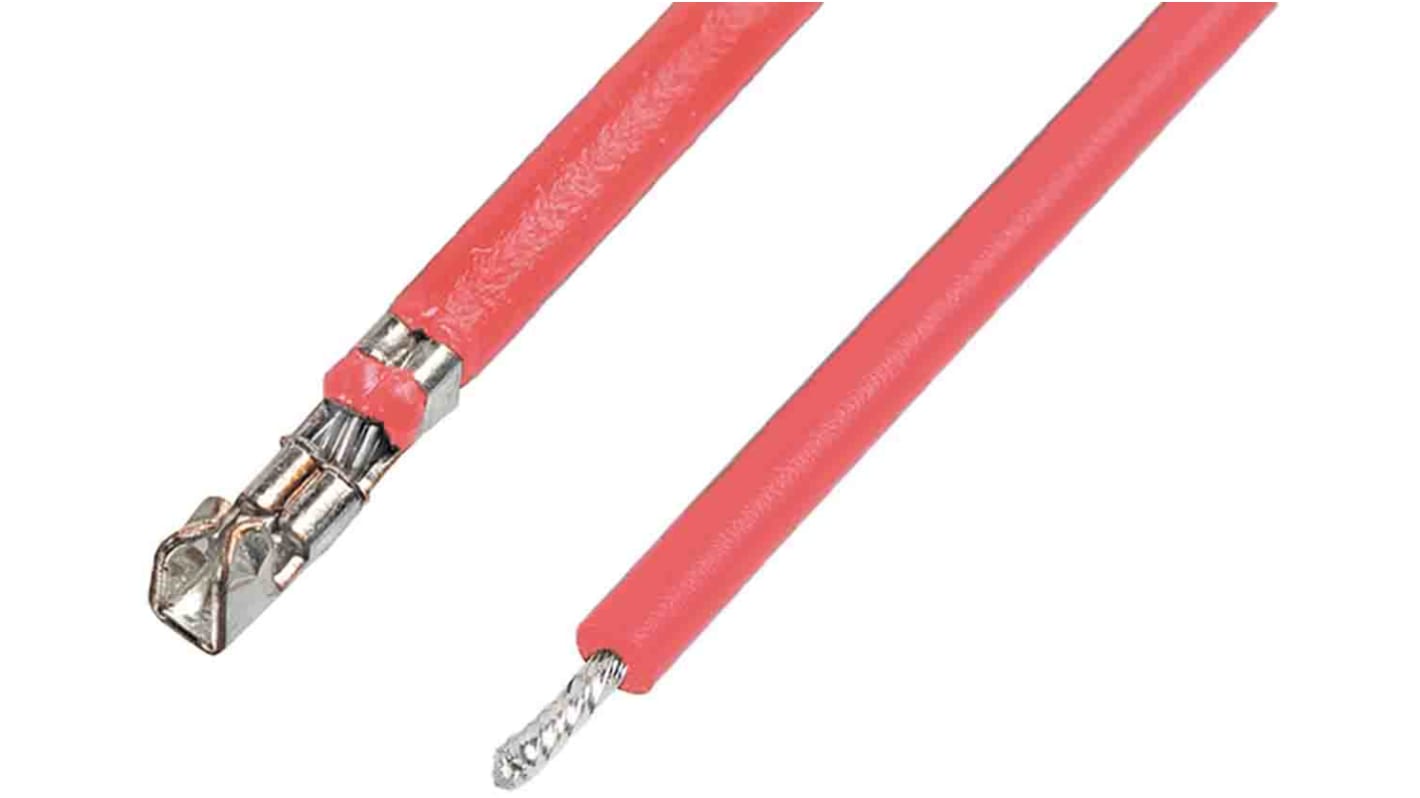

Molex Female PicoBlade to Unterminated Crimped Wire, 300mm, 28AWG, Red
- RS Stock No.:
- 201-9852
- Mfr. Part No.:
- 2149211124
- Brand:
- Molex
39 In stock - FREE next working day delivery available
Price 1 Bag of 50
£42.19
(exc. VAT)
£50.63
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 1 | £42.19 | £0.844 |
| 2 - 9 | £38.34 | £0.767 |
| 10 + | £36.80 | £0.736 |
*price indicative
- RS Stock No.:
- 201-9852
- Mfr. Part No.:
- 2149211124
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
The Molex pre crimped lead offers a simple, cost effective solution for prototyping, pre-production and mass production requirements. This Pre Crimped Lead Pico Blade has a female to pigtail connection or contacts with Tin plating at the mating side as well as on the termination side.
28AWG wire size
Red in colour
Phosphor bronze material
Bag packaging type
1.25mm pitch mating interface
Red in colour
Phosphor bronze material
Bag packaging type
1.25mm pitch mating interface
Specifications
Attribute | Value |
|---|---|
| Series | PicoBlade |
| Crimp Terminal 1 | PicoBlade |
| Crimp Terminal 2 | Unterminated |
| Crimp Terminal 1 Gender | Female |
| Wire Size | 28AWG |
| Cable Length | 300mm |
| Contact Plating | Tin |
| Sheath Colour | Red |
| Series Number | 79758 |
| Current Rating | 1 A |
| Wire Style | UL1061 |
