- RS Stock No.:
- 166-7247
- Mfr. Part No.:
- 01SPHSPH-26L-300
- Brand:
- JST
1000 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 1000)
£0.261
(exc. VAT)
£0.313
(inc. VAT)
Units | Per unit | Per Bag* |
1000 + | £0.261 | £261.00 |
*price indicative |
- RS Stock No.:
- 166-7247
- Mfr. Part No.:
- 01SPHSPH-26L-300
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
JST PH Series Crimp Contacts and Cable Assemblies
The PH series of crimp receptacle contacts and cable assemblies from JST are great for use in the PH series crimp connector housings in a range of applications. The crimp receptacle contacts are made from phosphor bronze with a tin plating and accept a wire size range of 30 to 24 AWG for a strong and reliable connection.
PH Series Crimp Contacts
123-5948 Female 30AWG to 24AWG – Standard Tape
820-1456 Female 30AWG to 24AWG – Standard Pack
166-7395 Female 30AWG to 24AWG – Bulk Bag
PH Series Crimp Contact Leads
820-1419 Double ended 150mm crimp contact wire – Standard Pack
166-7248 Double ended 150mm crimp contact wire – Bulk Bag
820-1412 Double ended 300mm crimp contact wire – Standard Pack

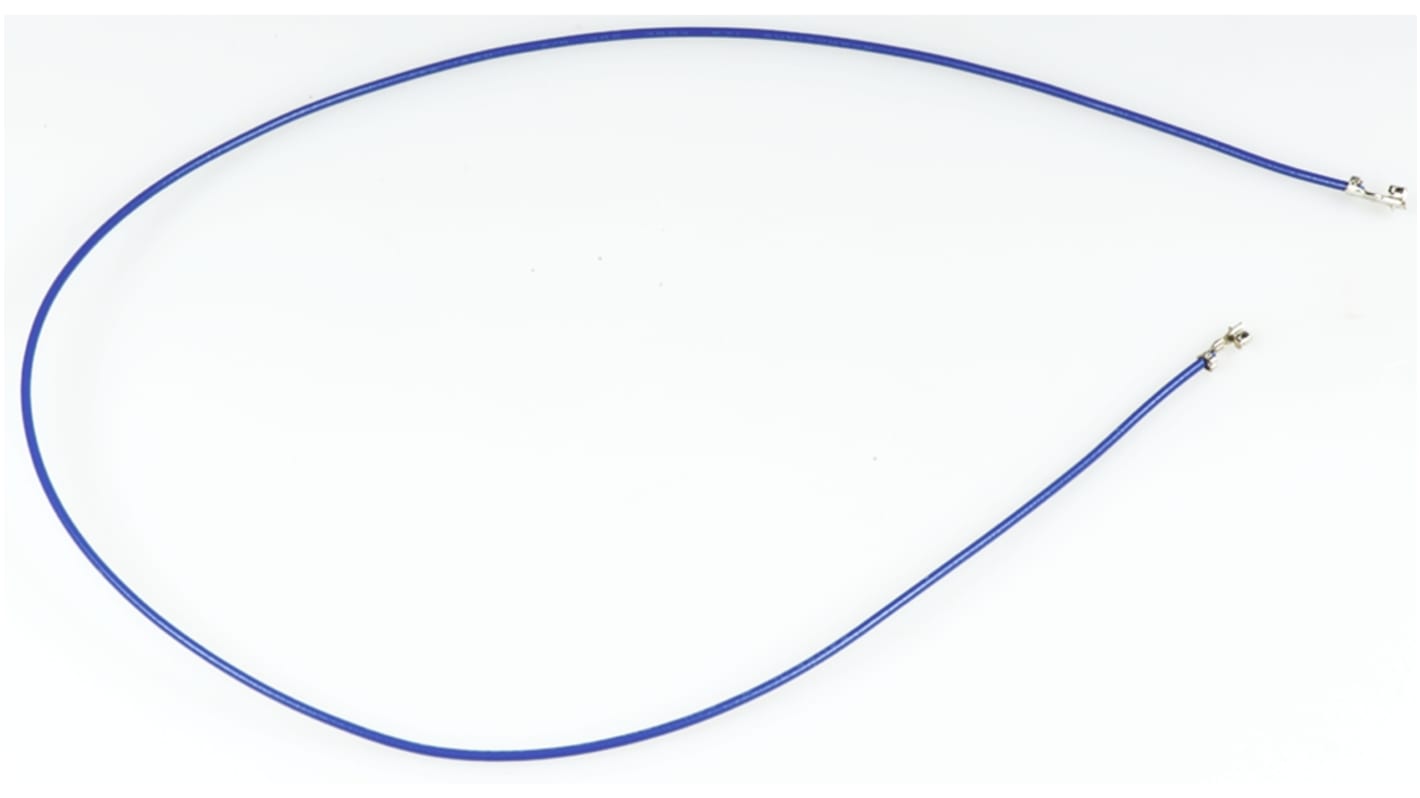

166-7247 Double ended 300mm crimp contact wire – Bulk Bag
PH Series Crimp Contacts
123-5948 Female 30AWG to 24AWG – Standard Tape
820-1456 Female 30AWG to 24AWG – Standard Pack
166-7395 Female 30AWG to 24AWG – Bulk Bag
PH Series Crimp Contact Leads
820-1419 Double ended 150mm crimp contact wire – Standard Pack
166-7248 Double ended 150mm crimp contact wire – Bulk Bag
820-1412 Double ended 300mm crimp contact wire – Standard Pack
166-7247 Double ended 300mm crimp contact wire – Bulk Bag
2.0mm Wire-to-Board Connector, JST PH Series
Specifications
Attribute | Value |
---|---|
Crimp Terminal 1 | SPH |
Series | PH |
Crimp Terminal 2 | SPH |
Crimp Terminal 1 Gender | Female |
Crimp Terminal 2 Gender | Female |
Wire Size | 0.14mm² |
Cable Length | 300mm |
Contact Plating | Tin |
