Molex Female iGrid to Pigtail Crimped Wire, 300mm, 24AWG, Red
- RS Stock No.:
- 197-026
- Mfr. Part No.:
- 2174912214
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£0.87
(exc. VAT)
£1.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 84 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £0.87 |
10 + | £0.79 |
*price indicative
- RS Stock No.:
- 197-026
- Mfr. Part No.:
- 2174912214
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Crimp Terminal 1 | iGrid | |
Series | 217491 | |
Crimp Terminal 2 | Pigtail | |
Crimp Terminal 1 Gender | Female | |
Wire Size | 24AWG | |
Cable Length | 300mm | |
Sheath Colour | Red | |
Select all | ||
---|---|---|
Brand Molex | ||
Crimp Terminal 1 iGrid | ||
Series 217491 | ||
Crimp Terminal 2 Pigtail | ||
Crimp Terminal 1 Gender Female | ||
Wire Size 24AWG | ||
Cable Length 300mm | ||
Sheath Colour Red | ||
- COO (Country of Origin):
- IN

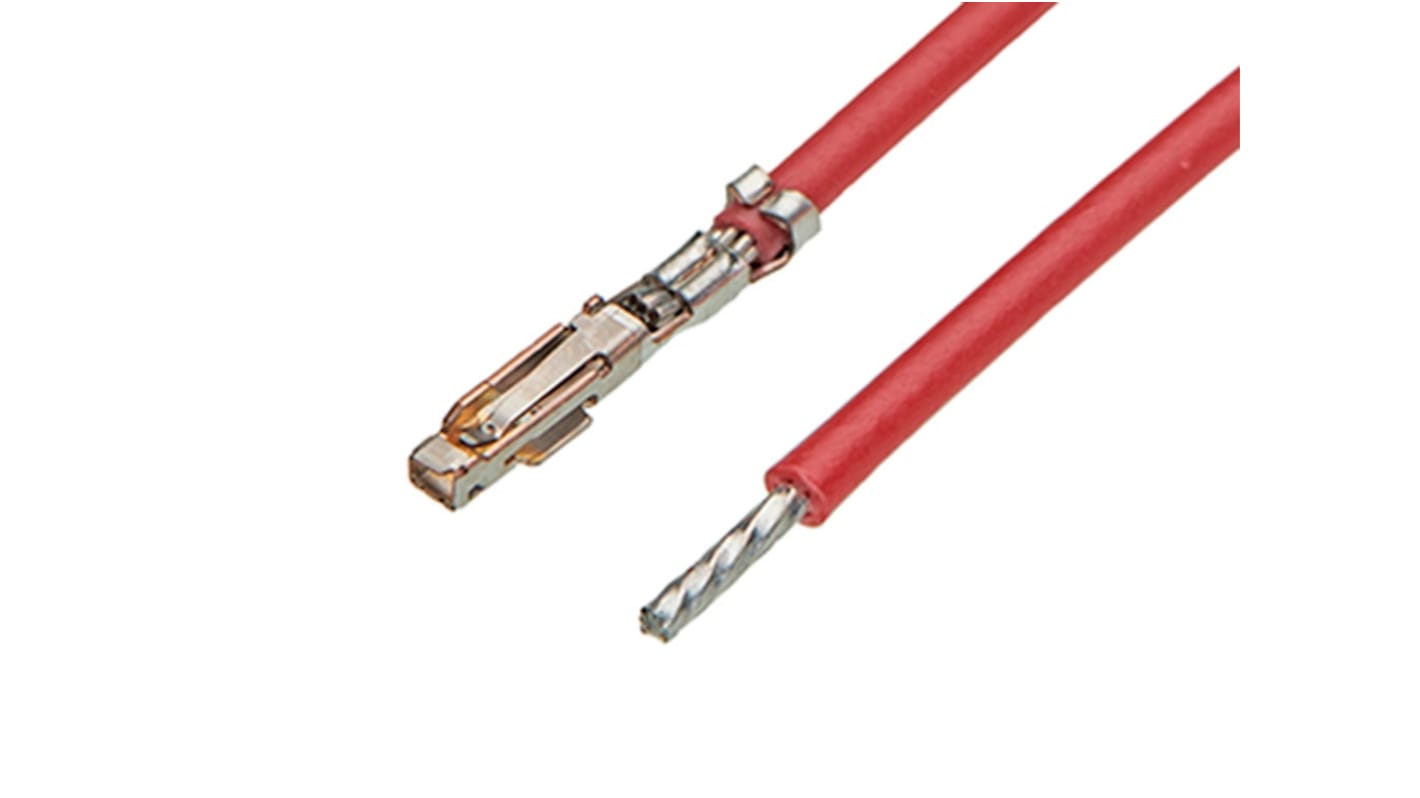

The Molex Pre Crimped Lead features an iGrid female to pigtail configuration, suitable for signal and wire to board applications. It is made from 24 AWG wire and has gold plating for mating and nickel plating for termination, ensuring excellent conductivity and durability. Constructed from a copper alloy, the lead is insulated with PVC resin for enhanced protection. This assembly configuration includes only the pre crimped lead for straightforward integration into your projects.
Crimp or compression interface style
Single ended
Eu RoHS
REACH SVHC
Low halogen
Single ended
Eu RoHS
REACH SVHC
Low halogen
