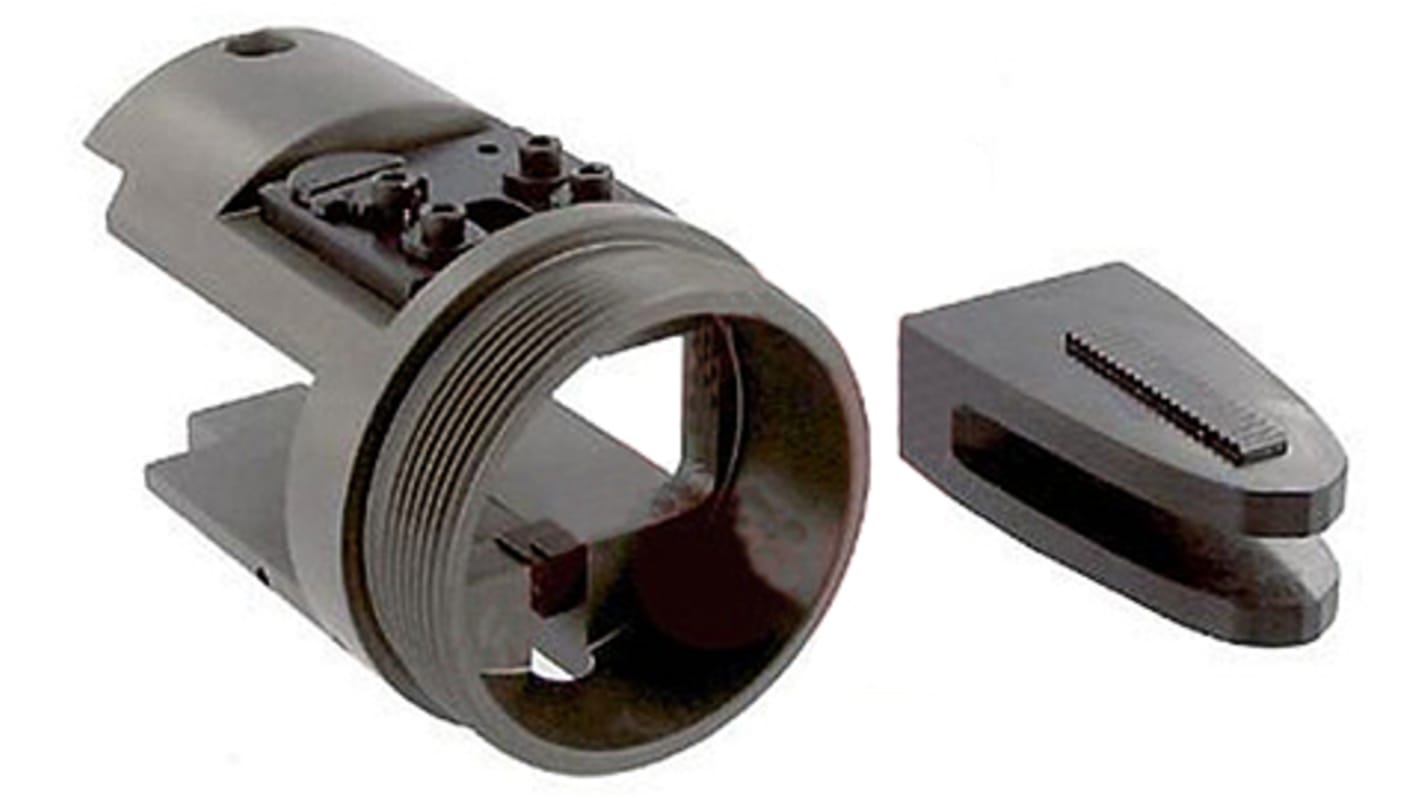

TE Connectivity, CERTI-CRIMP Tool Holder

Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): US
Product Details

TE Connectivity Pneumatic CERTI-CRIMP Tool Holder Assemblies

Pneumatic CERTI-CRIMP tool holder assemblies that form part of a pneumatic crimp tooling system. These tool holders are fitted to power units (TE part numbers 189721-1 & 189722-1 for stock numbers 864-7014, 864-7023 and 782-7442 and TE part number1490567-1 for stock number 864-6954) and are designed to accept interchangeable crimp head adapters for crimping various connector types. These Pneumatic CERTI-CRIMP tool holder assemblies consist of a body, cam, adjustable eccentric, pivot pin and ratchet pawl. The eccentric controls the amount of cam pressure exerted on the crimping head jaws or dies. The ratchet mechanism has a range of settings and ensures that a full crimp cycle is achieved by remaining locked until the jaws or dies bottom. An emergency release is also available.

TE Connectivity Pneumatic, Hydraulic & Machine Crimp Tooling

Specifications
Attribute Value
Type Tool Holder
Series CERTI-CRIMP
Available to back order for despatch 02/11/2020
Price Each
£ 1,250.44
(exc. VAT)
£ 1,500.53
(inc. VAT)
Units
Per unit
1 +
£1,250.44
