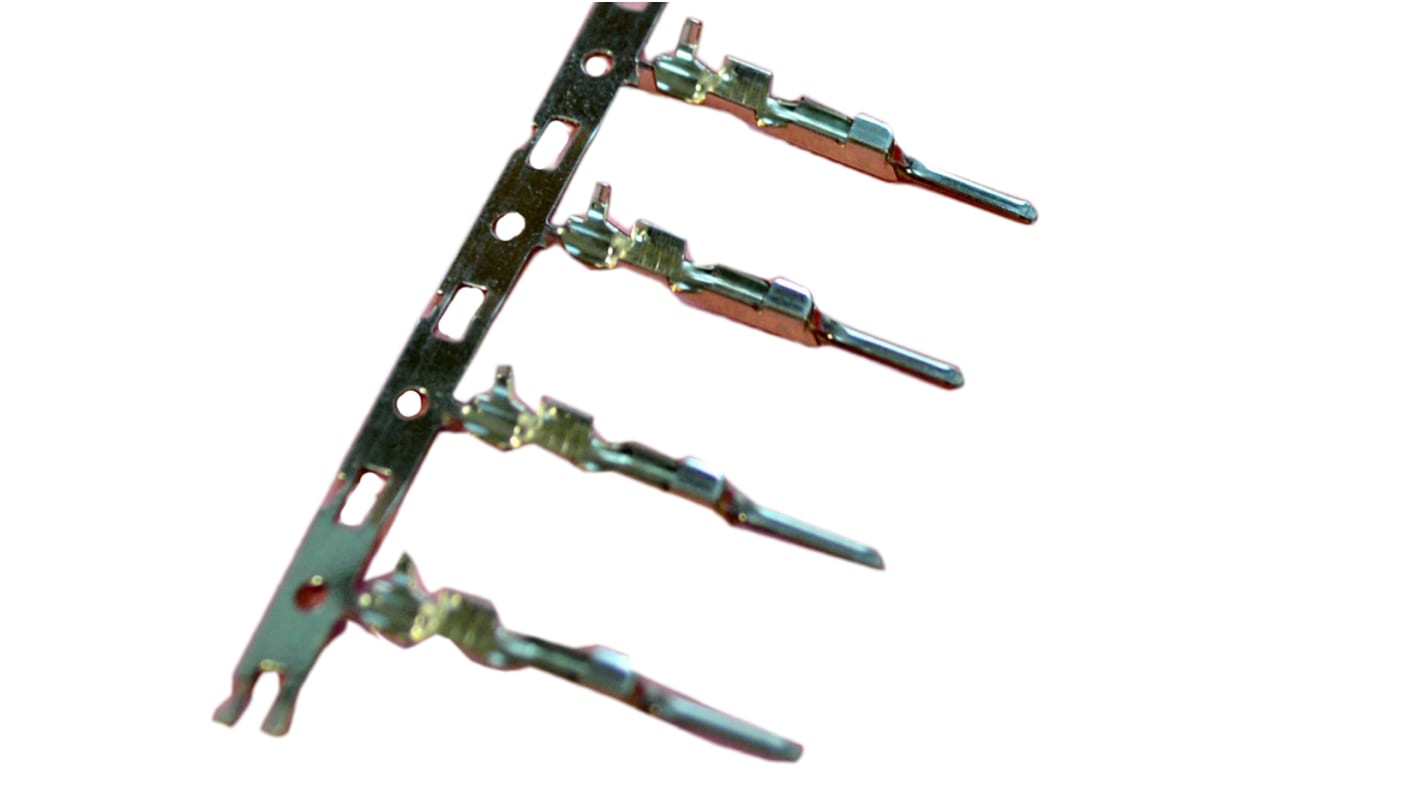

JST JWPS Series Male Crimp Terminal, 22AWG Min, 18AWG Max
- RS Stock No.:
- 906-0143
- Mfr. Part No.:
- SJWPST-21T-M1.0N
- Brand:
- JST
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 906-0143
- Mfr. Part No.:
- SJWPST-21T-M1.0N
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Gender | Male | |
| For Use With | JWPS Connector Housing | |
| Series | JWPS | |
| Maximum Wire Size mm² | 0.8mm² | |
| Termination Method | Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -25°C | |
| Maximum Current | 6A | |
| Maximum Operating Temperature | +85 °C, +85 °C | |
Select all | ||
|---|---|---|
Brand JST | ||
Gender Male | ||
For Use With JWPS Connector Housing | ||
Series JWPS | ||
Maximum Wire Size mm² 0.8mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -25°C | ||
Maximum Current 6A | ||
Maximum Operating Temperature +85 °C, +85 °C | ||
- COO (Country of Origin):
- JP
JST 4.0mm JWPS Waterproof IP67 Tab and Receptacle Crimp Contacts
Crimp tab contact (stock number 906-0143) for use in the 4.0mm JWPS waterproof IP67 tab housing connectors and crimp receptacle contact for use in the 4.0mm JWPS waterproof IP67 recepatcle housing connectors. The JWPS contact system features a a double spring construction that ensures superior contact force.
A crimp tool is also available, see stock number 906-0152
A crimp tool is also available, see stock number 906-0152
JST 4.0mm JWPS Waterproof Wire to Wire and Wire to Board Connectors
