Molex EdgeMate Series Female Crimp Terminal, 20AWG Min, 18AWG Max
RS Stock No.:
837-1681
Mfr. Part No.:
172160-1806
Brand:
Molex
Technical Reference (1)
View all Crimp Contacts
Discontinued product
RS Stock No.:
837-1681
Mfr. Part No.:
172160-1806
Brand:
Molex
Legislation and Compliance
Product Details
Specifications
RoHS Certificate of Compliance
Statement of conformity

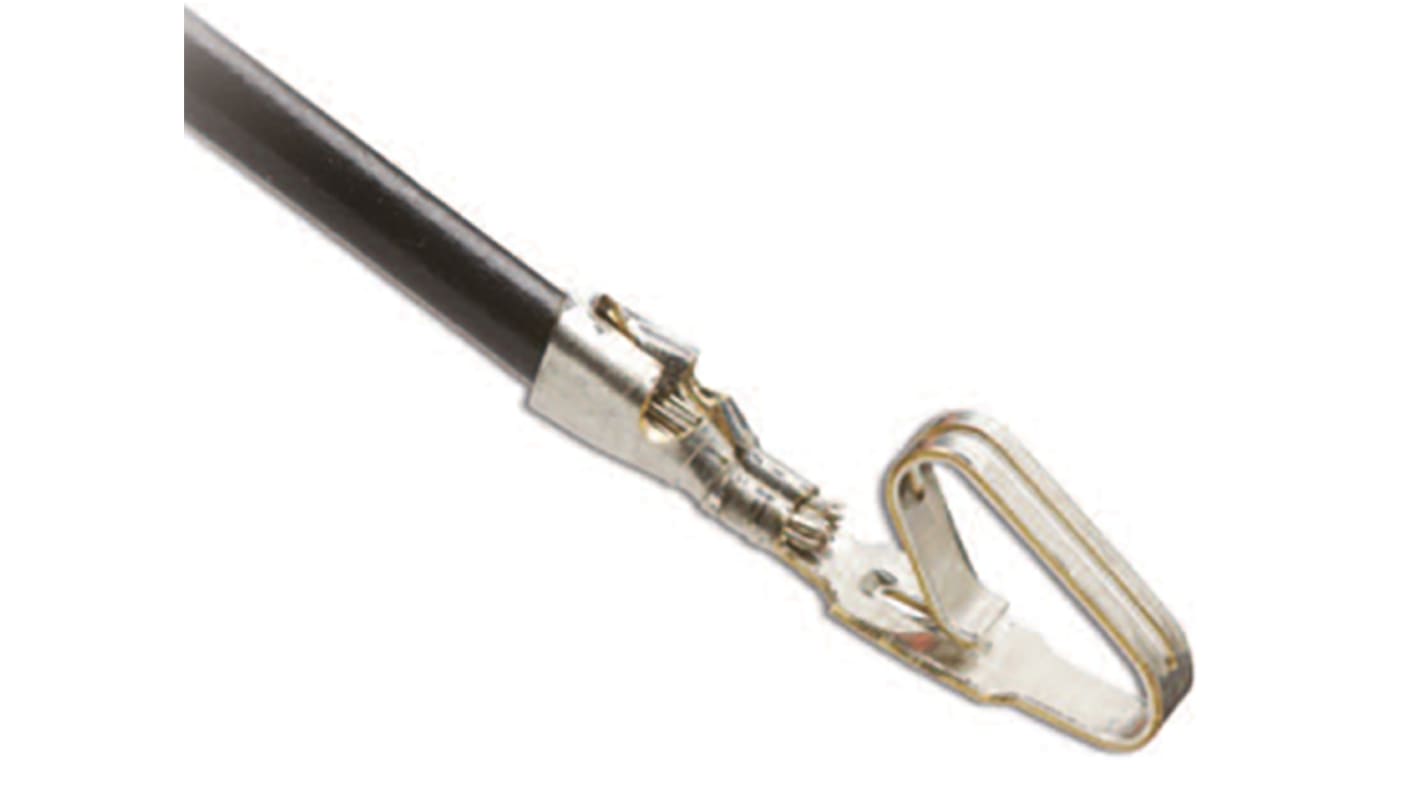

Molex 3.96mm Pitch EdgeMate Bifuricated Crimp Terminals
3.96mm pitch EdgeMate™ female crimp terminals with cantilever beams and bifurcated dual contact points for a reliable electrical connection.
Molex EdgeMate™ Wire-to-Edge-Card Power Connectors
Attribute
Value
Gender
Female
For Use With
EdgeMate Connector Housing
Series
EdgeMate
Minimum Wire Size mm²
0.5mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.8mm²
Contact Plating
Tin
Minimum Wire Size AWG
20AWG
Maximum Wire Size AWG
18AWG
Contact Material
Brass
Series Number
172160
Maximum Contact Resistance
10mΩ
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+80°C
