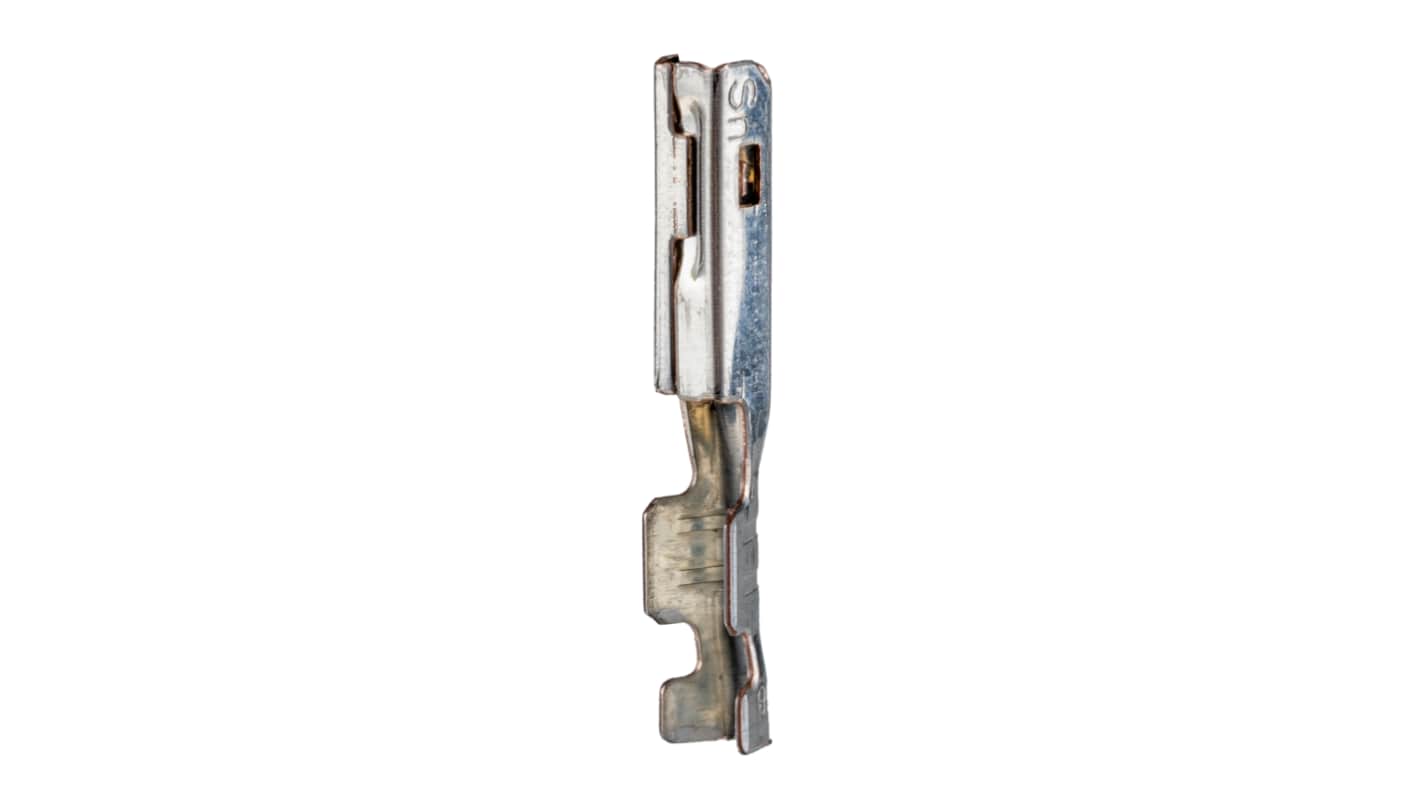

Molex MX150 Series Female Crimp Terminal, 20AWG Min, 18AWG Max
- RS Stock No.:
- 797-8736
- Mfr. Part No.:
- 33012-3002
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£8.10
(exc. VAT)
£9.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 900 unit(s) shipping from 06 October 2025
- Plus 4,200 unit(s) shipping from 06 October 2025
- Plus 22,900 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.081 | £8.10 |
| 500 - 900 | £0.073 | £7.30 |
| 1000 - 2400 | £0.07 | £7.00 |
| 2500 - 4900 | £0.067 | £6.70 |
| 5000 + | £0.064 | £6.40 |
*price indicative
- RS Stock No.:
- 797-8736
- Mfr. Part No.:
- 33012-3002
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | MX150 Connector Housing | |
| Series | MX150 | |
| Minimum Wire Size mm² | 0.6mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Termination Method | Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Alloy | |
| Series Number | 33012 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With MX150 Connector Housing | ||
Series MX150 | ||
Minimum Wire Size mm² 0.6mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Alloy | ||
Series Number 33012 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- US
MX150™ Female Crimp Terminals, 1.50mm - 33001 and 33012 Series
Female crimp terminals for the MX150™ connector system. These female crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these female crimp terminals is 250 V, 22 A. These female crimp terminals mate with series 33001 male terminals, stock numbers 720-5700 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
Note
For a range of MX 150 Tooling see stock number 778-6717 typical.
Molex Crimp Terminal, High-Performance Alloy Construction, 20 and 18AWG Wire Sizes - MX150 Series - 33012-3002
Link wires together in a jiffy with this crimp terminal from Molex. For versatility, it works with both sealed and unsealed connector systems in the MX150 series. It's made of high-performance alloy and handles up to 14V DC, so it's suitable for the low-voltage power systems used in vehicles, LED setups and portable electronic devices.
Features & Benefits
• Hand crimping does away with the need for soldering, simplifying the assembly process
• Withstands high temperatures up to +150°C, so it's ruggedly built
• Handles up to 25 mating cycles, making it handy for cars and machines that need regular servicing
• Withstands high temperatures up to +150°C, so it's ruggedly built
• Handles up to 25 mating cycles, making it handy for cars and machines that need regular servicing
Applications
• Automotive manufacturing
• Construction equipment
• Marine industry
• Construction equipment
• Marine industry
How can I be sure this crimp terminal connects reliably to the socket?
The crimp terminal has notches on the mating section. This ensures a secure hold in compatible housing assemblies, such as Molex's 12-way automotive connector (904-8222).
Molex MX150™ Sealed Connection Systems
