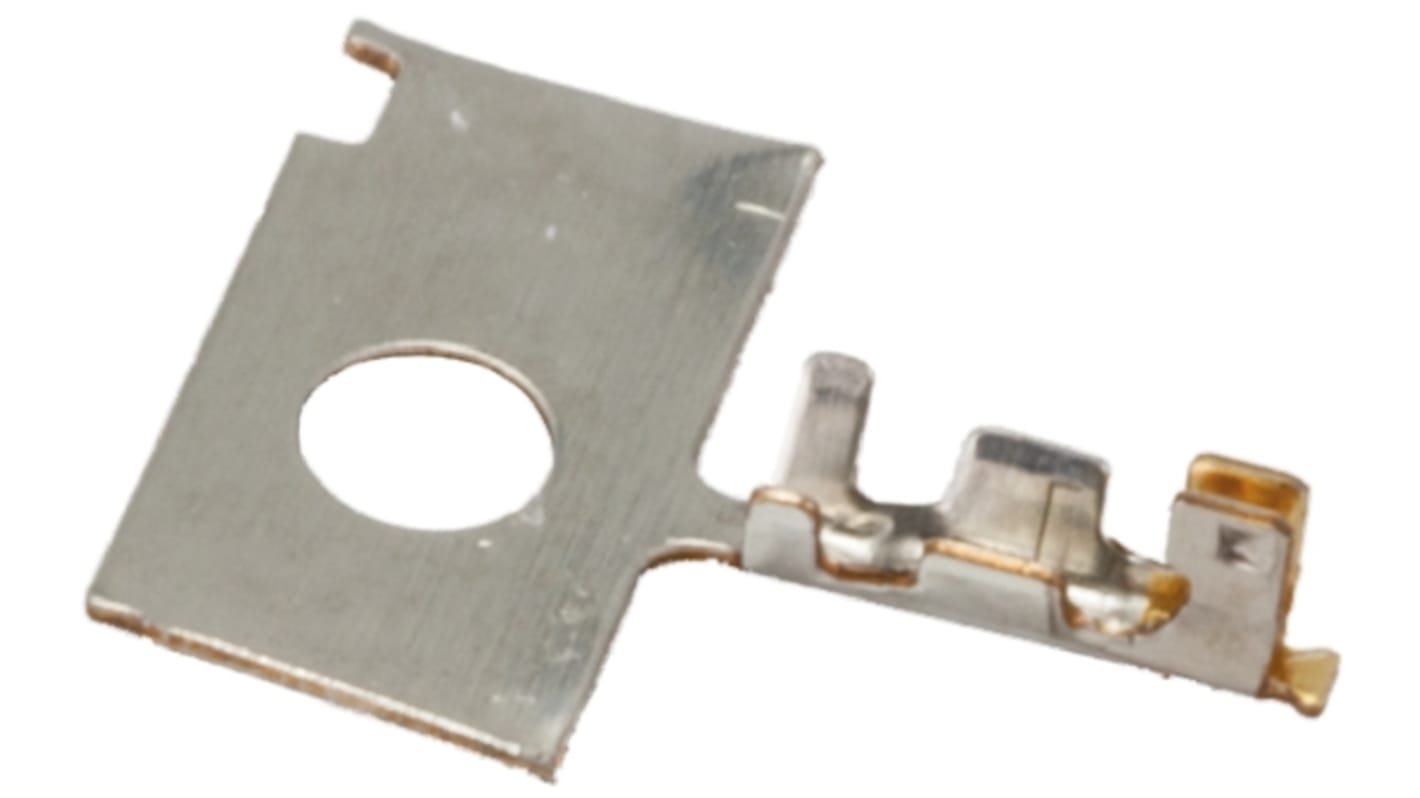

Hirose DF20 Series Female Crimp Terminal, 32AWG Min, 30AWG Max
- RS Stock No.:
- 779-4761
- Mfr. Part No.:
- DF20F-3032SCFA
- Brand:
- Hirose
Subtotal (1 pack of 100 units)*
£3.80
(exc. VAT)
£4.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.038 | £3.80 |
*price indicative
- RS Stock No.:
- 779-4761
- Mfr. Part No.:
- DF20F-3032SCFA
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Female | |
| For Use With | DF20A Connector Housing | |
| Series | DF20 | |
| Maximum Wire Size mm² | 0.05mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 32AWG | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 30AWG | |
| Maximum Contact Resistance | 30mΩ | |
| Maximum Current | 0.9A | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Female | ||
For Use With DF20A Connector Housing | ||
Series DF20 | ||
Maximum Wire Size mm² 0.05mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 32AWG | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 30AWG | ||
Maximum Contact Resistance 30mΩ | ||
Maximum Current 0.9A | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- JP
Crimp Receptacle Contacts for DF20 Series Socket Connector
1.0mm Double-Row Connector - Hirose DF20
Board to wire connector range, 1mm contact pitch,Low profile design with a mating height above the PCB of 5.8mm,Mechanism to prevent mis-insertion
