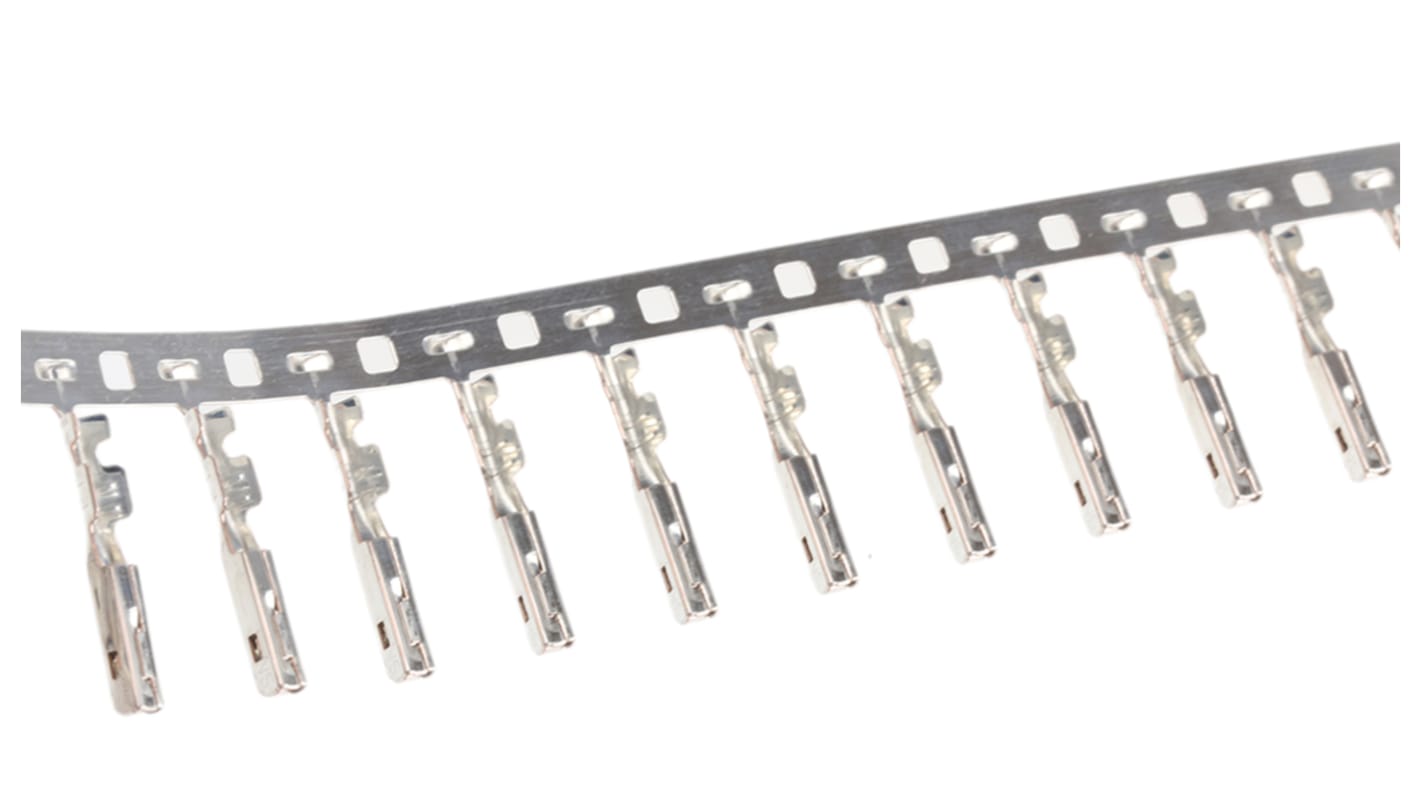

Molex MX150 Series Female Crimp Terminal, 20AWG Min, 18AWG Max
- RS Stock No.:
- 720-5716
- Mfr. Part No.:
- 33012-2002
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£11.90
(exc. VAT)
£14.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8,100 unit(s) shipping from 27 October 2025
- Plus 3,100 unit(s) shipping from 27 October 2025
- Plus 123,700 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.119 | £11.90 |
| 1000 - 2900 | £0.10 | £10.00 |
| 3000 - 7400 | £0.096 | £9.60 |
| 7500 - 14900 | £0.092 | £9.20 |
| 15000 + | £0.088 | £8.80 |
*price indicative
- RS Stock No.:
- 720-5716
- Mfr. Part No.:
- 33012-2002
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | MX150 Connector Housing | |
| Series | MX150 | |
| Minimum Wire Size mm² | 0.6mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 20AWG | |
| Contact Plating | Tin | |
| Contact Material | Alloy | |
| Maximum Wire Size AWG | 18AWG | |
| Series Number | 33012 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With MX150 Connector Housing | ||
Series MX150 | ||
Minimum Wire Size mm² 0.6mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 20AWG | ||
Contact Plating Tin | ||
Contact Material Alloy | ||
Maximum Wire Size AWG 18AWG | ||
Series Number 33012 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
MX150™ Female Crimp Terminals, 1.50mm - 33001 and 33012 Series
Female crimp terminals for the MX150™ connector system. These female crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these female crimp terminals is 250 V, 22 A. These female crimp terminals mate with series 33001 male terminals, stock numbers 720-5700 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
Note
For a range of MX 150 Tooling see stock number 778-6717 typical.
Molex MX150 Female Crimp Terminal, 20 to 18AWG - 33012 Series - 33012-2002
This crimp terminal from Molex makes strong and secure wire-to-wire and wire-to-board electrical joins. It's part of the MX150 series and is designed for use in automotive and commercial vehicle applications. It creates an airtight connection that won't corrode and a mechanically strong join that can bear the shock and vibrations that are to be expected in an automotive context. The terminal accommodates wires with a maximum size of 18 and a minimum size of 20AWG (American Wire Gauge).
• Wide operating temperature range of -40°C to +125°C means it'll withstand hot engines and freezing weather
• Maximum voltage of 14V DC (direct current) for a versatile range of suitable connections
• Comes in a convenient pack of 100 to keep you stocked up
• Maximum voltage of 14V DC (direct current) for a versatile range of suitable connections
• Comes in a convenient pack of 100 to keep you stocked up
Applications
• Automotive manufacturing
• Haulage and logistics industry
• Boating and marine operations
• Haulage and logistics industry
• Boating and marine operations
What is the contact on this terminal made of?
The contact is made from a high-performance alloy (HPA) that delivers durable performance. It's then plated in tin for high conductivity and fast and secure current transmissions.
Molex MX150™ Sealed Connection Systems
