JAE, MX34 Female Crimp Terminal M34S75C4F2
- RS Stock No.:
- 690-9893
- Mfr. Part No.:
- M34S75C4F2
- Brand:
- JAE
View all Crimp Contacts
53100 In stock - FREE next working day delivery available
3550 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 50)
£0.05
(exc. VAT)
£0.06
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 450 | £0.05 | £2.50 |
| 500 - 1450 | £0.043 | £2.15 |
| 1500 - 3700 | £0.035 | £1.75 |
| 3750 - 7450 | £0.033 | £1.65 |
| 7500 + | £0.031 | £1.55 |
| *price indicative | ||
Packaging Options:
- RS Stock No.:
- 690-9893
- Mfr. Part No.:
- M34S75C4F2
- Brand:
- JAE
RoHS Status: Not Applicable
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

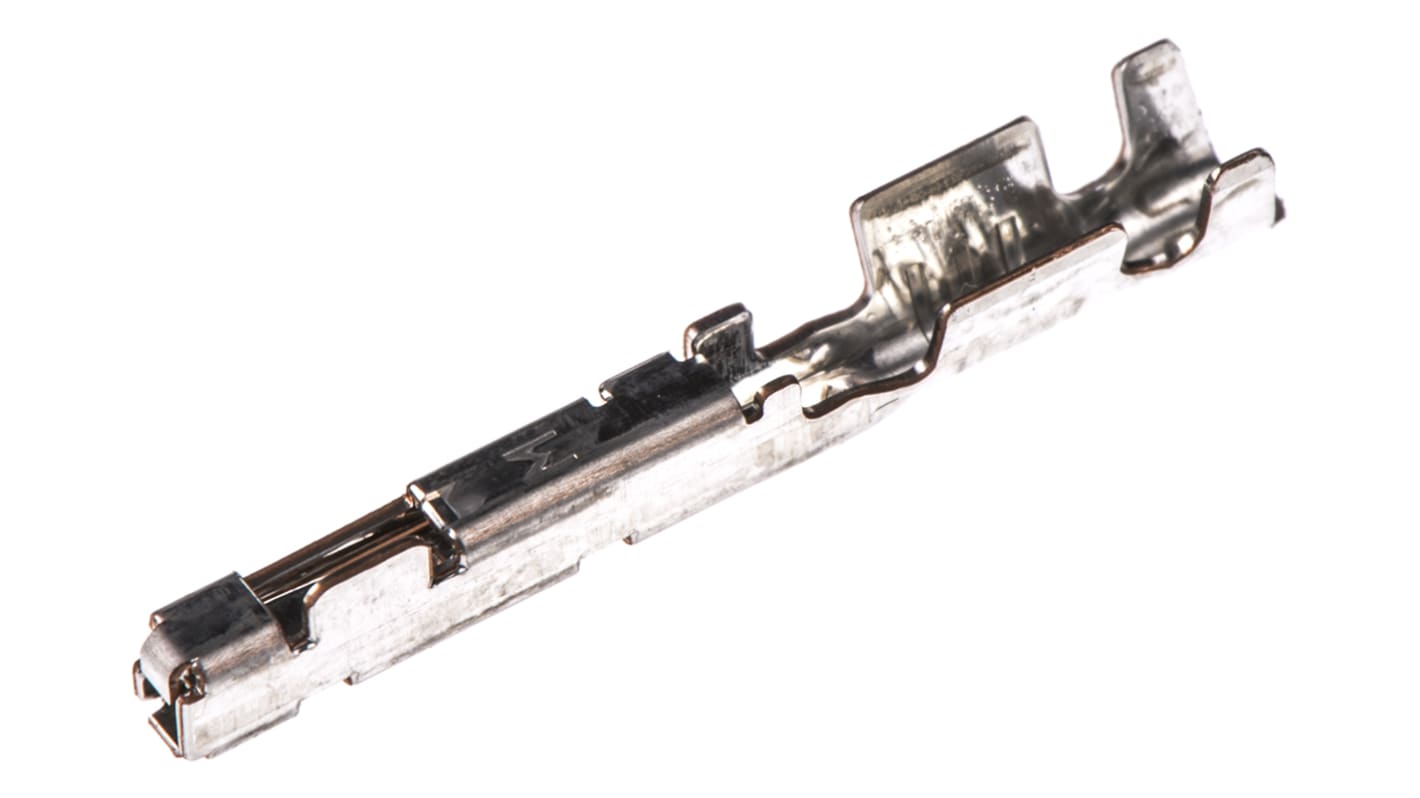

MX34 Crimp Contacts
JAE MX34 Series Automotive Connectors
The MX34 series connectors are compact, non-waterproof board-to-cable connectors, and are developed for automotive use.,The up to 40 poles reduces mating and unmating force to 80N or less and improves workability. Furthermore, automotive connector requirements such as the preset type of double locking mechanism and box type of pin header are satisfied
Socket contact with box-type pin header provides a durable combination to external forces
Contacts are highly resistant to twisting and equipped with a proven double leaf spring
The preset-type retainer needs to be completely inserted into the housing for the connector to be engaged, therefore any incomplete contact insertion is detected
The Lock spring is equipped with a bridge which protects the contact from external load
Contacts are highly resistant to twisting and equipped with a proven double leaf spring
The preset-type retainer needs to be completely inserted into the housing for the connector to be engaged, therefore any incomplete contact insertion is detected
The Lock spring is equipped with a bridge which protects the contact from external load
Specifications
| Attribute | Value |
| Gender | Female |
| For Use With | MX34 Connector Housing |
| Series | MX34 |
| Minimum Wire Size mm² | 0.5mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.75mm² |
| Contact Plating | Tin |
| Maximum Contact Resistance | 5mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
