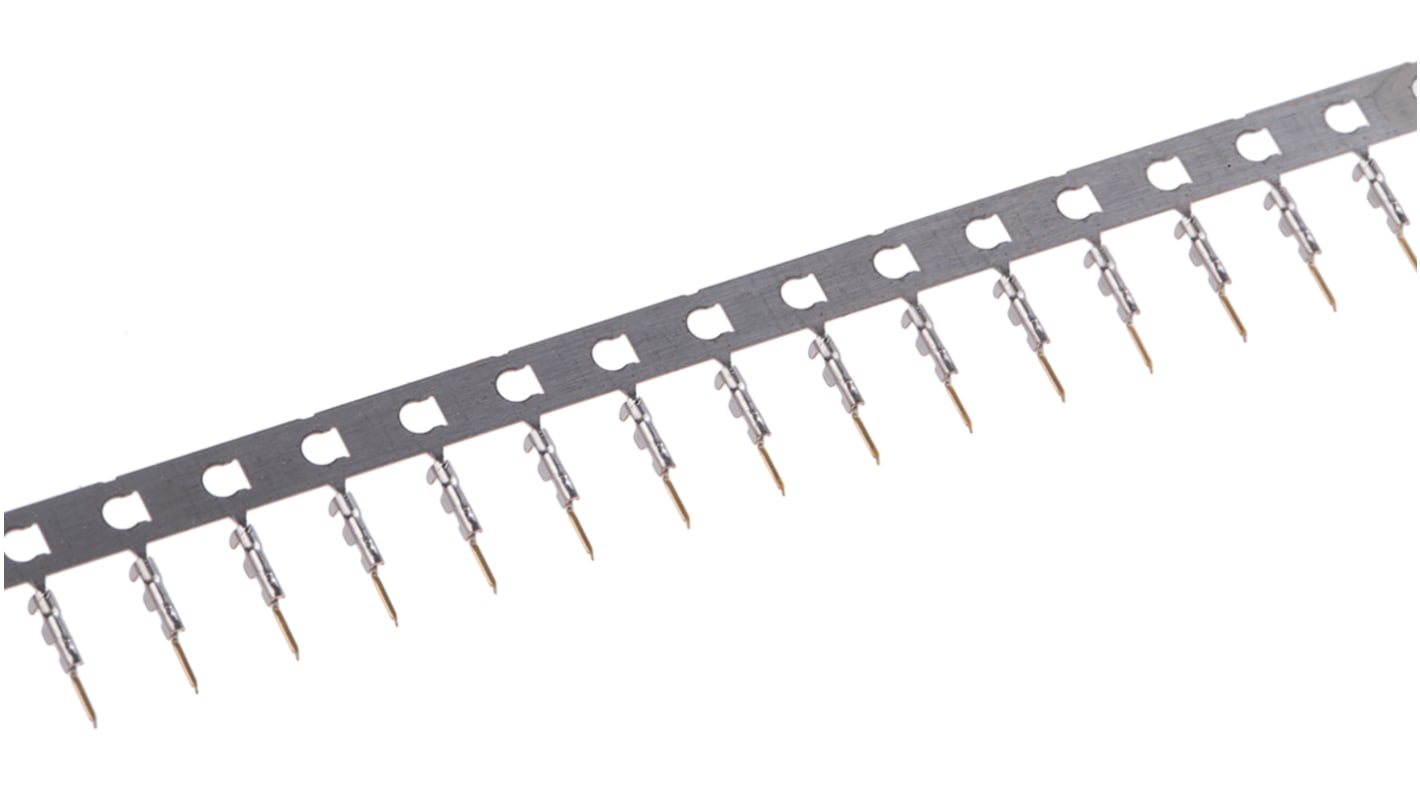

JAE FI-R Series Male Crimp Terminal, 36 AWG Min Crimp, 30 AWG Max
- RS Stock No.:
- 690-9329
- Mfr. Part No.:
- FI-RC3-1A-1E-15000
- Brand:
- JAE
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£11.10
(exc. VAT)
£13.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.111 | £11.10 |
| 500 - 900 | £0.095 | £9.50 |
| 1000 - 2400 | £0.083 | £8.30 |
| 2500 - 4900 | £0.072 | £7.20 |
| 5000 + | £0.067 | £6.70 |
*price indicative
- RS Stock No.:
- 690-9329
- Mfr. Part No.:
- FI-RC3-1A-1E-15000
- Brand:
- JAE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JAE | |
| Product Type | Crimp Terminal | |
| Gender | Male | |
| For Use With | FI-R Connector Housing | |
| Series | FI-R | |
| Current | 0.7A | |
| Minimum Wire Size AWG | 36AWG | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 30AWG | |
| Maximum Wire Size mm² | 0.05mm² | |
| Maximum Contact Resistance | 40mΩ | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand JAE | ||
Product Type Crimp Terminal | ||
Gender Male | ||
For Use With FI-R Connector Housing | ||
Series FI-R | ||
Current 0.7A | ||
Minimum Wire Size AWG 36AWG | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 30AWG | ||
Maximum Wire Size mm² 0.05mm² | ||
Maximum Contact Resistance 40mΩ | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
FI Crimp Terminals
1.25 mm LVDS Range
FI Series connectors are designed for board-to-board applications. Typical applications include notebook PCs, VCR’s, mobile phones and other consumer applications, where reduced space is a requirement.
