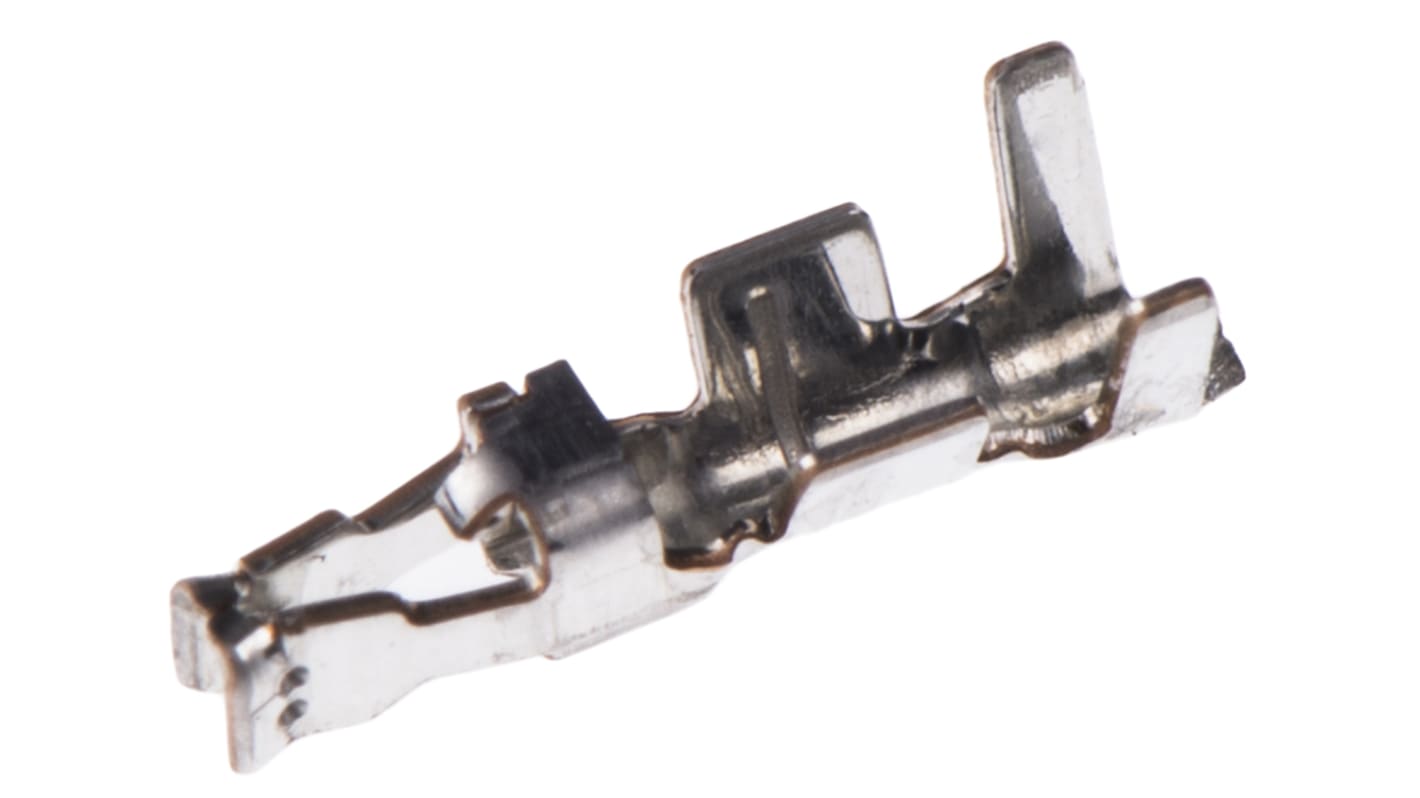

Hirose DF14 Series Female Crimp Terminal, 28 AWG Min Crimp, 26 AWG Max
- RS Stock No.:
- 688-4396
- Mfr. Part No.:
- DF14-2628SCF
- Brand:
- Hirose
Bulk discount available
Subtotal (1 pack of 50 units)*
£1.35
(exc. VAT)
£1.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 57,600 unit(s) shipping from 03 July 2026
- Plus 40,000 unit(s) shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.027 | £1.35 |
| 500 - 2450 | £0.02 | £1.00 |
| 2500 - 4950 | £0.019 | £0.95 |
| 5000 - 9950 | £0.018 | £0.90 |
| 10000 + | £0.016 | £0.80 |
*price indicative
- RS Stock No.:
- 688-4396
- Mfr. Part No.:
- DF14-2628SCF
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | DF14 Connector Housing | |
| Series | DF14 | |
| Current | 1A | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 26AWG | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size mm² | 0.12mm² | |
| Maximum Contact Resistance | 30mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With DF14 Connector Housing | ||
Series DF14 | ||
Current 1A | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 26AWG | ||
Contact Material Copper Alloy | ||
Maximum Wire Size mm² 0.12mm² | ||
Maximum Contact Resistance 30mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP
Crimp Contacts and Crimping Tool
This range of Crimp Contacts for the DF14 Series of connectors from Hirose are for use in Super Low Profile Crimping Sockets, see stock number 689-5750 typical.
1.25mm Wire to Board - Hirose DF14
A miniature wire-to-board interconnect system.
