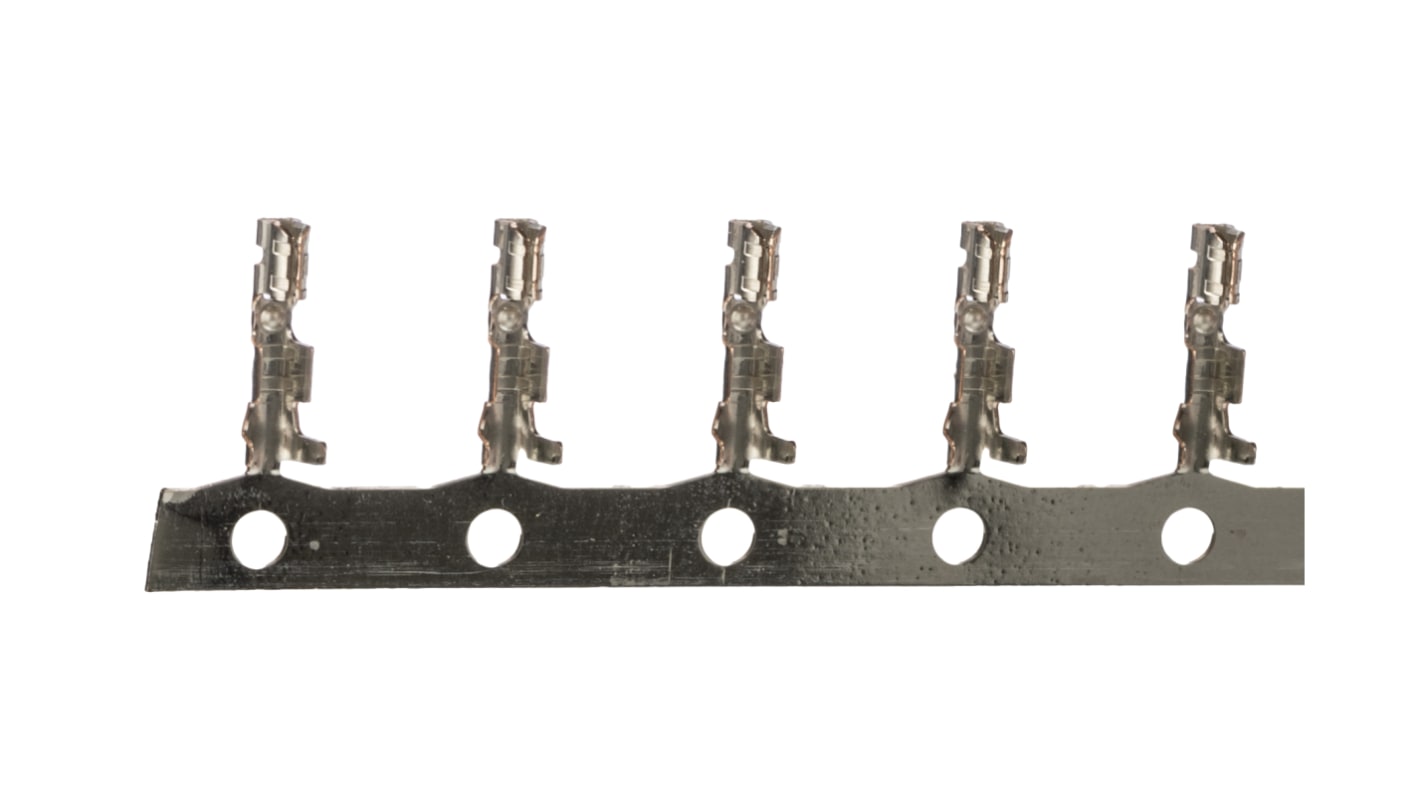

Molex SPOX Series Female Crimp Terminal, 28AWG Min, 22AWG Max
- RS Stock No.:
- 687-7152
- Mfr. Part No.:
- 08-70-1039
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£6.10
(exc. VAT)
£7.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 9,300 unit(s) shipping from 06 October 2025
- Plus 5,300 unit(s) shipping from 06 October 2025
- Plus 140,500 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.061 | £6.10 |
| 1000 - 2900 | £0.045 | £4.50 |
| 3000 + | £0.042 | £4.20 |
*price indicative
- RS Stock No.:
- 687-7152
- Mfr. Part No.:
- 08-70-1039
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | SPOX Connector Housing | |
| Series | SPOX | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 0.35mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 28AWG | |
| Contact Plating | Tin | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Material | Phosphor Bronze | |
| Series Number | 5263 | |
| Maximum Contact Resistance | 20mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Current | 3A | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With SPOX Connector Housing | ||
Series SPOX | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 0.35mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 28AWG | ||
Contact Plating Tin | ||
Maximum Wire Size AWG 22AWG | ||
Contact Material Phosphor Bronze | ||
Series Number 5263 | ||
Maximum Contact Resistance 20mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Current 3A | ||
Maximum Operating Temperature +105°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MY
Molex SPOX Receptacle and Pin Terminals
Our range SPOX receptacle and pin terminals are compatible for use with SPOX series plugs and receptacle housings.
Features and Benefits:
• Spring box style design
• High electrical reliability
• Crimp or compression termination interface style
• Wire size ranges from 28 AWG to 18 AWG
This design also protects the mating face area and prevents fish-hooking from wires during handling.
Features and Benefits:
• Spring box style design
• High electrical reliability
• Crimp or compression termination interface style
• Wire size ranges from 28 AWG to 18 AWG
This design also protects the mating face area and prevents fish-hooking from wires during handling.
Application:
• Communication
• Networking
• Networking
Molex Crimp Terminal, Female Gender, Tin-Plated Contact - SPOX Series - 08-70-1039
Want to make wire-to-board connections on your PCB that won't work loose? Choose this crimp terminal from Molex. It's designed for use with Molex Mini-SPOX 5264 series adapters (such as 679-5896) and carries signals from the cable to your circuit. Its phosphor bronze body is highly conductive and has low contact resistance, giving you a reliable connection. Thanks to tin plating, the unit is protected from rust, so you can count on it for long-lasting performance in damp or humid settings.
Features & Benefits
• Crimp termination is simple and doesn't need complex tools, saving time and hassle
• Comes in a pack of 100, so you'll have enough for lots of jobs
• Comes in a pack of 100, so you'll have enough for lots of jobs
Applications
• Machine building
• Robotics and automation systems
• Vehicle electronics
• Robotics and automation systems
• Vehicle electronics
How do I remove this crimp terminal?
To remove the terminal safely and quickly, without damaging your wire, reach for a specially designed crimp extraction tool (822-7720).
3.96mm Molex SPOX Range
The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.
