TE Connectivity Economy Power Series Female Crimp Terminal, 22AWG Min, 18AWG Max
- RS Stock No.:
- 683-1295
- Mfr. Part No.:
- 1123721-1
- Brand:
- TE Connectivity
42500 In stock - FREE next working day delivery available
1000 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 50)
£0.14
(exc. VAT)
£0.17
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 450 | £0.14 | £7.00 |
| 500 - 1450 | £0.12 | £6.00 |
| 1500 - 3700 | £0.112 | £5.60 |
| 3750 - 7450 | £0.107 | £5.35 |
| 7500 + | £0.103 | £5.15 |
| *price indicative | ||
- RS Stock No.:
- 683-1295
- Mfr. Part No.:
- 1123721-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TE Connectivity Economy Power Series Crimp Contact
Economy Power (EP) Series Crimp Sockets Contact made from phosphor bronze with Pre-Tin plated mating area.
745-5104 3.95 (.156) Loose piece Crimp Socket Contact can accept a wire size 18 - 22 AWG (0.3 - 0.89 mm²), insulation diameter range 1.7 - 3.0 mm.

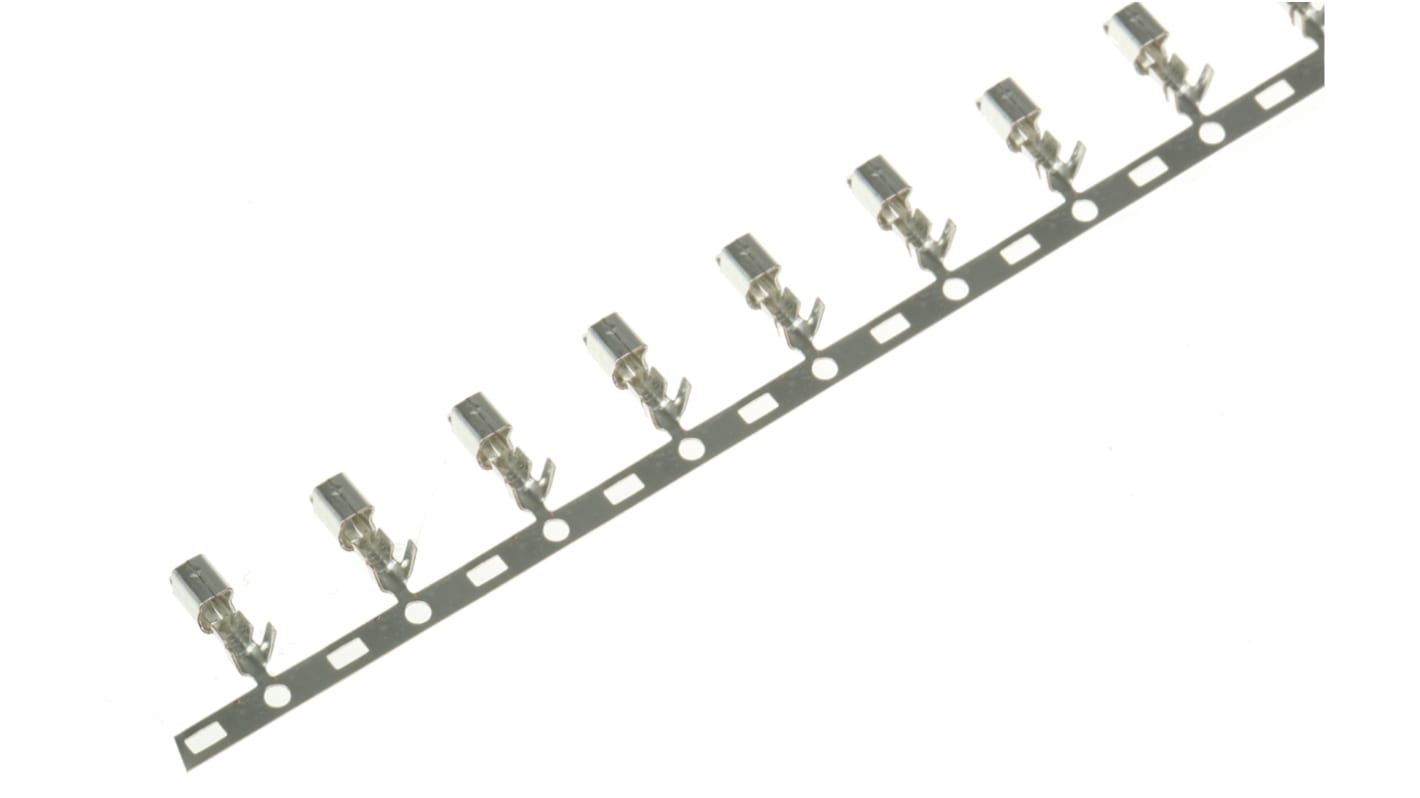

683-1295 3.95 (.156) Strip Crimp Socket Contact can accept a wire size 18 - 22 AWG (0.3 - 0.89 mm²), insulation diameter range 1.7 - 3.0 mm.
811-6844 2.5 (.1) Strip Crimp Socket Contact can accept stranded wire size 26 - 22 AWG (0.13 - 0.36 mm²), insulation diameter range .051 - .075 inch (1.3 - 1.9 mm).
811-7014 2.5 (.1) Strip Crimp Socket Contact can accept stranded wire size 24 - 20 AWG (0.2 - 0.56 mm²), insulation diameter range .051 - .075 inch (1.3 - 1.9 mm).
811-6904 3.95 (.156) Strip Crimp Socket Contact can accept a wire size 22 - 18 AWG (0.26 - 1.04 mm²), insulation diameter range .067 - .114 inch (1.7 - 2.9 mm).
745-5104 3.95 (.156) Loose piece Crimp Socket Contact can accept a wire size 18 - 22 AWG (0.3 - 0.89 mm²), insulation diameter range 1.7 - 3.0 mm.
683-1295 3.95 (.156) Strip Crimp Socket Contact can accept a wire size 18 - 22 AWG (0.3 - 0.89 mm²), insulation diameter range 1.7 - 3.0 mm.
811-6844 2.5 (.1) Strip Crimp Socket Contact can accept stranded wire size 26 - 22 AWG (0.13 - 0.36 mm²), insulation diameter range .051 - .075 inch (1.3 - 1.9 mm).
811-7014 2.5 (.1) Strip Crimp Socket Contact can accept stranded wire size 24 - 20 AWG (0.2 - 0.56 mm²), insulation diameter range .051 - .075 inch (1.3 - 1.9 mm).
811-6904 3.95 (.156) Strip Crimp Socket Contact can accept a wire size 22 - 18 AWG (0.26 - 1.04 mm²), insulation diameter range .067 - .114 inch (1.7 - 2.9 mm).
TE Connectivity 3.96 mm EP (Economy Power) Interconnection System
EP (Economy Power) wire to board power connectors with a 3.96 mm centreline for use in power circuit applications that need a large current carrying capacity. The EP connector system has a 250VAC voltage rating up to 7.5A and consists of receptacle housings and PCB headers
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | Economy Power Connector Housing |
| Series | Economy Power |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Contact Material | Phosphor Bronze |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +105°C |
