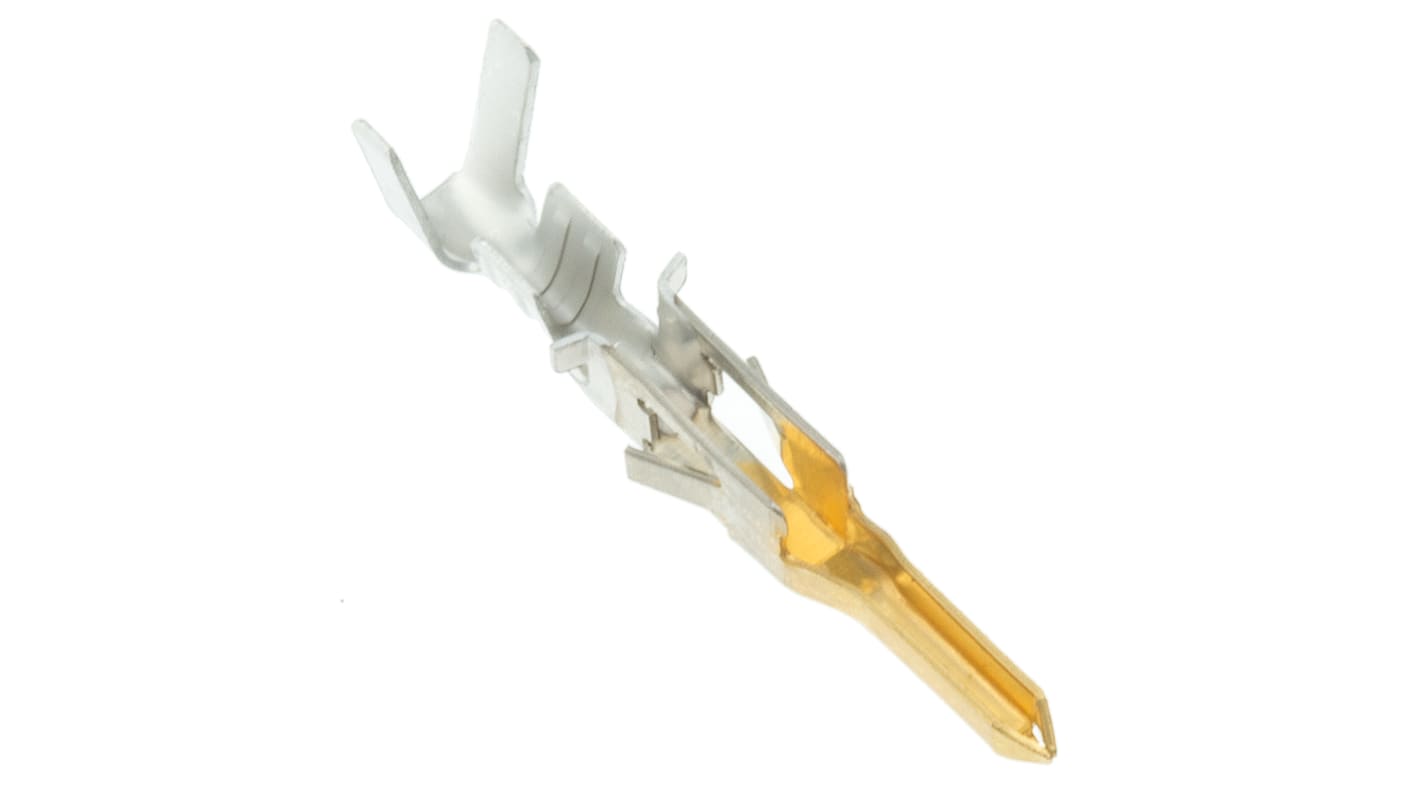

Molex Mini-Fit Series Male Crimp Terminal, 24AWG Min, 18AWG Max
- RS Stock No.:
- 679-5760
- Mfr. Part No.:
- 39-00-0220
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£47.70
(exc. VAT)
£57.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3,400 unit(s) shipping from 06 October 2025
- Plus 5,300 unit(s) shipping from 06 October 2025
- Plus 20,200 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.477 | £47.70 |
| 1000 - 2900 | £0.451 | £45.10 |
| 3000 - 7400 | £0.429 | £42.90 |
| 7500 - 14900 | £0.406 | £40.60 |
| 15000 + | £0.382 | £38.20 |
*price indicative
- RS Stock No.:
- 679-5760
- Mfr. Part No.:
- 39-00-0220
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Male | |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings | |
| Series | Mini-Fit | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Termination Method | Crimp | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Phosphor Bronze | |
| Series Number | 5558 | |
| Maximum Contact Resistance | 10mΩ | |
| Maximum Current | 9A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Male | ||
For Use With Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings | ||
Series Mini-Fit | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Termination Method Crimp | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Phosphor Bronze | ||
Series Number 5558 | ||
Maximum Contact Resistance 10mΩ | ||
Maximum Current 9A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Molex Mini-Fit Series Crimp Terminal, 0.2mm² Minimum Wire size, 9A Maximum Current - 39-00-0219
This crimp terminal is a vital component designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It is a male crimp terminal, constructed from phosphor bronze and featuring gold plating for enhanced conductivity. This terminal accommodates wire sizes ranging from 18 AWG to 24 AWG and is suitable for crimp termination methods, ensuring secure and reliable connections in a variety of applications.
Features & Benefits
• Designed for crimping in power connectivity solutions
• Robust gold-plated terminals enhance electrical performance
• Phosphor bronze contact ensures durability and reliability
• Supports multiple wire sizes for versatile applications
• Capable of carrying a maximum current of 9A safely
• Suitable for temperatures from -40°C to +105°C
• Robust gold-plated terminals enhance electrical performance
• Phosphor bronze contact ensures durability and reliability
• Supports multiple wire sizes for versatile applications
• Capable of carrying a maximum current of 9A safely
• Suitable for temperatures from -40°C to +105°C
Applications
• Used with Mini-Fit Jr. plug housing for modular interconnections
• Compatible with Mini-Fit TPA and BMI plug housings for varied configurations
• Ideal for automation systems requiring reliable high current connections
• Utilised in electrical enclosures demanding compact and durable connectors
• Compatible with Mini-Fit TPA and BMI plug housings for varied configurations
• Ideal for automation systems requiring reliable high current connections
• Utilised in electrical enclosures demanding compact and durable connectors
What current capacity can this connector handle?
It can safely carry a maximum of 9A, making it suitable for high current applications.
How does the termination method impact the installation process?
The crimp termination method provides a secure and reliable connection, simplifying the installation process by ensuring a strong mechanical connection without the need for soldering.
What wire insulation diameters are compatible with this terminal?
This terminal accommodates wire insulation diameters between 1.30mm and 3.10mm, allowing for a wide
Is it suitable for use in extreme temperatures?
Yes, it operates effectively within a temperature
What materials are used in its construction?
It utilises phosphor bronze for the contact and has gold plating, optimising its conductivity and corrosion resistance.
Molex Minifit Jr.™ Series
