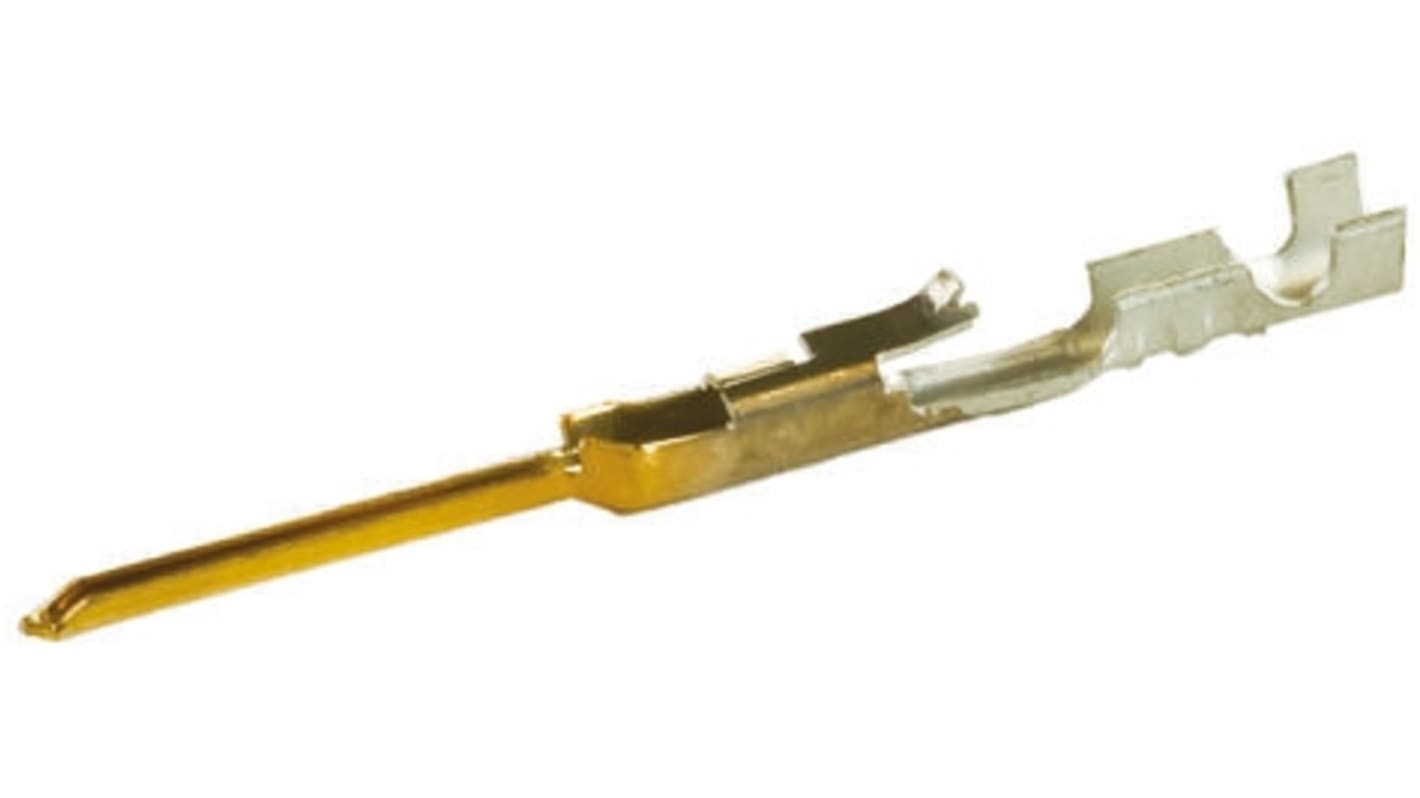

Molex SL Series Male Crimp Terminal, 24AWG Min, 22AWG Max

Name: Molex SL Series Male Crimp Terminal, 24AWG Min, 22AWG Max
Brand: Molex
SKU: 679-4773
Price: 0.30 GBP
Availability: InStock

Bulk discount available

Subtotal (1 pack of 100 units)*

£25.00

(exc. VAT)

£30.00

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Male
	For Use With	SL Connector Housing
	Series	SL
	Minimum Wire Size mm²	0.2mm²
	Termination Method	Crimp
	Maximum Wire Size mm²	0.3mm²
	Contact Plating	Gold
	Minimum Wire Size AWG	24AWG
	Maximum Wire Size AWG	22AWG
	Contact Material	Phosphor Bronze
	Series Number	70021
	Maximum Contact Resistance	15mΩ
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Male
	For Use With SL Connector Housing
	Series SL
	Minimum Wire Size mm² 0.2mm²
	Termination Method Crimp
	Maximum Wire Size mm² 0.3mm²
	Contact Plating Gold
	Minimum Wire Size AWG 24AWG
	Maximum Wire Size AWG 22AWG
	Contact Material Phosphor Bronze
	Series Number 70021
	Maximum Contact Resistance 15mΩ
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C
