MPN

Molex KK 254 Series Female Crimp Terminal, 30AWG Min, 22AWG Max

RS Stock No.:: 678-3149
Distrelec Article No.:: 304-09-687
Mfr. Part No.:: 08-55-0102
Brand:: Molex

Molex KK 254 Series Female Crimp Terminal, 30AWG Min, 22AWG Max

Bulk discount available

Subtotal (1 pack of 100 units)*

£13.40

(exc. VAT)

£16.10

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

23,300 unit(s) ready to ship
Plus 6,800 unit(s) ready to ship from another location
Plus 31,300 unit(s) shipping from 08 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
100 - 900	£0.134	£13.40
1000 - 2900	£0.127	£12.70
3000 - 7400	£0.121	£12.10
7500 - 14900	£0.114	£11.40
15000 +	£0.107	£10.70

*price indicative

RS Stock No.:: 678-3149
Distrelec Article No.:: 304-09-687
Mfr. Part No.:: 08-55-0102
Brand:: Molex

2759 Series Crimp Terminals

KK 254 2759 Series crimp terminal contacts are for use with KK 2695 Series housings and KK 5051 Series housings on 22-30 AWG conductors. Suitable for use in a range of applications these connectors are robust and reliable for assurance when used in your design.

2759 Series Crimp Terminal contacts include:
• 670-2263 Hot Tin Dipped, on reel
• 170-7138 Hot Tin Dipped, bulk reel
• 172-9178 Hot Tin Dipped, loose
• 670-2266 Select Gold with Nickel overall, on reel
• 170-7139 Select Gold with Nickel overall, bulk reel
• 678-3149 Select Gold with Nickel overall, loose
• 670-2276 Select Gold with Gold Flash overall, on reel
• 170-7141 Select Gold with Gold Flash overall, bulk reel
• 678-3155 Select Gold with Gold Flash overall, loose

Appropriate tooling for 2759 Series Crimp Terminal contacts:
For Crimp Tool see stock number 663-4246
For Insertion Tool see stock number 710-6528
For Extraction Tool see stock number 173-3278

Molex Female Crimp Terminal, 22 to 30AWG, 20mΩ - 2759 Series - 08-55-0102

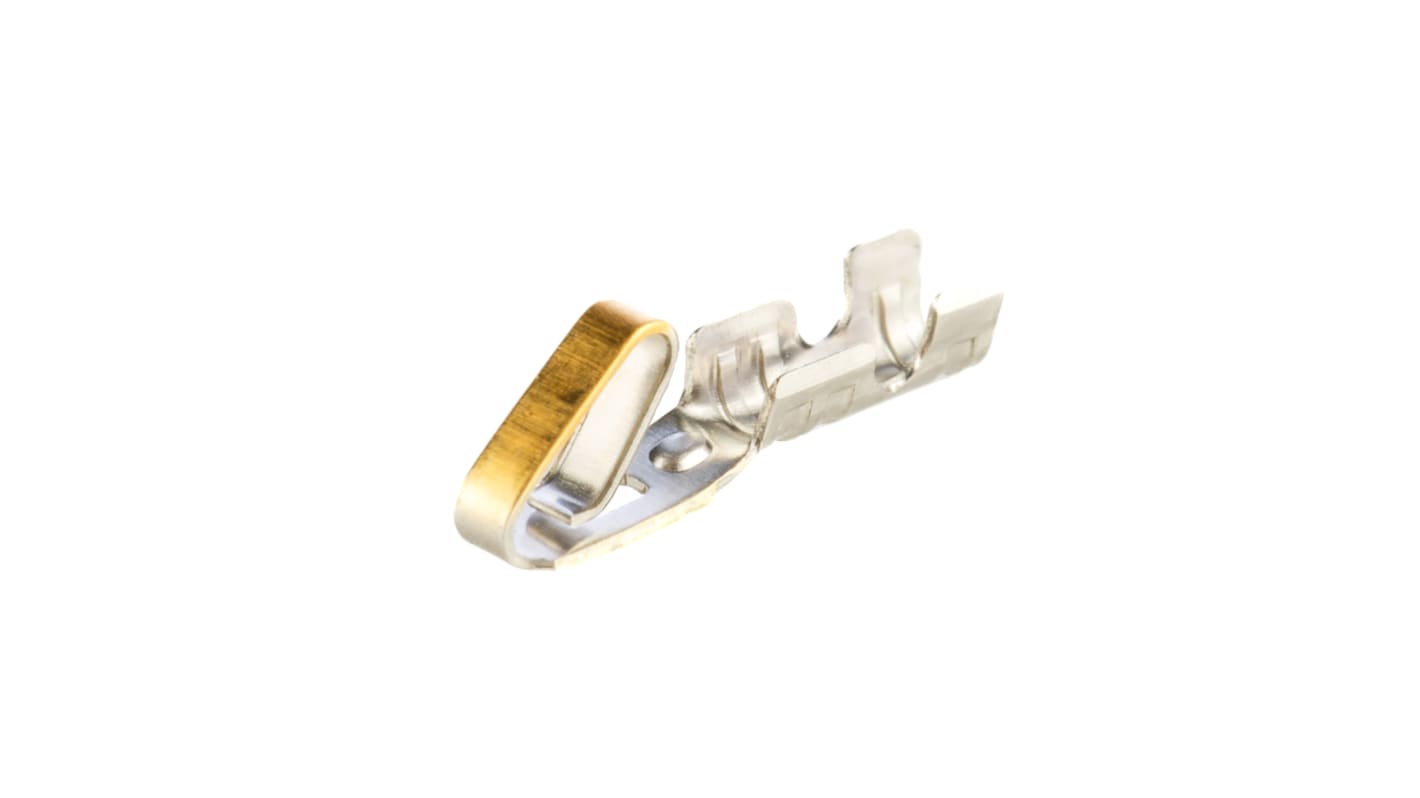

This female crimp terminal from Molex is on hand to keep your signalling wires connected. It has a dual cantilever head to create multiple contact points and make a reliable connection with wires and circuit boards. A ribbed terminal body keeps your wires in place, preventing accidental connection during installation and disconnection during use. The contact surfaces are gold-plated to maximise conductivity and reduce corrosion, while the metal housing is nickel-plated to increase resistance to wear.

Features & Benefits

• Wide operating temperature range of 0°C to +75°C for use in demanding environments
• Crimp-style termination for quick and reliable installation
• Made with low-halogen materials to improve safety and durability
• 100-pack to reduce need for reordering

Applications

• Automotive industry
• Safety and security devices
• Data and communications
• Portable medical equipment

What size wires does this crimp terminal accept?

This crimp terminal accepts wires sized 0.05 to 0.35mm² and 22 to 30AWG (American Wire Gauge).

Can I use this crimp terminal in domestic appliances?

Yes, this crimp terminal is useful in a wide range of small appliances, including smoke alarms and games consoles. It can also be used with circuits in automotive and office devices.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	For Use With	KK 254 Connector Housing
	Series	KK 254
	Minimum Wire Size mm²	0.05mm²
	Maximum Wire Size mm²	0.35mm²
	Termination Method	Crimp
	Minimum Wire Size AWG	30AWG
	Contact Plating	Gold
	Maximum Wire Size AWG	22AWG
	Contact Material	Brass
	Series Number	2759
	Maximum Contact Resistance	20mΩ
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+75°C
