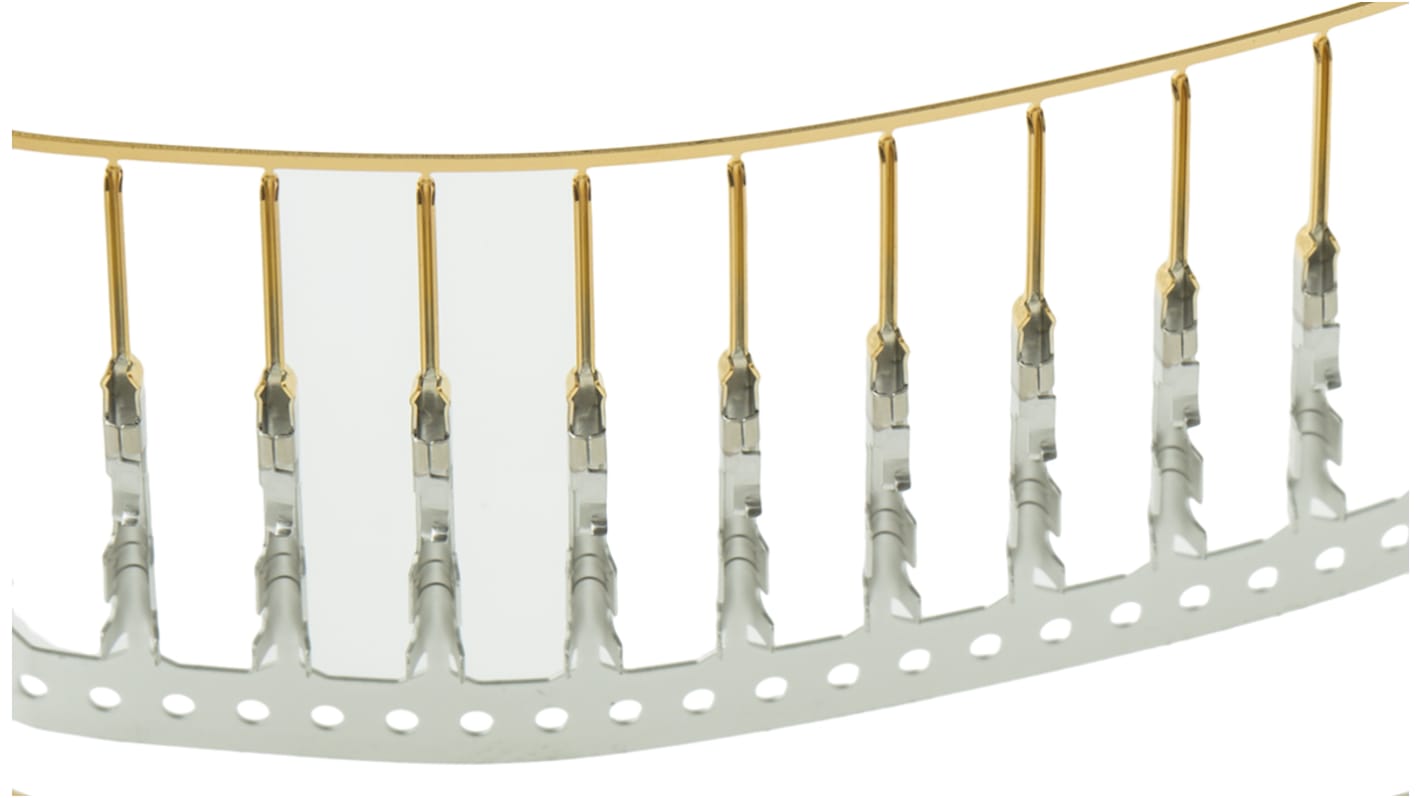

Molex SL Series Male Crimp Terminal, 24AWG Min, 22AWG Max
- RS Stock No.:
- 670-6274
- Mfr. Part No.:
- 16-02-0081
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£13.70
(exc. VAT)
£16.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 400 unit(s) shipping from 06 October 2025
- Plus 27,200 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.137 | £13.70 |
| 1000 - 2900 | £0.082 | £8.20 |
| 3000 - 7400 | £0.065 | £6.50 |
| 7500 - 14900 | £0.062 | £6.20 |
| 15000 + | £0.06 | £6.00 |
*price indicative
- RS Stock No.:
- 670-6274
- Mfr. Part No.:
- 16-02-0081
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Male | |
| For Use With | SL Connector Housing | |
| Series | SL | |
| Minimum Wire Size mm² | 0.2mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.3mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 22AWG | |
| Series Number | 70021 | |
| Maximum Contact Resistance | 15mΩ | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Male | ||
For Use With SL Connector Housing | ||
Series SL | ||
Minimum Wire Size mm² 0.2mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.3mm² | ||
Minimum Wire Size AWG 24AWG | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 22AWG | ||
Series Number 70021 | ||
Maximum Contact Resistance 15mΩ | ||
- COO (Country of Origin):
- US
Molex Series SL Crimp Terminal, Gold Contact Plating, 0.2-0.3mm² Wire size - 16-02-0115
This crimp terminal belongs to the SL connector housing category. Designed for signal and wire-to-wire applications, it accommodates wire sizes ranging from 0.2 to 0.3 mm² (24 to 22 AWG). This terminal features high-performance contacts made from phosphor bronze and is optimised for reliability in diverse environments.
Features & Benefits
• Selective gold plating enhances conductivity and prevents corrosion
• Designed to operate safely in temperatures from -40 to +105 °C
• Minimises contact resistance with a maximum limit of 15mΩ
• Designed to operate safely in temperatures from -40 to +105 °C
• Minimises contact resistance with a maximum limit of 15mΩ
Applications
• Used with SL Single Row Crimp Housings and CPA retainers
• Suitable for automation and signalling in machinery and devices
• Ideal for completing wire-to-wire connections in tight spaces
• Ideal for requiring low resistance crimp connectors
• Suitable for automation and signalling in machinery and devices
• Ideal for completing wire-to-wire connections in tight spaces
• Ideal for requiring low resistance crimp connectors
What materials are involved in the construction of these terminals?
The terminals are expertly crafted from phosphor bronze, ensuring durability and electrical efficiency, while the contact surfaces are plated with 0.38μm of selective gold to maximise conductivity and longevity.
How does the temperature range affect the performance of these terminals?
Operating within a range of -40 to +105 °C ensures reliable performance across varied environments, allowing these terminals to maintain function in extreme conditions without degradation.
Can these terminals be utilised for both signal and power applications?
Yes, designed for signal and wire-to-wire connections, they are versatile enough to be used in applications ranging from low power signalling to more demanding electronic tasks.
2.54mm Molex C-Grid/SL Series
