Our range SPOX receptacle and pin terminals are compatible for use with SPOX series plugs and receptacle housings.

Features and Benefits:

• Spring box style design
• High electrical reliability
• Crimp or compression termination interface style
• Wire size ranges from 28 AWG to 18 AWG

This design also protects the mating face area and prevents fish-hooking from wires during handling.

• Communication
• Networking

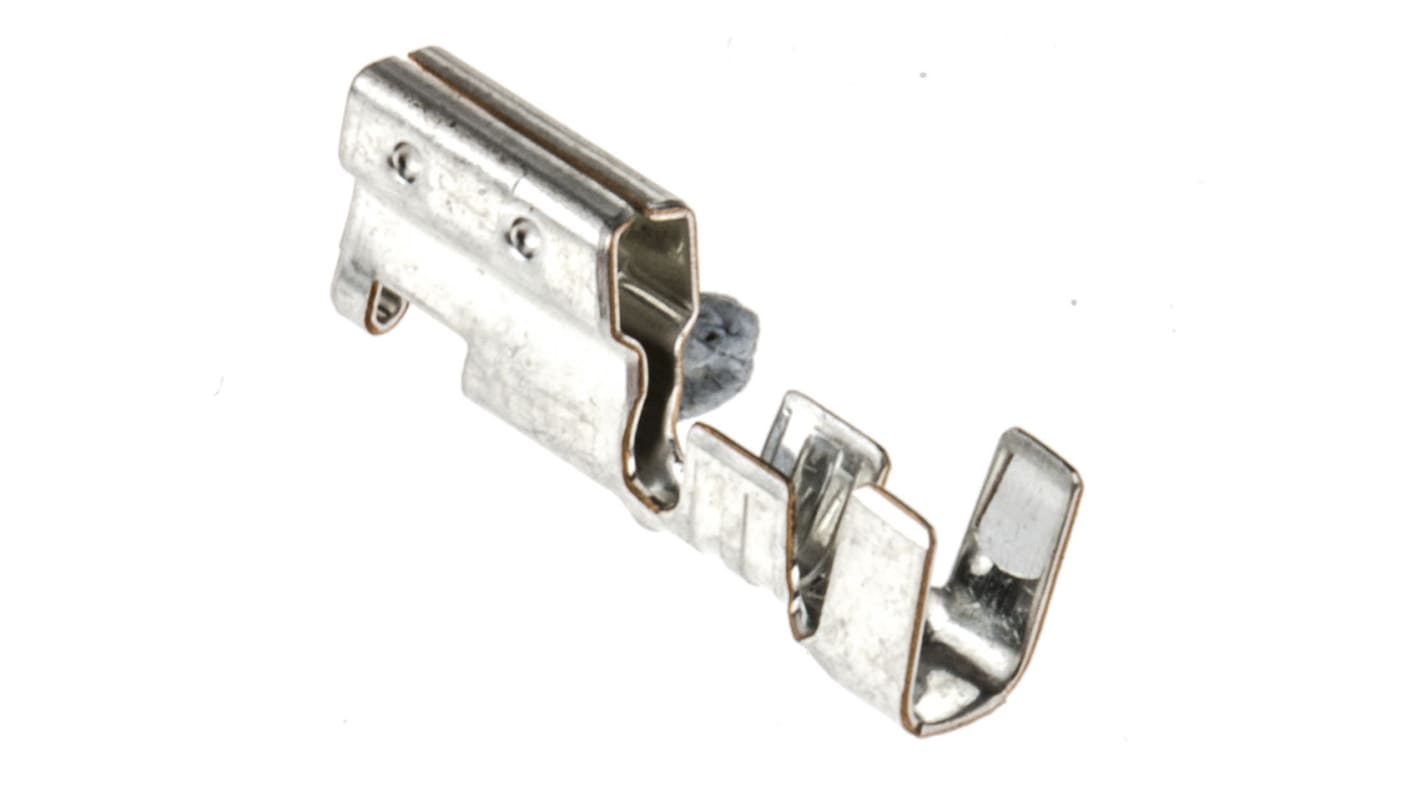

Use this crimp terminal from Molex to safely link wires to printed circuit boards. The unit acts as a connection channel for stranded conductors to be linked to connector housings so you can connect them to PCB headers. Its phosphor-bronze contact is conductive and has a low electrical resistance of 10mΩ, giving you a stable and reliable connection. Tin plating enhances the contact's resistance to corrosion, making it a practical choice for long-term use, even in damp conditions. Terminals like this are regularly used in commercial equipment like printers and photocopying machines.

• Crimp termination method is simple and effective
• Light weight of 0.2g so it's easy to handle
• Broad wire size range of 24 to 18AWG for versatile use
• Spring box design protects the mating area and prevents wires snagging during installation

• Network switches and routers
• Consumer electronics industry
• Laboratory equipment

Yes, you can reuse this crimp terminal if you carefully remove it with an appropriate extraction tool, without damaging its contacts.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.
