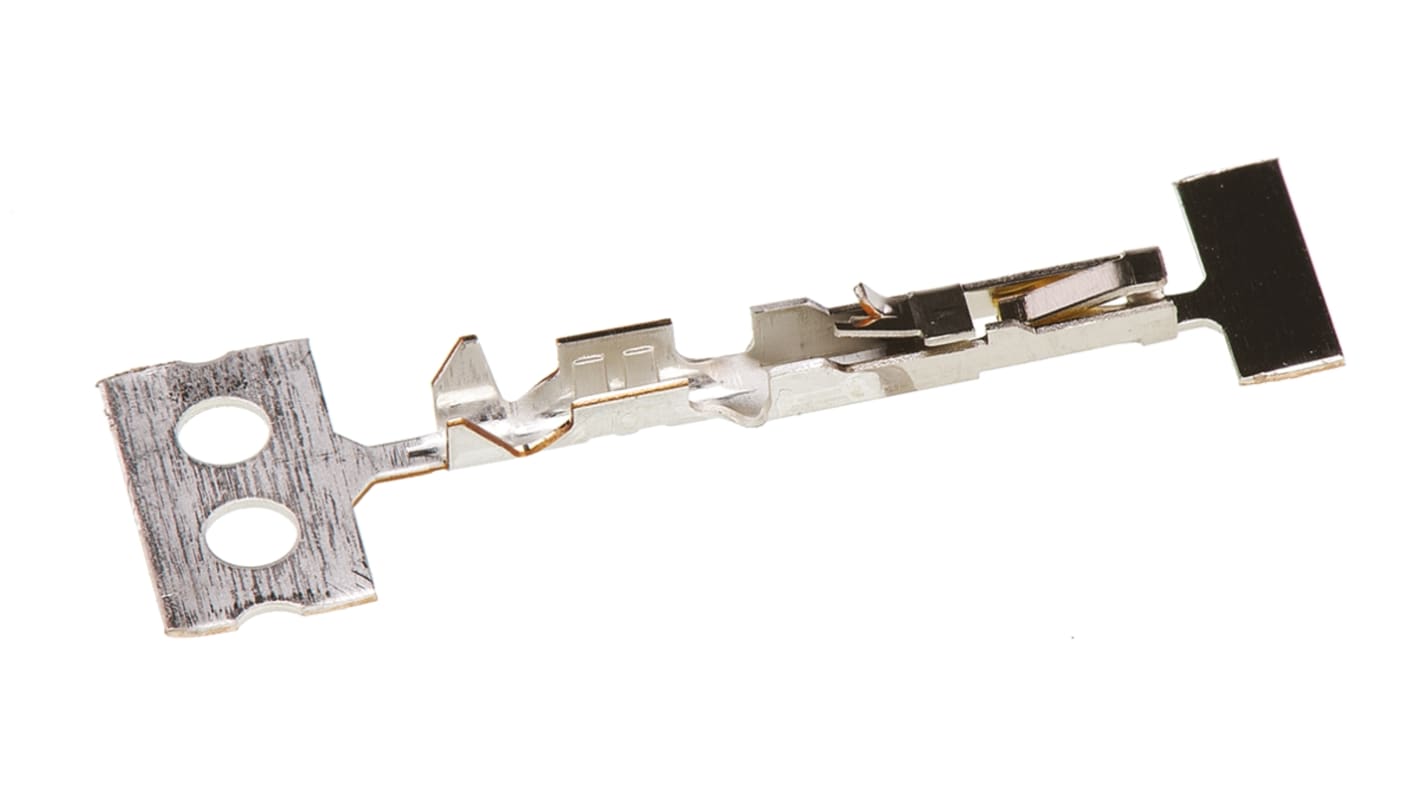

Molex 90119 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max

View all Crimp Contacts
Bulk discount available

Subtotal (1 pack of 100 units)*

£22.20

(exc. VAT)

£26.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13,600 unit(s) ready to ship
  • Plus 1,600 unit(s) ready to ship from another location
  • Plus 130,800 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
100 - 900£0.222£22.20
1000 - 2900£0.196£19.60
3000 - 7400£0.185£18.50
7500 - 14900£0.175£17.50
15000 +£0.17£17.00

*price indicative

Packaging Options:
An image of a Molex Crimp Tool
Molex Logo
Engineered for Accuracy: Molex Crimp Tools
Trust Molex tools for perfect crimps every time. Designed for accuracy, comfort, and long-term performance, they’re the ideal choice for professional grade connections.
Shop here
RS Stock No.:
666-1080
Mfr. Part No.:
90119-0110
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Gender

Female

Product Type

Crimp Terminal

For Use With

C-Grid III Connector Housing

Current

3A

Series

90119

Contact Plating

Gold

Minimum Wire Size AWG

24AWG

Minimum Wire Size mm²

0.2mm²

Maximum Wire Size AWG

22AWG

Maximum Wire Size mm²

0.35mm²

Contact Material

Phosphor Bronze

Maximum Contact Resistance

20mΩ

Minimum Operating Temperature

-55°C

Termination Type

Crimp

Maximum Operating Temperature

105°C

Standards/Approvals

No

COO (Country of Origin):
SG

Molex C-Grid III Female Crimp Contact, 24 to 22AWG - 90119 Series - 90119-2110


This crimp contact from Molex conducts electrical current to a PCB (printed circuit board). It features a box design and uniform locking system that's compatible with a variety of housings. The phosphor-bronze contact material is gold-plated so it won't corrode and provides excellent conductivity. This is a female connector that fits wire sizes ranging from 22 to 24AWG (American Wire Gauge) and offers a high voltage capacity for either alternating or direct currents (AC/DC).

• Crimp termination method provides dependable, gas-tight connections that avoid alloys for greater strength

• Complies with EU environmental and safety standards

• Reduced risk of toxic fumes in case of fire due to low halogen content

• For use with C-Grid III connector housings

Applications


• Consumer electronics

• Commercial vehicles

Should I use a crimp connector or a solder connector?


Soldering involves heating a filler metal alloy of lead, tin, brass or silver to join cable and connector together. Over time, this filler metal can degrade and cause a loss of reliability. A crimp connector is Faster and uses pressure to create an air-tight seal and a stronger, more dependable connection that will last.

Molex C-Grid III Crimp Terminals - 90119 Series


C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are MADE from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.

For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.

Features:


• Current Rating: 3A max

• Working Voltage: 350 Vac/dc max

• Contact Plating: Selective Gold over Nickel or Tin over Nickel

• Insulation Material Headers: 15% Glass-filled Polyester (PBT)

• Housing: Polyphenylene Oxide

• Header Pin Size: 0.64 square mm

• Recommended PCB Hole Diameter: 1mm

Application:


• Consumer Electronics

• Commercial Vehicles

2.54mm Molex C-Grid III Range


Standards

DIN 41651; HE13/14
