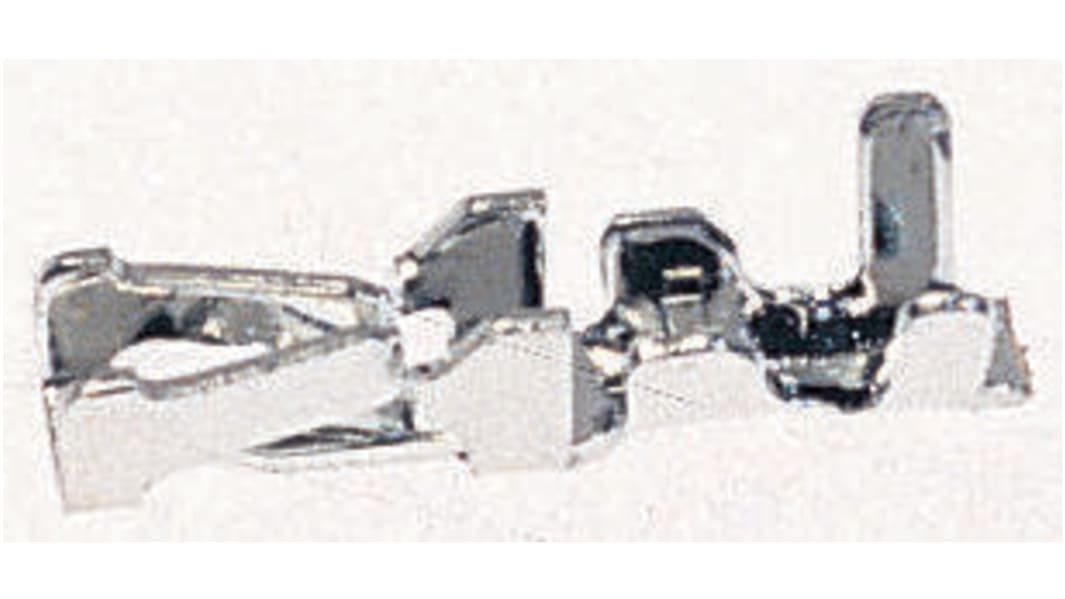

HARWIN M22 Series Female Crimp Terminal, 30 AWG Min Crimp, 24 AWG Max
- RS Stock No.:
- 547-3245
- Mfr. Part No.:
- M22-3050046
- Brand:
- HARWIN
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£8.70
(exc. VAT)
£10.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 8,200 unit(s) shipping from 25 November 2026
- Plus 19,600 unit(s) shipping from 02 December 2026
- Plus 28,300 unit(s) shipping from 10 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.087 | £8.70 |
| 1000 - 2900 | £0.066 | £6.60 |
| 3000 - 7400 | £0.055 | £5.50 |
| 7500 - 14900 | £0.052 | £5.20 |
| 15000 + | £0.049 | £4.90 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£15.40
(exc. VAT)
£18.48
(inc. VAT)
- RS Stock No.:
- 547-3245
- Mfr. Part No.:
- M22-3050046
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | M22 Connector Housing | |
| Series | M22 | |
| Current | 1A | |
| Minimum Wire Size AWG | 30AWG | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 24AWG | |
| Maximum Contact Resistance | 20mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With M22 Connector Housing | ||
Series M22 | ||
Current 1A | ||
Minimum Wire Size AWG 30AWG | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 24AWG | ||
Maximum Contact Resistance 20mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- TW
Crimp Terminals
Tin plated phosphor bronze, accepts 28 to 24awg (diameter over insulation 1.2mm)
Recommended wire strip length 3.25mm
