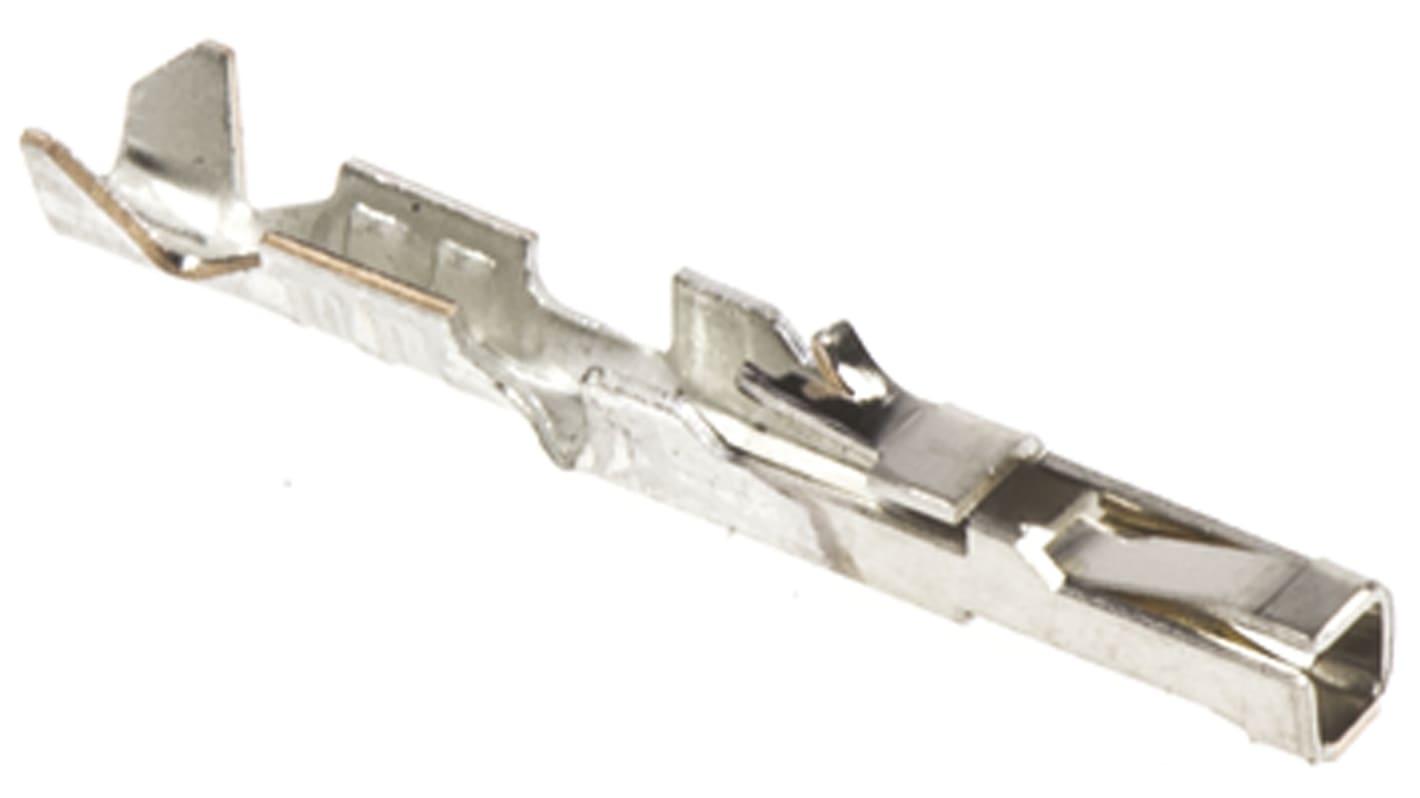

Molex C-Grid III Series Female Crimp Terminal, 28AWG Min, 26AWG Max
- RS Stock No.:
- 360-6875
- Mfr. Part No.:
- 90119-2121
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£16.10
(exc. VAT)
£19.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15,500 unit(s) ready to ship
- Plus 1,000 unit(s) ready to ship from another location
- Plus 11,200 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 - 900 | £0.161 | £16.10 |
1000 - 2900 | £0.127 | £12.70 |
3000 + | £0.122 | £12.20 |
*price indicative
- RS Stock No.:
- 360-6875
- Mfr. Part No.:
- 90119-2121
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Gender | Female | |
For Use With | C-Grid III Connector Housing | |
Series | C-Grid III | |
Minimum Wire Size mm² | 0.08mm² | |
Termination Method | Crimp | |
Maximum Wire Size mm² | 0.1mm² | |
Contact Plating | Gold | |
Minimum Wire Size AWG | 28AWG | |
Maximum Wire Size AWG | 26AWG | |
Contact Material | Phosphor Bronze | |
Series Number | 90119 | |
Select all | ||
---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With C-Grid III Connector Housing | ||
Series C-Grid III | ||
Minimum Wire Size mm² 0.08mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.1mm² | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 26AWG | ||
Contact Material Phosphor Bronze | ||
Series Number 90119 | ||
Molex C-Grid III Crimp Terminals - 90119 Series
C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.
Features:
• Current Rating: 3A max
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm
Application:
• Consumer Electronics
• Commercial Vehicles
• Commercial Vehicles
Molex Female Crimp Terminal, 26AWG Maximum Wire Size - C-Grid III Series - 90119-2121
Use this crimp terminal from Molex to safely connect your stranded cables to PCBs. The component is made of phosphor bronze material, so it makes a stable and reliable connection. Gold plating provides protection from rust and oxidation for long-term performance. As the crimp terminal can accommodate a wire size range of 26 to 28AWG (American Wire Gauge), it's a versatile connection solution. It also has multiple connection points, meaning that you can use it for different housings. You'll find it used in the computer and electronics industries.
• Light weight of 0.73g so it's easy to handle and won't strain your equipment
• Wide operating temperature of -55°C to +125°C for use in demanding conditions
• Strong contact retention force of 15N for a secure connection
• Low contact resistance of 20mΩ for stable signal transmission
• Wide operating temperature of -55°C to +125°C for use in demanding conditions
• Strong contact retention force of 15N for a secure connection
• Low contact resistance of 20mΩ for stable signal transmission
Applications
• Consumer electronics
• Industrial and commercial vehicles
• Personal computers
• Industrial and commercial vehicles
• Personal computers
What are the electrical properties of this terminal?
This crimp terminal has a voltage rating of 350V (AC/DC) and a current rating of 3A. This means it's an energy-efficient connection solution and is suitable for use with low-voltage applications.
Standards
DIN 41651; HE13/14
2.54mm Molex C-Grid III Range
