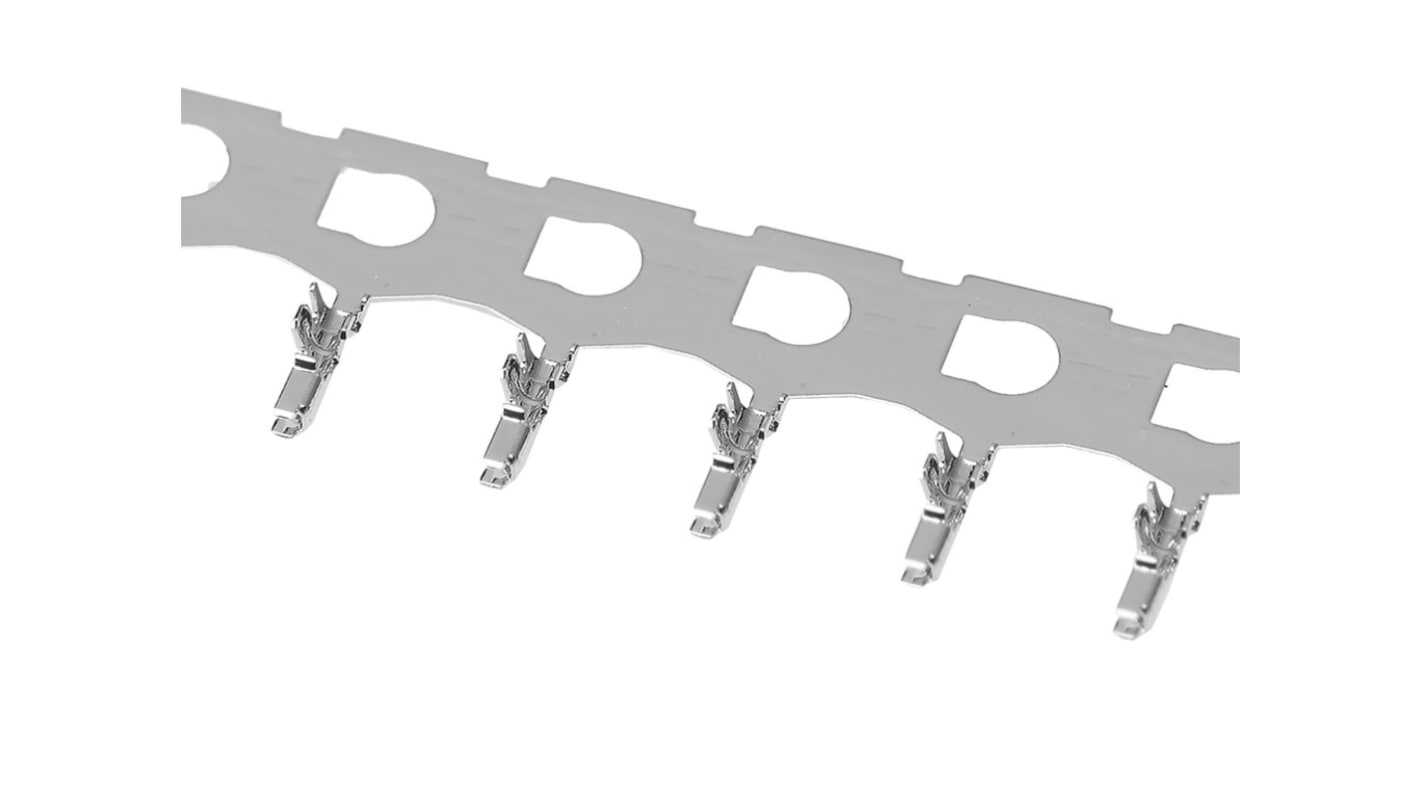

Molex Zero-Hachi Series Female Crimp Contact, Compression, Crimp Termination, 30AWG Min, 28AWG Max
- RS Stock No.:
- 240-8482
- Mfr. Part No.:
- 214720-5000
- Brand:
- Molex
Subtotal (1 reel of 40000 units)*
£1,480.00
(exc. VAT)
£1,760.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 40000 + | £0.037 | £1,480.00 |
*price indicative
- RS Stock No.:
- 240-8482
- Mfr. Part No.:
- 214720-5000
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | Zero-Hachi Receptacle Housing Link:214719 | |
| Series | Zero-Hachi | |
| Termination Method | Compression, Crimp | |
| Contact Plating | Matte Tin | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 28AWG | |
| Contact Material | Copper Alloy | |
| Series Number | 214720 | |
| Maximum Current | 1A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With Zero-Hachi Receptacle Housing Link:214719 | ||
Series Zero-Hachi | ||
Termination Method Compression, Crimp | ||
Contact Plating Matte Tin | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 28AWG | ||
Contact Material Copper Alloy | ||
Series Number 214720 | ||
Maximum Current 1A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- KR
The Molex the Zero-Hachi female crimp terminal is wire to board connector system made of copper alloy and has matte tin (Sn) plating .The maximum volatge is 30V AC (RMS)/DC.
Provides robust PCB retention and protects the connector against breakage when wires are wrenched upward
Dual-Point Contact Design secures the connector’s electrical contact
Enables engineers to design slimmer devices
Offers better mating retention and reliability of header and harness
Dual-Point Contact Design secures the connector’s electrical contact
Enables engineers to design slimmer devices
Offers better mating retention and reliability of header and harness
