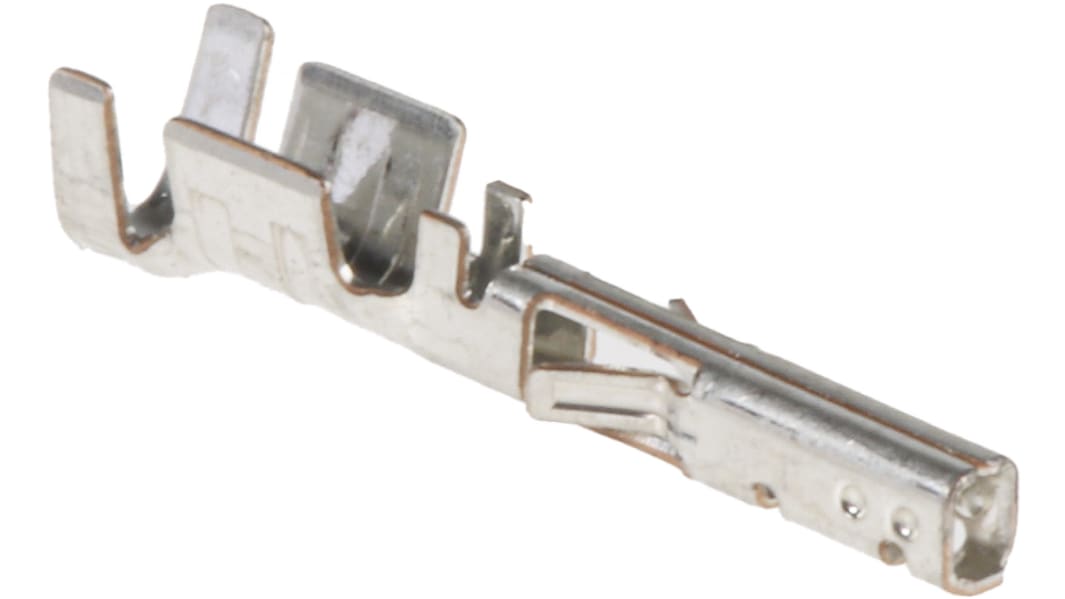

Molex Micro-Fit 3.0 Series Female Crimp Terminal, 24AWG Min, 20AWG Max
- RS Stock No.:
- 233-3009
- Mfr. Part No.:
- 43030-0007
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 100 units)*
£12.30
(exc. VAT)
£14.80
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 214,300 left, ready to ship
- Plus 25,900 left, ready to ship from another location
- Plus 84,000 left, shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 400 | £0.123 | £12.30 |
| 500 - 900 | £0.11 | £11.00 |
| 1000 - 4900 | £0.096 | £9.60 |
| 5000 + | £0.092 | £9.20 |
*price indicative
- RS Stock No.:
- 233-3009
- Mfr. Part No.:
- 43030-0007
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | Micro-Fit 3.0 and Micro-Fit BMI Connector Housings | |
| Series | Micro-Fit 3.0 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 20AWG | |
| Series Number | 43030 | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current | 8.5A | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With Micro-Fit 3.0 and Micro-Fit BMI Connector Housings | ||
Series Micro-Fit 3.0 | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 0.5mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 24AWG | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 20AWG | ||
Series Number 43030 | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Current 8.5A | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- CN
Molex Micro-Fit 3.0 mm Crimp Contacts
Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility
Features and Benefits
• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility
Molex Crimp Terminal, Phosphor Bronze Contact Material, 24 to 20AWG Wire Sizes - Micro-Fit 3.0 Series - 43030-0007
Join wires in a flash with this crimp terminal from Molex. The arms fold firmly over your conductors and are fixed in place using compression, meaning you get a secure attachment without the need for soldering. Metal tangs ensure the unit stays locked into your housing. As the square-shaped terminal provides multiple contact points, it helps keep your wire-to-wire and wire-to-board connections reliable.
Features & Benefits
• Takes wire sizes between 24 and 20AWG for versatility
• Phosphor-bronze construction boosts conductivity and resistance to fatigue
• Tin plating keeps corrosion and oxidation at bay, so your connections stay in good nick
• Phosphor-bronze construction boosts conductivity and resistance to fatigue
• Tin plating keeps corrosion and oxidation at bay, so your connections stay in good nick
Applications
• Automotive industry
• Consumer appliances
• Telecommunications networks
• Medical devices
• Vending machines
• Consumer appliances
• Telecommunications networks
• Medical devices
• Vending machines
How do I get a high-quality crimp on this terminal?
If you're after a strong and secure connection use a dedicated crimping tool, such as Molex's ratcheting hand tool (501-061).
Molex Micro-Fit 3.0 Series
