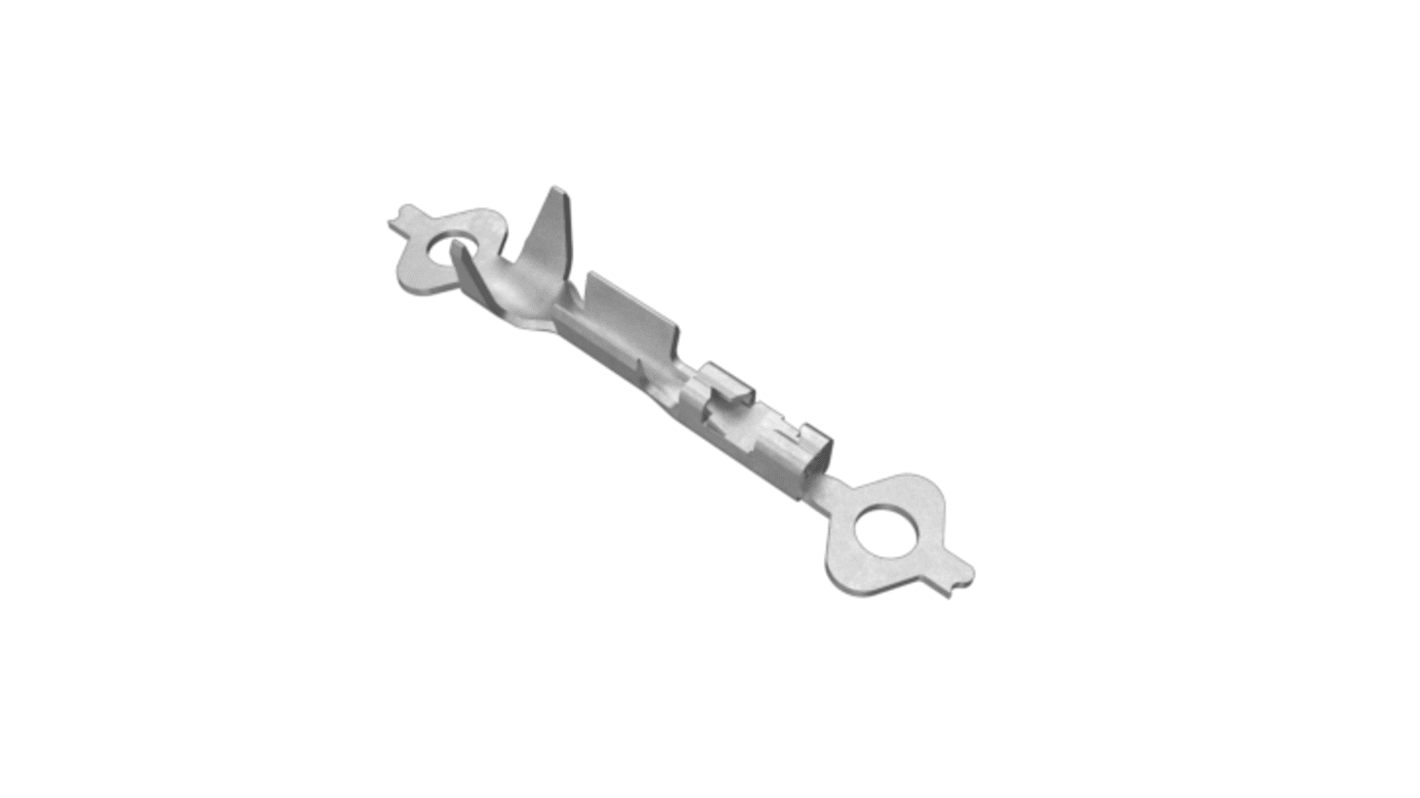

Amphenol Communications Solutions 47649 Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max
- RS Stock No.:
- 218-0832
- Mfr. Part No.:
- 47649-000LF
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 tape of 50 units)*
£4.45
(exc. VAT)
£5.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5,200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 50 - 450 | £0.089 | £4.45 |
| 500 - 950 | £0.081 | £4.05 |
| 1000 - 2450 | £0.07 | £3.50 |
| 2500 - 4950 | £0.063 | £3.15 |
| 5000 + | £0.059 | £2.95 |
*price indicative
- RS Stock No.:
- 218-0832
- Mfr. Part No.:
- 47649-000LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Gender | Female | |
| Product Type | Crimp Terminal | |
| For Use With | PCB Header | |
| Current | 3A | |
| Series | 47649 | |
| Minimum Wire Size AWG | 26AWG | |
| Contact Plating | Gold over Nickel | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Material | Beryllium Copper Alloy | |
| Maximum Contact Resistance | 2mΩ | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UR E66906, CSA LR46923 | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Gender Female | ||
Product Type Crimp Terminal | ||
For Use With PCB Header | ||
Current 3A | ||
Series 47649 | ||
Minimum Wire Size AWG 26AWG | ||
Contact Plating Gold over Nickel | ||
Maximum Wire Size AWG 22AWG | ||
Contact Material Beryllium Copper Alloy | ||
Maximum Contact Resistance 2mΩ | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UR E66906, CSA LR46923 | ||
- COO (Country of Origin):
- FR
The Amphenol ICC PV wire-to-board connector system is a versatile and modular system that able to meet all the board-to-board, board to- wire, wire-to-wire applications where high density, outstanding electrical and mechanical performances are required. It has unique dual-metal PV receptacle contact that ensures durability up to 1000 cycles. It has beryllium copper spring that ensures high normal force at the mating interface. It has polarized mating geometry to prevent mismatching. It has keyed MINI-LATCH housing to provide polarization and prevent mismating.
Resistance (Contact) 15MΩ max
Resistance (Insulation) 5000MΩ
Voltage Rating 1000V rms
Material Contact Copper Alloy
Operating Temperature Range -65°C to +125°C
