Wurth Elektronik WR-WTB Series Female Crimp Terminal, 28 AWG Min Crimp, 18 AWG Max
- RS Stock No.:
- 213-8636
- Mfr. Part No.:
- 64500113722DEC
- Brand:
- Wurth Elektronik
Subtotal (1 pack of 50 units)*
£5.40
(exc. VAT)
£6.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,150 unit(s) ready to ship
- Plus 50 unit(s) ready to ship from another location
- Plus 3,250 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.108 | £5.40 |
*price indicative
- RS Stock No.:
- 213-8636
- Mfr. Part No.:
- 64500113722DEC
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Gender | Female | |
| Product Type | Crimp Terminal | |
| For Use With | WR-WTB 3.96 mm Female Terminal Housing | |
| Series | WR-WTB | |
| Current | 3A | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 125°C | |
| Length | 9.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Gender Female | ||
Product Type Crimp Terminal | ||
For Use With WR-WTB 3.96 mm Female Terminal Housing | ||
Series WR-WTB | ||
Current 3A | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 125°C | ||
Length 9.5mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

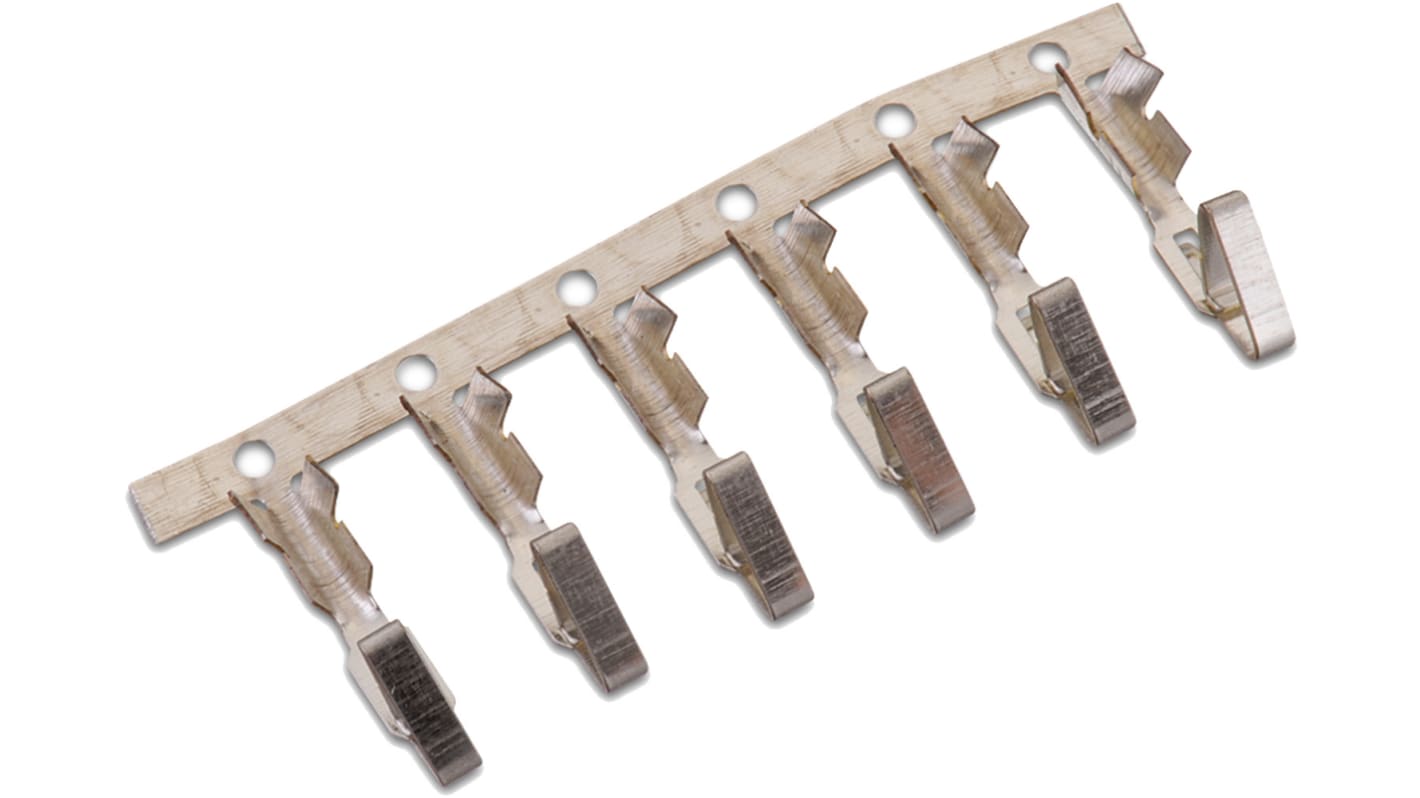

The Wurth Elektronik WR-WTB 3.96 mm female crimp contact has 22 to 18 (AWG) stranded wire section. It has stamped contact type. It is made up of copper alloy.
It works on the operating temperature from -40°C up to +105°C
It is RoHS compliant
