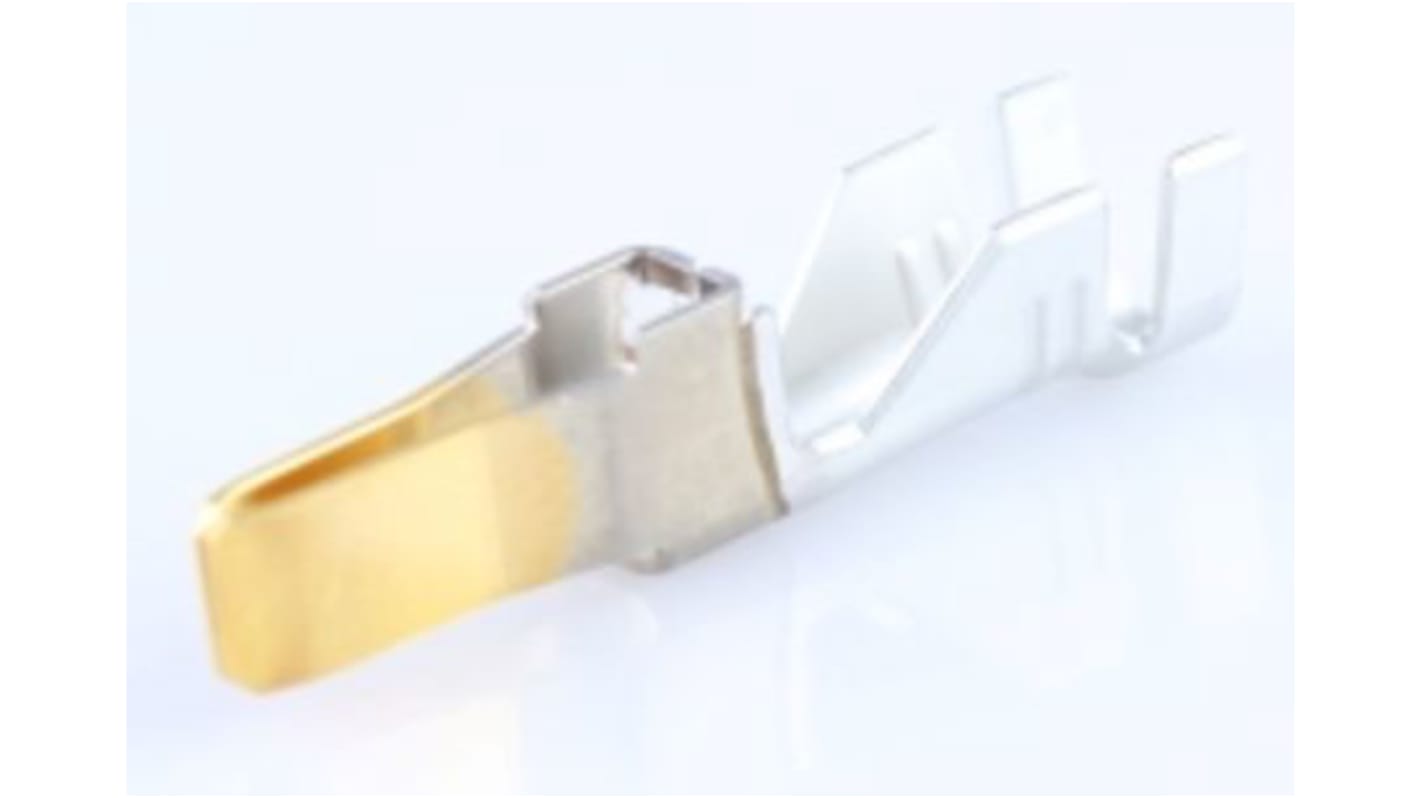

Molex Mini-Fit Series Male Crimp Terminal, Crimp or Compression Termination, 12AWG Max

This crimp terminal from Molex belongs to the Mini-Fit series, designed for high-performance electrical connections. This male crimp terminal accommodates wire sizes ranging from 10 AWG to 12 AWG, making it versatile for various applications. With a robust crimp or compression termination method, it ensures strong and reliable connections while handling high currents.

• Maximum current rating of 50.0A per contact for effective power transfer
• Gold plating provides superior conductivity and corrosion resistance
• High Performance Alloy (HPA) material ensures durability and reliability
• Low-halogen formula meets industry compliance standards
• Compatible with Mini-Fit connectors for flexible applications
• Designed for use with power connectors, enhancing versatility in setups

• Utilised in power distribution systems for reliable connections
• Used in wire-to-board and wire-to-wire connections
• Compatible with various Mini-Fit connector housings for tailored solutions
• Suitable for requiring high current connections

Ensure wire insulation diameter does not exceed 5.30mm and use appropriate tools for crimping to maintain connection integrity. Follow the current ratings based on wire size to prevent overheating.

The gold mating plating provides excellent electrical conductivity and enhances resistance to oxidation, while the tin termination plating ensures a strong bond with the wire, ensuring long-term reliability.

Using the designated hand crimp tool for 12-10 AWG ensures optimal crimp quality. Additionally, fine-adjust applicators can accommodate varying insulation diameters.

Yes, the low-halogen and compliance with RoHS regulations make it suitable for applications in environments that demand stringent safety and environmental standards.
