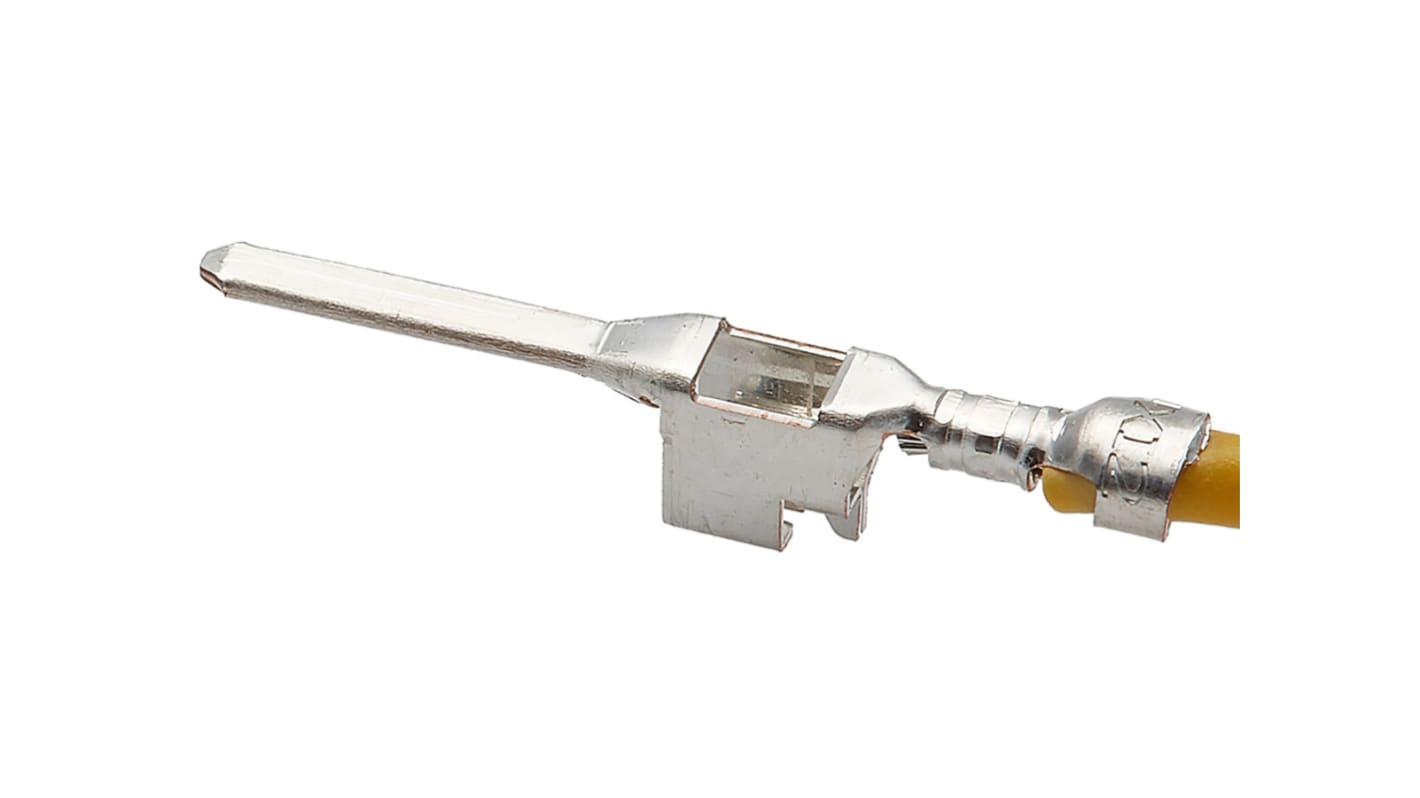

Molex CP-6.5 Series Male Crimp Terminal, Compression, Crimp Termination, 20AWG Min, 16AWG Max
- RS Stock No.:
- 190-9038
- Mfr. Part No.:
- 205033-8000
- Brand:
- Molex
Subtotal (1 reel of 3200 units)*
£185.60
(exc. VAT)
£224.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3200 + | £0.058 | £185.60 |
*price indicative
- RS Stock No.:
- 190-9038
- Mfr. Part No.:
- 205033-8000
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Male | |
| For Use With | 203438 CP-6.5 Plug Housing | |
| Series | CP-6.5 | |
| Termination Method | Compression, Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Contact Material | Copper Alloy | |
| Series Number | 205033 | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Male | ||
For Use With 203438 CP-6.5 Plug Housing | ||
Series CP-6.5 | ||
Termination Method Compression, Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 16AWG | ||
Contact Material Copper Alloy | ||
Series Number 205033 | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- IN
Leveraging full keying and colour-pairing features, foolproof CP-6.5 W-to-B and W-to-W connectors and harnesses enhance user-safety while speeding up consumer and industrial interconnect assembly applications.
CP-6.5 Wire-to-Wire Crimp Terminal, Male, 16-20 AWG, Reel
