Molex Micro-Fit Series Female Crimp Terminal, Compression, Crimp Termination, 24AWG Min, 20AWG Max
- RS Stock No.:
- 188-8747
- Distrelec Article No.:
- 110-78-616
- Mfr. Part No.:
- 43030-0001
- Brand:
- Molex
Bulk discount available
Subtotal (1 reel of 12000 units)*
£444.00
(exc. VAT)
£528.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 156,000 unit(s) ready to ship
- Plus 24,000 unit(s) ready to ship from another location
- Plus 252,000 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 12000 - 12000 | £0.037 | £444.00 |
| 24000 - 24000 | £0.035 | £420.00 |
| 36000 + | £0.033 | £396.00 |
*price indicative
- RS Stock No.:
- 188-8747
- Distrelec Article No.:
- 110-78-616
- Mfr. Part No.:
- 43030-0001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | 43025, 43645 Micro-Fit 3.0 Receptacle Housings, 44133 Micro-Fit BMI Panel Mount Receptacle Housings | |
| Series | Micro-Fit | |
| Termination Method | Compression, Crimp | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 20AWG | |
| Series Number | 43030 | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current | 8.5A | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With 43025, 43645 Micro-Fit 3.0 Receptacle Housings, 44133 Micro-Fit BMI Panel Mount Receptacle Housings | ||
Series Micro-Fit | ||
Termination Method Compression, Crimp | ||
Minimum Wire Size AWG 24AWG | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 20AWG | ||
Series Number 43030 | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Current 8.5A | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- US

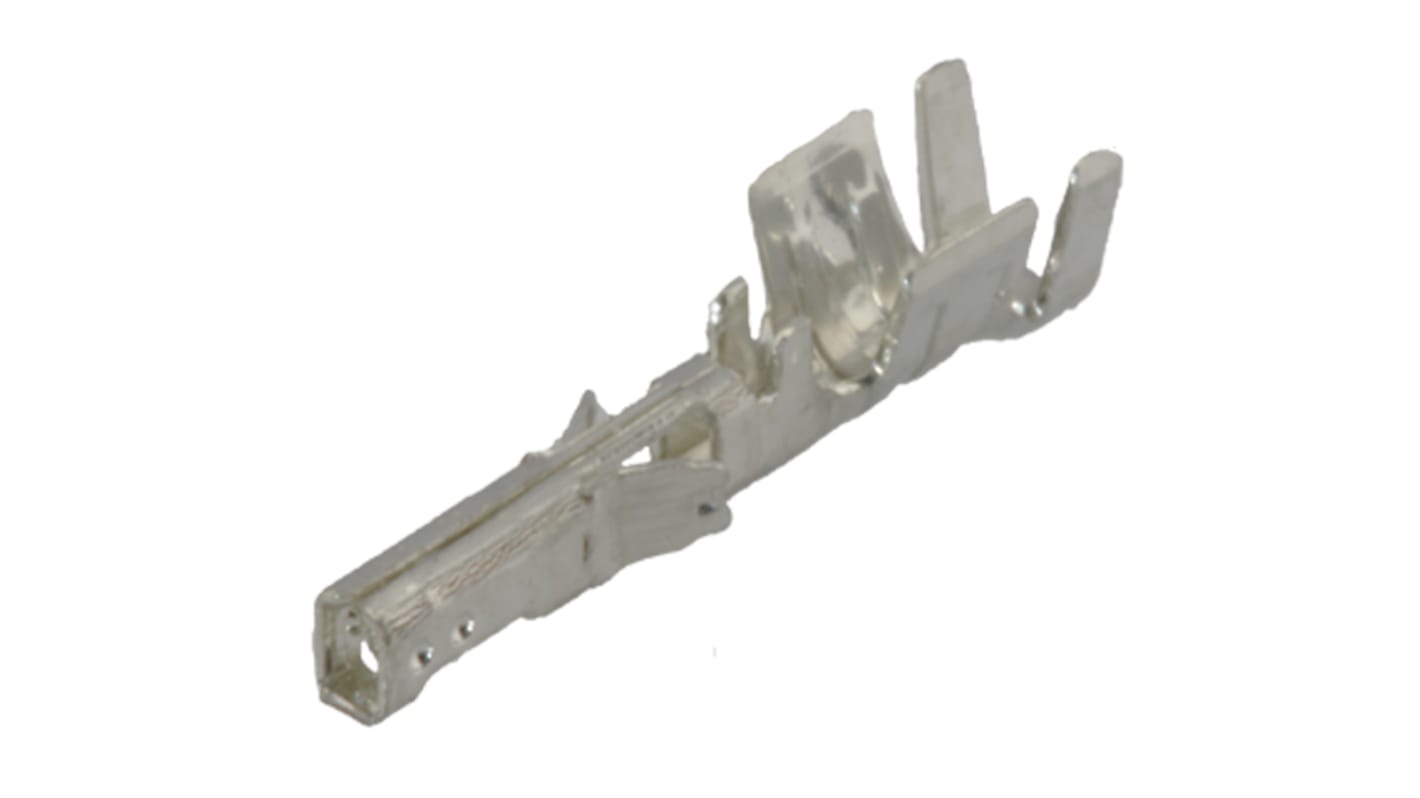

Molex Crimp Terminal, Phosphor Bronze Construction, 10mΩ Maximum Contact Resistance - Micro-Fit Series - 43030-0001
To make a safe link between a cable and your circuit board, count on this crimp terminal from Molex. It's an easy way for you to join stranded wires to a single contact that you can attach to a PCB header. This reduces exposure to live parts and keeps electrical hazards like short circuits at bay. The unit is the right choice for demanding conditions thanks to a wide operating temperature range between -40°C and +105°C.
Features & Benefits
• Phosphor bronze body is highly conductive to assure you of a reliable link
• Accommodates wire sizes from 24 to 20AWG, making it a versatile connection solution
• Accommodates wire sizes from 24 to 20AWG, making it a versatile connection solution
Applications
• Laptop and desktop computers
• Robotics and automation systems
• Machine building
• Robotics and automation systems
• Machine building
What's the benefit of a crimped connection?
A crimped connection is airtight, so dust and moisture are firmly locked out, assuring you of safe electrical signal transmission.
