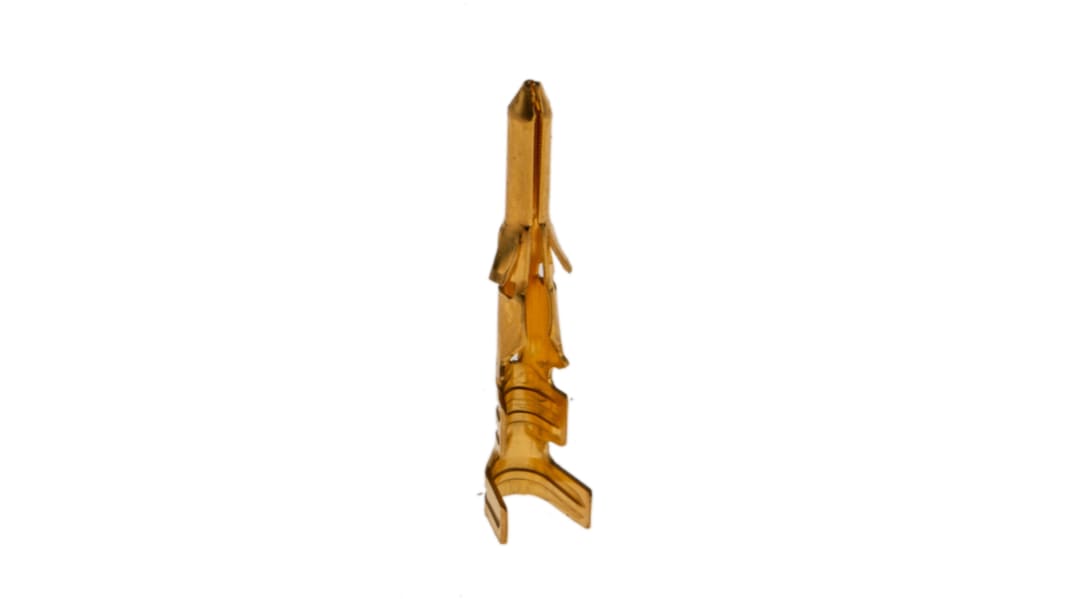

Molex STANDARD .062" Series Male Crimp Terminal, 24AWG Min, 18AWG Max
- RS Stock No.:
- 178-6907
- Mfr. Part No.:
- 02-06-6103
- Brand:
- Molex
Save 10% when you buy 6000 units
Subtotal (1 pack of 10 units)*
£9.93
(exc. VAT)
£11.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,470 unit(s) ready to ship
- Plus 220 unit(s) ready to ship from another location
- Plus 7,640 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 190 | £0.993 | £9.93 |
| 200 - 740 | £0.965 | £9.65 |
| 750 - 2990 | £0.939 | £9.39 |
| 3000 - 5990 | £0.915 | £9.15 |
| 6000 + | £0.891 | £8.91 |
*price indicative
- RS Stock No.:
- 178-6907
- Mfr. Part No.:
- 02-06-6103
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Male | |
| For Use With | STANDARD .062" Connector Housing | |
| Series | STANDARD .062" | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Termination Method | Crimp | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Material | Brass | |
| Maximum Wire Size AWG | 18AWG | |
| Series Number | 1560 | |
| Maximum Contact Resistance | 3.2mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Male | ||
For Use With STANDARD .062" Connector Housing | ||
Series STANDARD .062" | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Termination Method Crimp | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 24AWG | ||
Contact Material Brass | ||
Maximum Wire Size AWG 18AWG | ||
Series Number 1560 | ||
Maximum Contact Resistance 3.2mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- US
Molex Crimp Terminal, Gold Plating, 24 to 18AWG - 1560 Series - 02-06-6103
Use this crimp terminal from Molex to link cables for power and signal transmission on your PCBs. It's made of highly conductive brass with a low resistance of 3.2mΩ, so you can be certain of a reliable connection. Gold plating ensures the unit can resist corrosion to ensure long-term performance. As the crimp terminal can accommodate wire sizes ranging from 24 to 18AWG, it's a versatile choice to suit your design needs.
Features & Benefits
• Crimp termination method is simple and doesn't need complex tools, saving time and effort
• Low halogen construction for reduced emission of toxic fumes in the event of a fire
• Light weight of 0.127g for easy handling during installation
• Low halogen construction for reduced emission of toxic fumes in the event of a fire
• Light weight of 0.127g for easy handling during installation
Applications
• Telecommunications industry
• Commercial printers and scanners
• Commercial printers and scanners
Can I reuse this connector?
Yes, if you properly de-crimp it, you can use this connector on another PCB.
Molex 1625 Series (0.062in./1.57mm)
A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.
