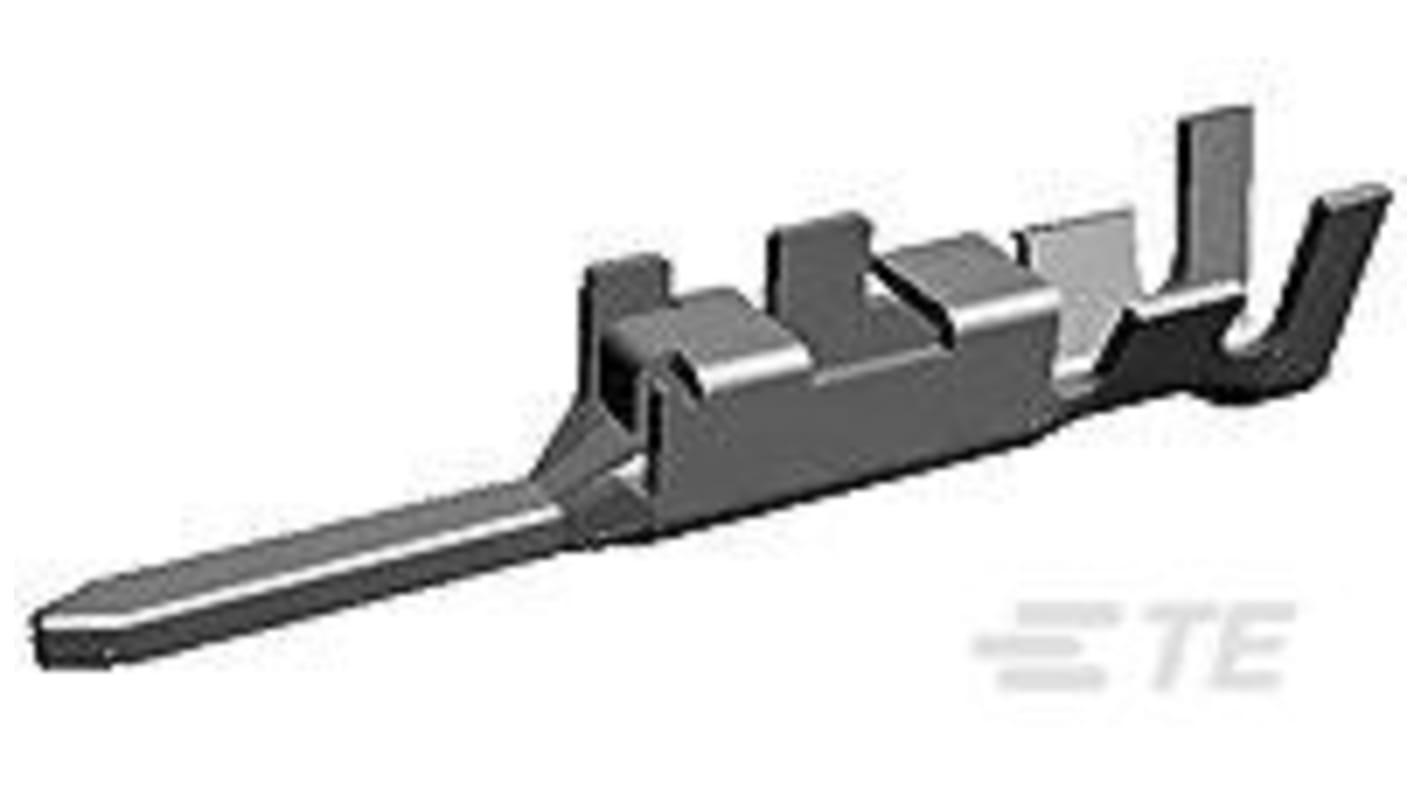

TE Connectivity Dynamic 5000 Series Male Crimp Terminal, 12AWG Min, 10AWG Max
- RS Stock No.:
- 174-3183
- Mfr. Part No.:
- 2013593-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 500 units)*
£1,071.50
(exc. VAT)
£1,286.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,500 unit(s) shipping from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 500 + | £2.143 | £1,071.50 |
*price indicative
- RS Stock No.:
- 174-3183
- Mfr. Part No.:
- 2013593-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Male | |
| For Use With | Receptacle (Socket) Contact | |
| Series | Dynamic 5000 | |
| Minimum Wire Size mm² | 3.08mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 5.5mm² | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 12AWG | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 10AWG | |
| Series Number | 5000 | |
| Maximum Contact Resistance | 2mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Male | ||
For Use With Receptacle (Socket) Contact | ||
Series Dynamic 5000 | ||
Minimum Wire Size mm² 3.08mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 5.5mm² | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 12AWG | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 10AWG | ||
Series Number 5000 | ||
Maximum Contact Resistance 2mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- JP
The Dynamic 5000 series was developed for up to 45 amperes in response to the demand for improved reliability and productivity for the main power lines in Equipment. They can be used for a variety of applications as replacements for terminal blocks, or round terminals. It is compact but with a high current capacity. In addition, it has a wide variety of housings to cover all applications from PCB to internal wiring distributions.
High Current Contact
The D-5000 series uses the same 'twis-resistant' box shape contact as the rest of the Dynamic series contacts. The material is the same copper alloy developed for the D-3000 series with its superior elasticity and conductivity, which results in a reliable, robust contact capable of high current. Silver plating is also available for high amperage applications.
The Sequential Mating means that the build up of static charge in the sequential contact is grounded first at mating.
The D-5000 series uses the same 'twis-resistant' box shape contact as the rest of the Dynamic series contacts. The material is the same copper alloy developed for the D-3000 series with its superior elasticity and conductivity, which results in a reliable, robust contact capable of high current. Silver plating is also available for high amperage applications.
The Sequential Mating means that the build up of static charge in the sequential contact is grounded first at mating.
