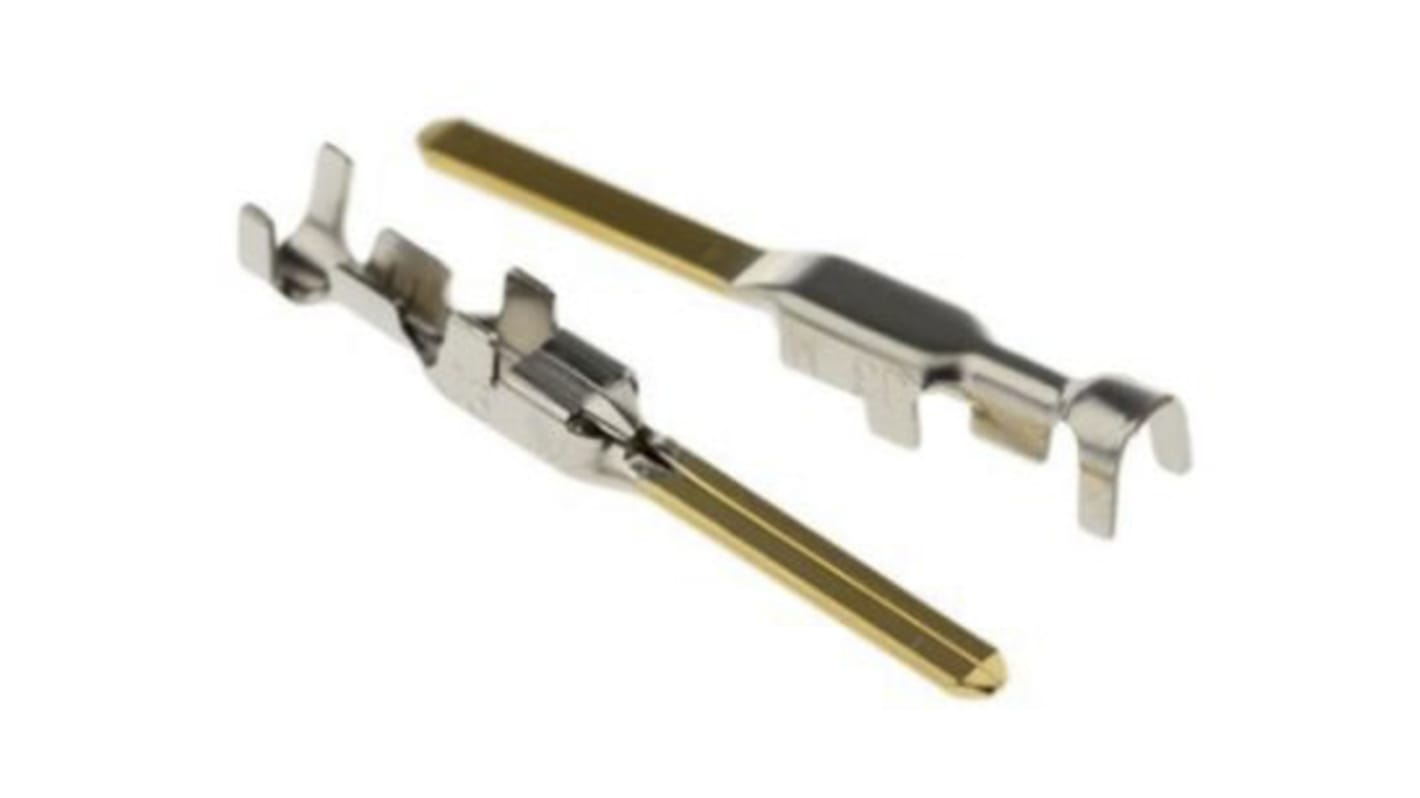

JST F3 Series Male Crimp Terminal, 20AWG Min, 16AWG Max

View all Crimp Contacts
Bulk discount available

Subtotal (1 pack of 50 units)*

£26.40

(exc. VAT)

£31.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 - 50£0.528£26.40
100 - 200£0.482£24.10
250 - 450£0.458£22.90
500 - 1200£0.441£22.05
1250 +£0.43£21.50

*price indicative

RS Stock No.:
161-3353
Distrelec Article No.:
304-24-035
Mfr. Part No.:
LF3M-41GF-M2.0N
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Gender

Male

For Use With

J300 JFA Connector Housing

Series

F3

Minimum Wire Size mm²

0.5mm²

Termination Method

Crimp

Maximum Wire Size mm²

1.25mm²

Contact Plating

Gold, Nickel

Minimum Wire Size AWG

20AWG

Maximum Wire Size AWG

16AWG

Contact Material

Copper Alloy

Maximum Contact Resistance

5 mΩ, 10 mΩ

Maximum Current

14A

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+105°C

COO (Country of Origin):
JP
Available in both wire-to-board and wire-to-wire connection, the JFA connector is applicable to a wide range of applications e.g. from signal to output circuits.

Double-spring construction
Housing Lances
Clear Click Feeling
