TE Connectivity CST-100 II Series Female Crimp Terminal, 26AWG Min, 22AWG Max
- RS Stock No.:
- 135-5088
- Mfr. Part No.:
- 1375819-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 5500 units)*
£143.00
(exc. VAT)
£170.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22,000 unit(s) ready to ship
- Plus 22,000 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5500 + | £0.026 | £143.00 |
*price indicative
- RS Stock No.:
- 135-5088
- Mfr. Part No.:
- 1375819-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| For Use With | CST-100 II Connector Housing | |
| Series | CST-100 II | |
| Minimum Wire Size mm² | 0.1mm² | |
| Maximum Wire Size mm² | 0.35mm² | |
| Termination Method | Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 26AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 22AWG | |
| Maximum Contact Resistance | 6mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
For Use With CST-100 II Connector Housing | ||
Series CST-100 II | ||
Minimum Wire Size mm² 0.1mm² | ||
Maximum Wire Size mm² 0.35mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 26AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 22AWG | ||
Maximum Contact Resistance 6mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||

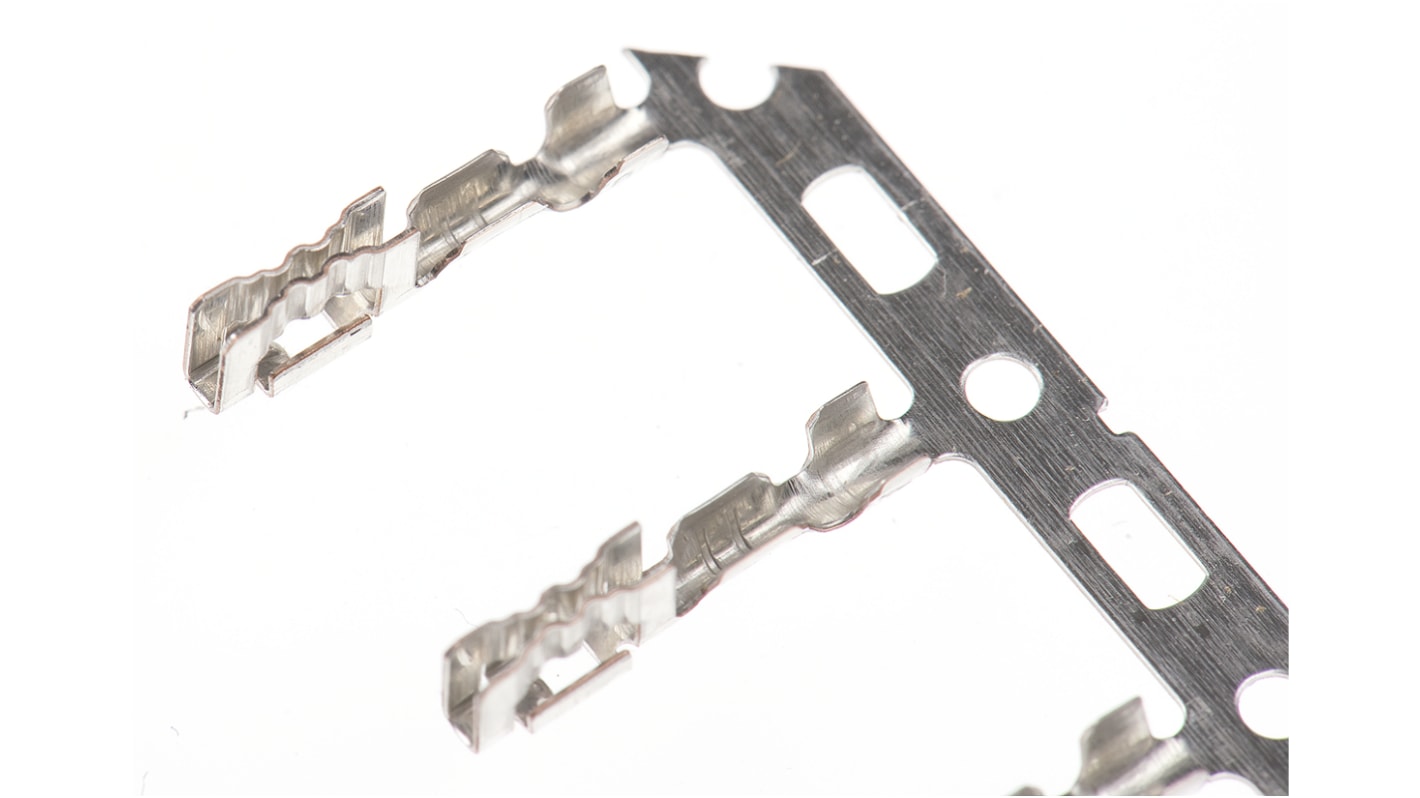

TE Connectivity CST-100 II Crimp Contacts
CST-100 II crimp contacts with tin or gold plating.
For Crimp Tool see stock number 782-9123 .
For Crimp Tool see stock number 782-9123 .
